- Number of axes : 5
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 12 [mm]
- Max. machining length : 135 [mm]
- Spindle speeds : 12.000 [rpm]
- Spindle power : 2.2 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 12 [mm]
- Z stroke : 120 [mm]
- Spindle speeds : 7000 [rpm]
GUIDE BUSH HOLDER 1
- Number of positions : 5
- Number of motorized positions : 2
END ATTACHMENT
- Number of positions : 3
SECONDARY OPERATION
- Number of positions : 3
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 1500 X 770 [mm]
- Machine weight : 1400 [kg]
MACHINE HOURS
- Number of working hours : 22.665 [h]
Equipment

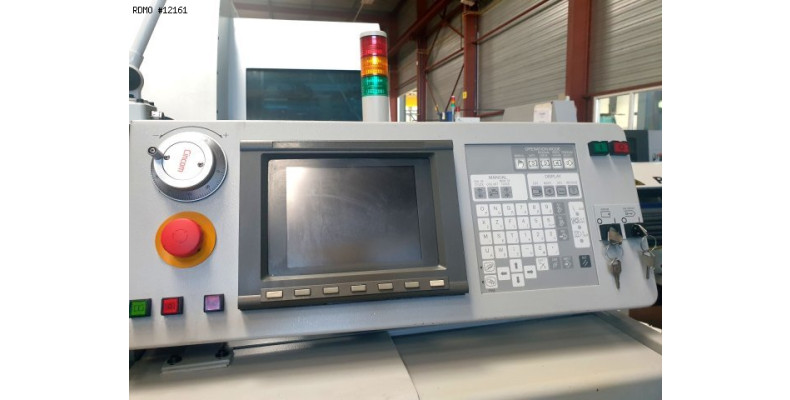

- CNC : Fanuc
- 3 colors status lamp
- Rotating guide bush
- Parts catcher
- Ejection of workpiece
- Coolant tank

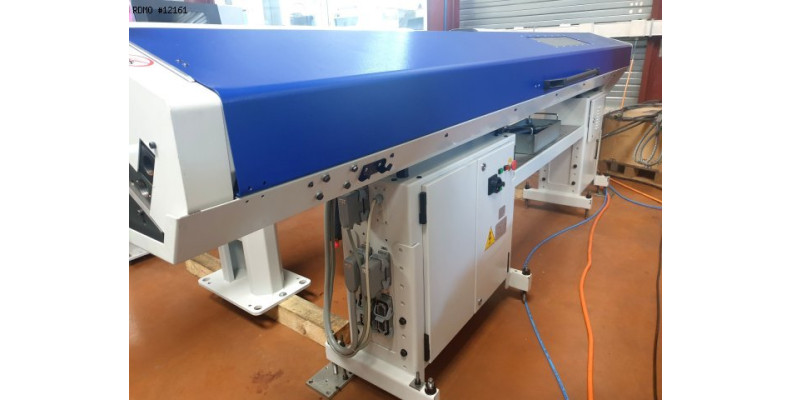

- Bar loader : IEMCA GENIUS 112/32
- Electric transformer

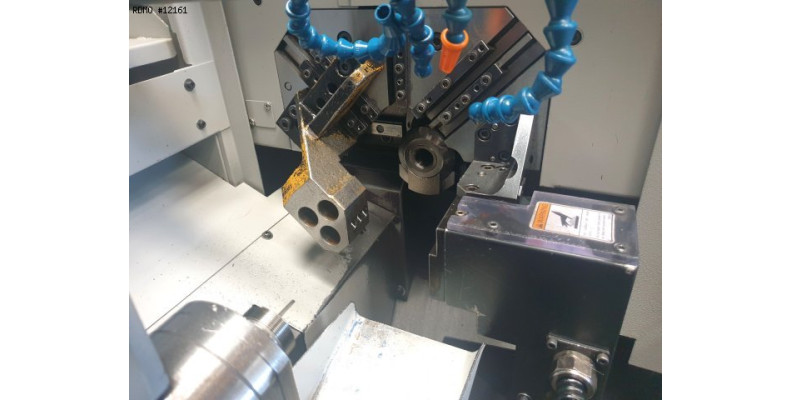

- Number of turning tool holders : 2
This machine tool is sold. We offer equivalent models at the bottom of page.
