- Number of axes : 7
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 12 [mm]
- Max. machining length : 135 [mm]
- Spindle speeds : 15.000 [rpm]
- Spindle power : 2.2/3.7 [kW]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 10.000 [rpm]
- Spindle power : 0.4/0.75 [kW]
- C axis indexing precision : 0,001 [°]
GUIDE BUSH HOLDER 1
- Number of positions : 10
- Number of motorized positions : 4
- Live tools speed : 10000 [rpm]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 4
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 6.1 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 1760 X 820 [mm]
- Machine height : 1610 [mm]
- Machine weight : 1700 [kg]
MACHINE HOURS
- Number of hours under power : 35352 [h]
- Number of hours under power : 12806 [h]
Equipment
- CNC : Mitsubishi
- 3 colors status lamp
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece
- Chips conveyor
- Coolant tank : Müller Combiloop CL2
* with high-pressure pump : 80 [bars]

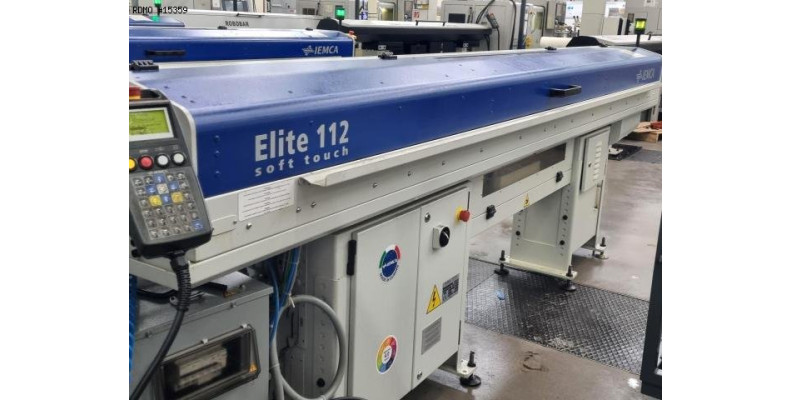

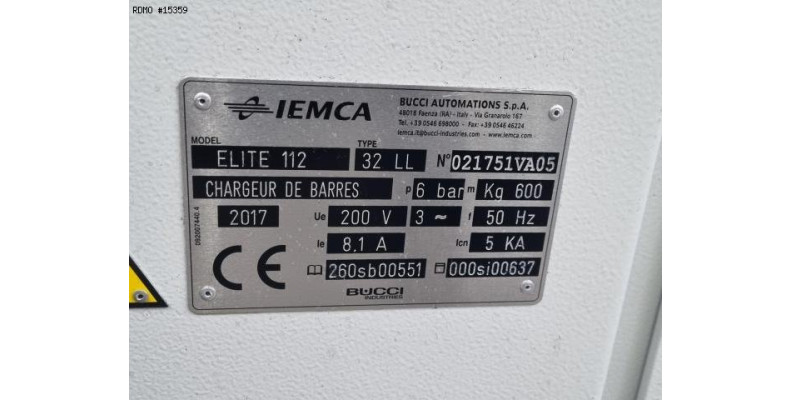

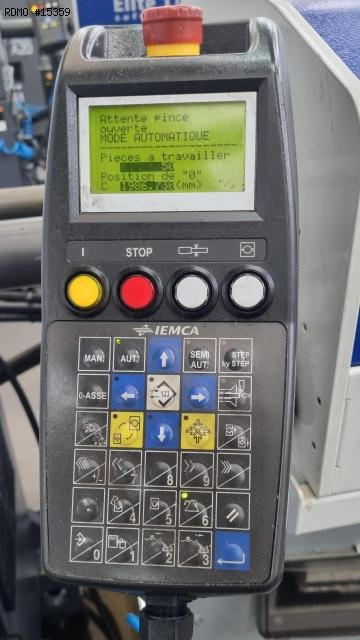

- Bar loader : IEMCA ELITE 112/32 LL
- Fire extinguisher *
* NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
- Electric transformer
