DMG MORI SPRINT 20/5 7 axis

- Number of axes : 7
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Max. machining length : 180 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 2.2 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 1.5 [kW]
- C axis indexing precision : 0.001 [°]
GUIDE BUSH HOLDER 1
- Number of positions : 9
- Number of motorized positions : 4
- Live tools speed : 6000 [rpm]
- X/Y stroke : 50/325 [mm]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 4
POWER SUPPLY
- Supply voltage : 400 [V]

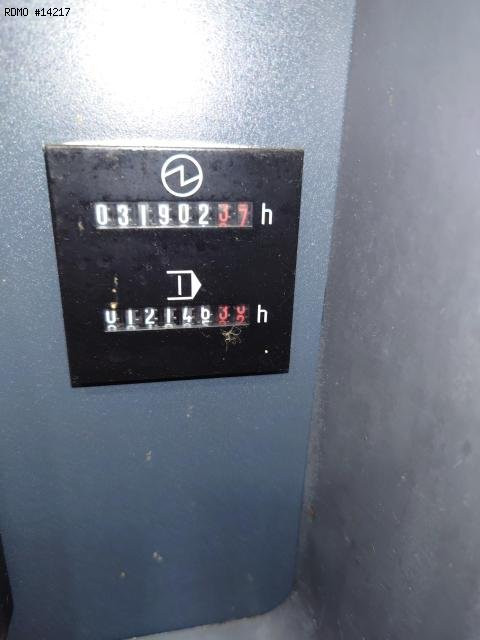

MACHINE HOURS
- Number of hours under power : 31902 [h]
- Number of spindle hours : 12146 [h]

- CNC : Fanuc 32-iB
- Interface : USB
- Parts catcher
- Parts conveying strip
- Ejection of workpiece
- Chips conveyor
- Coolant tank
* with high-pressure pump
* with paper filtering unit
- Bar loader : IEMCA 338-HD
- Cooling unit
- Electric transformer
- Number of turning tool holders : 3
