STAR SR-32JII typeB 8 axis

Name: Swiss-type cnc lathe STAR SR-32JII typeB 8 axes
Brand: STAR
Availability: InStock

Turning Swiss-type cnc lathe

15410

PDF datasheet to download:

Brand: STAR

Model: SR-32JII typeB

Year: 2017

Serial: 0186 (025)

15410

STAR SR-32JII typeB 8 axis

Turning Swiss-type cnc lathe

PDF datasheet to download:

Brand: STAR

Model: SR-32JII typeB

Year: 2017

Serial: 0186 (025)

Ask Price

Caracteristics

- Number of axes : 7
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 32 [mm]
- Travel : 310 [mm]
- Spindle speeds : 7.000 [rpm]
- Spindle power : 7,5 [kW]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 32 [mm]
- Spindle speeds : 7.000 [rpm]
- Spindle power : 3,7 [kW]
- C axis indexing precision : 0,001 [°]
GUIDE BUSH HOLDER 1
- Number of positions : 11
- Number of motorized positions : 5
- Live tools speed : 5.000 [rpm]
- Live tools power : 1,2 [kW]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 4
- Number of motorized positions : 4
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 6,2 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.711 x 1.275 [mm]
- Machine height : 1.705 [mm]
- Machine weight : 3.100 [kg]
MACHINE HOURS
- Number of hours under power : 20549 [h]
- Number of working hours : 12086 [h]

Equipment

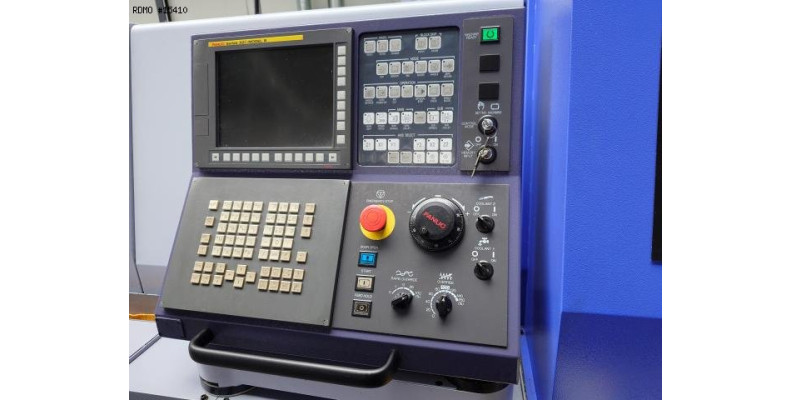

- CNC : Fanuc 32i-MODEL B
- Interface : PCMCIA / USB / RJ45 / RS232
- 3 colors status lamp
- Rotating guide bush
- Coolant tank
* with high-pressure pump : COMBILOOP CL2 [bars]
- Bar loader : FMB turbo 3-36/3200 "A"
- Ejection of workpiece
- Parts catcher
- Parts conveying strip
- Chips conveyor : MAYFRAN MT10
- Electric transformer
