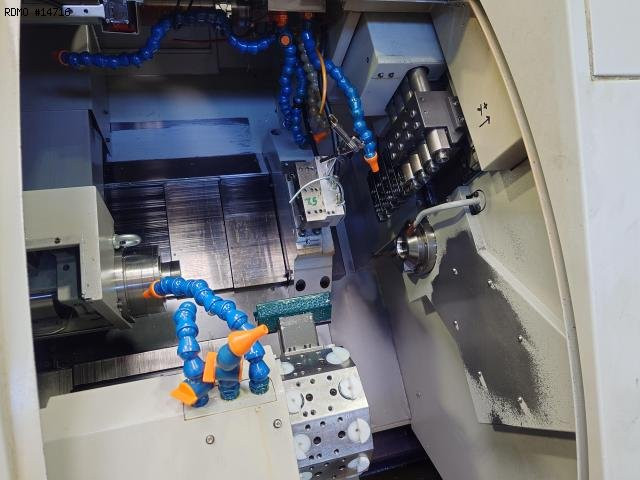

- Number of axes : 9
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 32 [mm]
- Max. machining length : 320 [mm]
- Travel : 325 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 3.7/7.5 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 32 [mm]
- Z stroke : 410 [mm]
- X stroke : 238 [mm]
- Spindle speeds : 7000 [rpm]
- Spindle power : 1.5/3.7 [kW]
- C axis indexing precision : 0.001 [°]
- Number of turrets : 1
LOWER TURRET
- Number of positions : 20
- Number of motorized positions : 10
- X/Z stroke : 120/202 [mm]
- Y stroke : 44 [mm]
- Live tools speed : 5000 [rpm]
GUIDE BUSH HOLDER 1
- Number of positions : 9
- Number of motorized positions : 4
- Live tools speed : 5000 [rpm]
- X/Y stroke : 108/275 [mm]
SECONDARY OPERATION
- Number of positions : 3
POWER SUPPLY
- Supply voltage : 380 [V]
- Total installed power : 10 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2805 x1370 [mm]
- Machine height : 1370 [mm]
- Machine weight : 3200 [kg]
Equipment
- CNC : Mitsubishi MELDAS M635
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Chips conveyor
- Coolant tank
- Bar loader : IEMCA BOSS 332-E-R
