TORNOS EVODECO 10a 10 axis

- Number of axes : 10
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 10 [mm]
- Max. machining length : 100 [mm]
- Spindle speeds : 14000 [rpm]
- Spindle power : 10.1 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 10 [mm]
- Spindle speeds : 14000 [rpm]
- Spindle power : 7 [kW]
- C axis indexing precision : 0.001 [°]
GUIDE BUSH HOLDER 1
- Number of positions : 8
GUIDE BUSH HOLDER 2
- Number of positions : 8
- Number of motorized positions : 4
- Live tools speed : 12000 [rpm]
END ATTACHMENT
- Number of positions : 3
- Number of motorized positions : 3
- Live tools speed : 12000 [rpm]
SECONDARY OPERATION
- Number of positions : 4
- Number of motorized positions : 4
- Live tools speed : 9000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 1850X1140 [mm]
- Machine height : 1800 [mm]
- Machine weight : 1650 [kg]
MACHINE HOURS

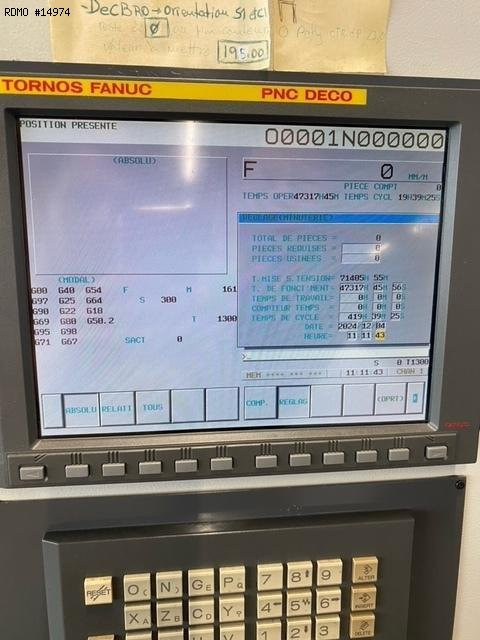

- Number of working hours : 47317 [h]

- CNC : Fanuc 31i-B5
- Interface : Ethernet / RS232 / USB / PCMCIA
- 3 colors status lamp
- Rotating tool motor on : S2,S3,S5
- Rotating guide bush
- Parts catcher
- Ejection of workpiece
- Coolant tank
* with high-pressure pump : HP MÜLLER CL2 80 [bars]
- Bar loader : IEMCA ELITE 112/33
- Oil mist extractor : ELBARON
- Fire extinguisher *
NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
