- Number of axes : 4
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 12 [mm]
- Travel : 140 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 12 [mm]
- Z stroke : 140 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 1 [kW]

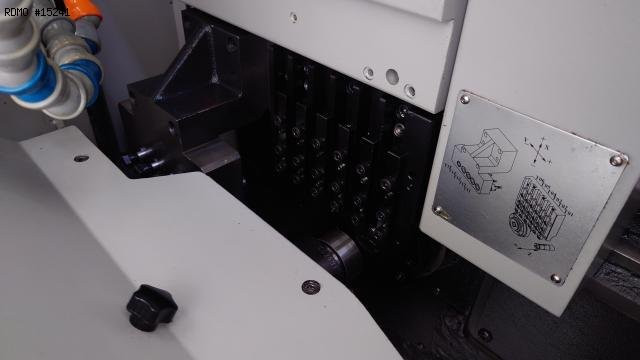

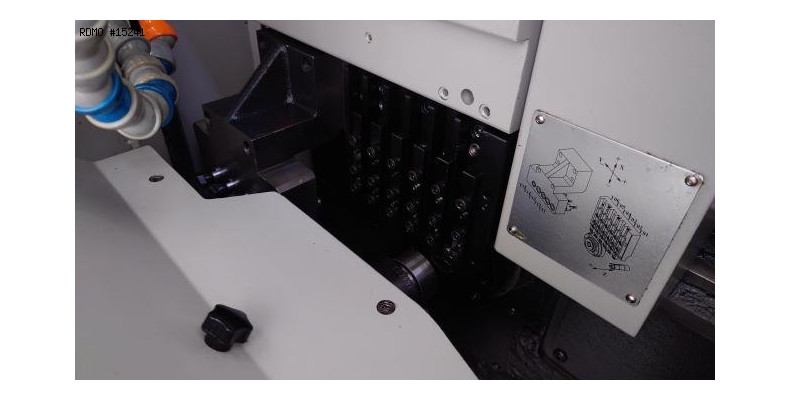

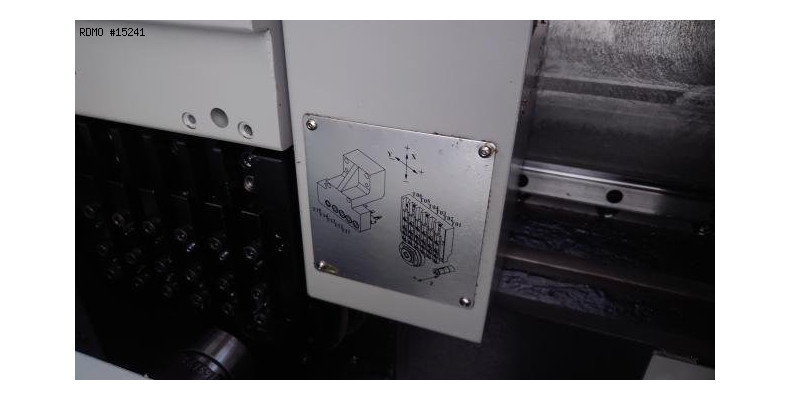

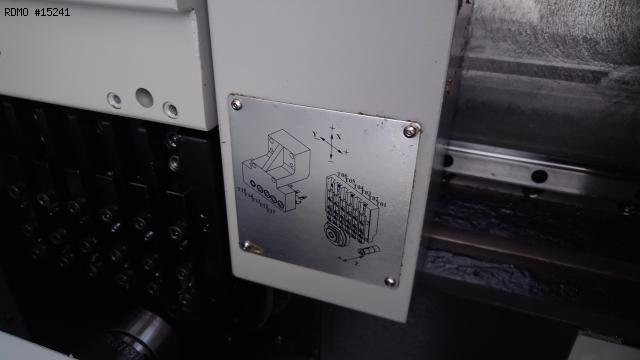

GUIDE BUSH HOLDER 1
- Number of positions : 9
- Number of motorized positions : 3
- Live tools speed : 5000 [rpm]
- X/Y stroke : 50/272 [mm]
SECONDARY OPERATION
- Number of positions : 3
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 10 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 1740x1000 [mm]
- Machine height : 1640 [mm]
- Machine weight : 1700 [kg]
MACHINE HOURS
- Number of hours under power : 29980 [h]
- Number of working hours : 6798 [h]
Equipment

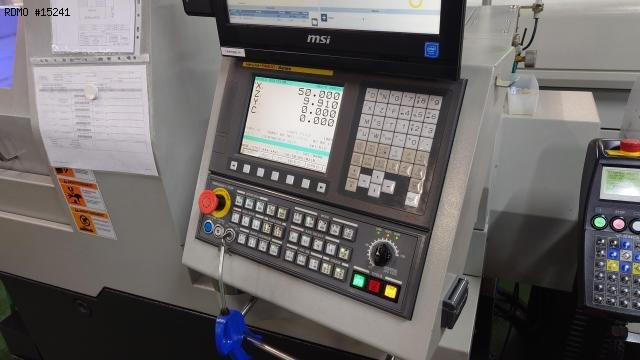

- CNC : Fanuc i
- 3 colors status lamp
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Coolant tank : 120 [l]
- Bar loader : Iemca Elite 112 R
