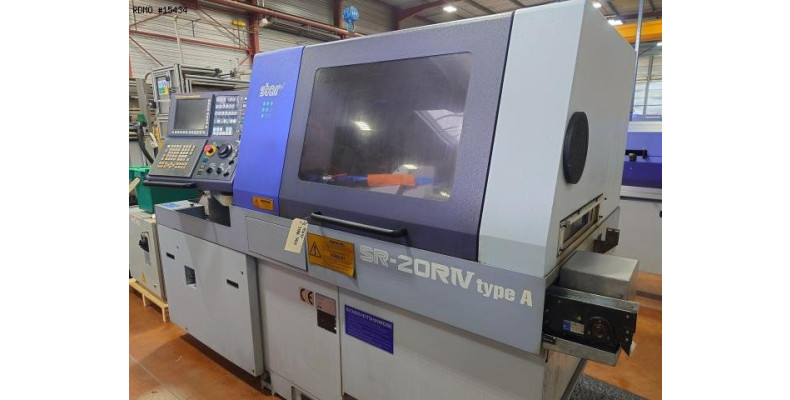

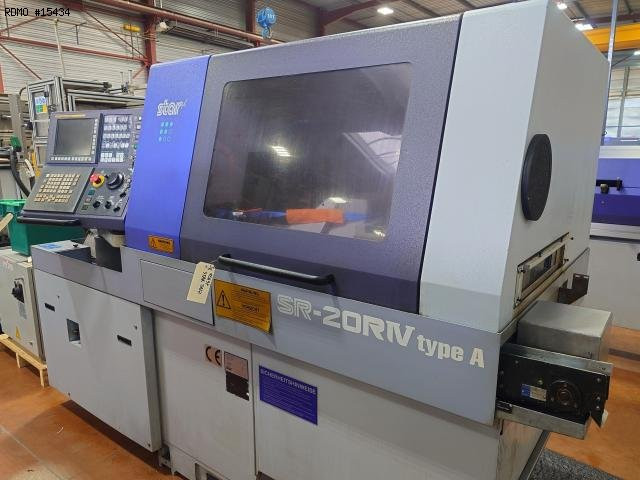

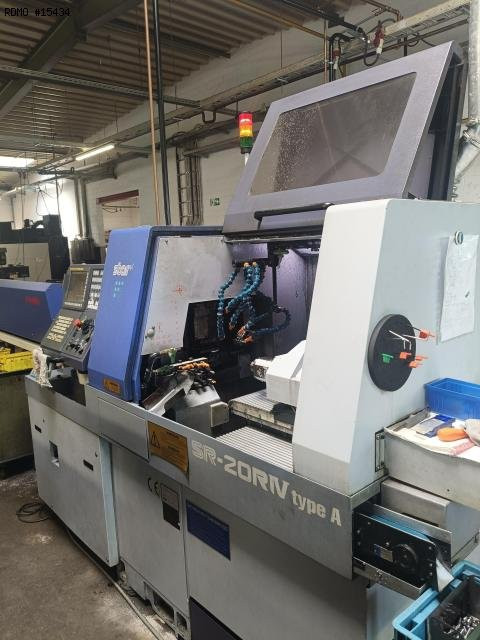

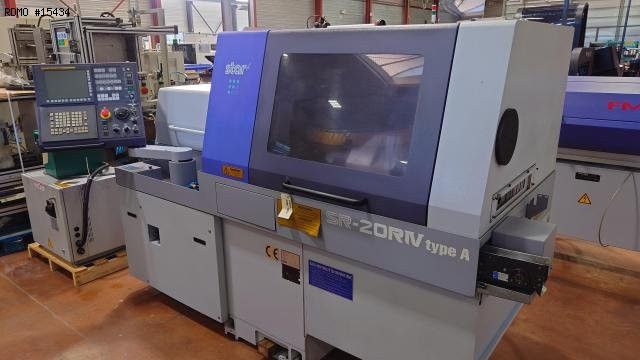

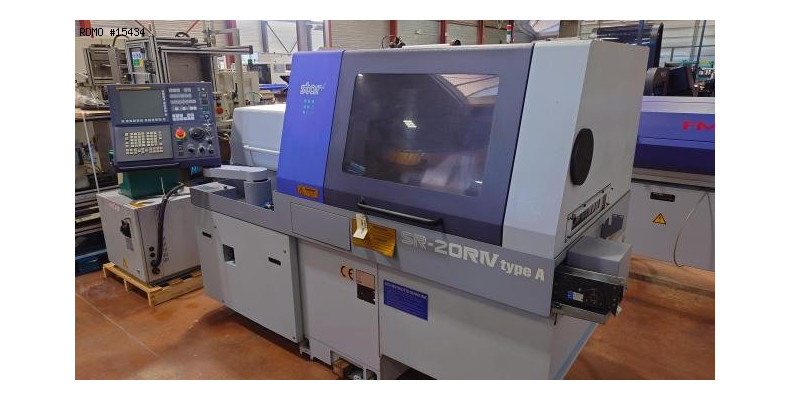

STAR SR-20RIV typeA 8 axis

- Number of axes : 8
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Max. machining length : 205 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 1 [°]
- Number of guide bush holders : 1

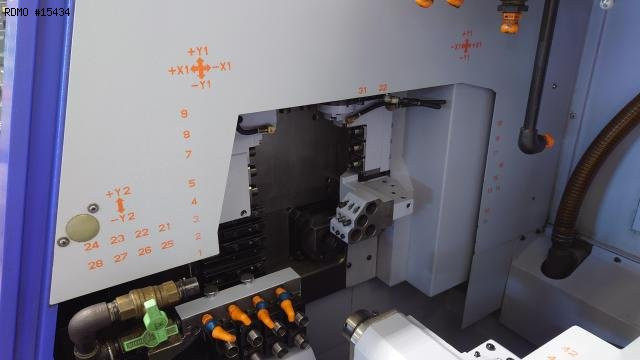

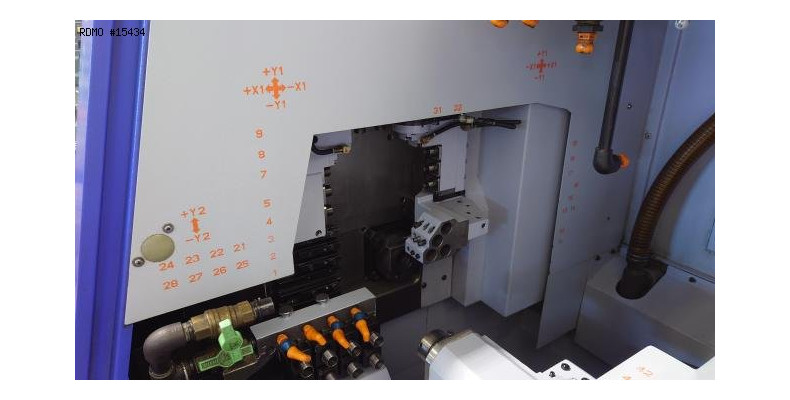

GUIDE BUSH HOLDER 1
- Number of positions : 12
- Number of motorized positions : 8
- Live tools speed : 7000 [rpm]
END ATTACHMENT
- Number of positions : 7
SECONDARY OPERATION
- Number of positions : 8
- Number of motorized positions : 8
- Live tools speed : 8000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 7 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 2334 x 1200 [mm]
- Machine height : 1700 [mm]
- Machine weight : 2600 [kg]
MACHINE HOURS
- Number of hours under power : 57342 [h]
- Number of working hours : 31575 [h]
- Number of spindle hours : 24829 [h]

- CNC : Fanuc 31i-B
- Rotating guide bush
- Chips conveyor
- Parts catcher
- Parts conveying strip
- Ejection of workpiece
- Coolant tank

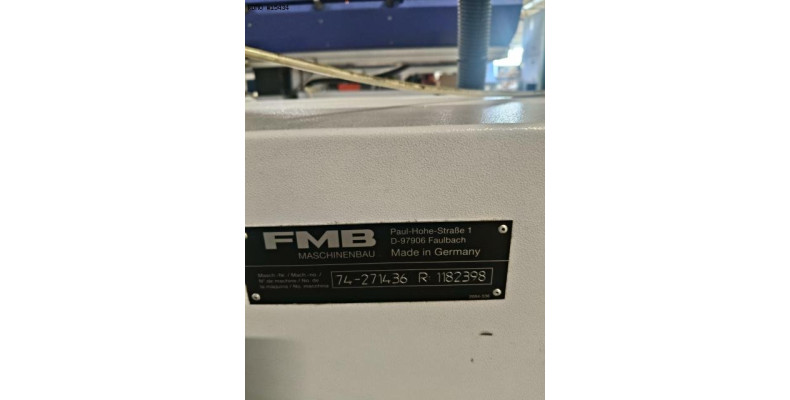

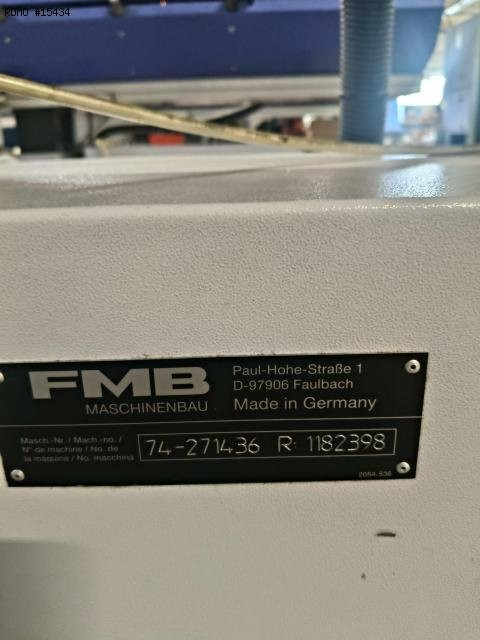

- Bar loader : FMB turbo 3-26
- Electric transformer
