- Number of axes : 7
- Number of spindles : 2

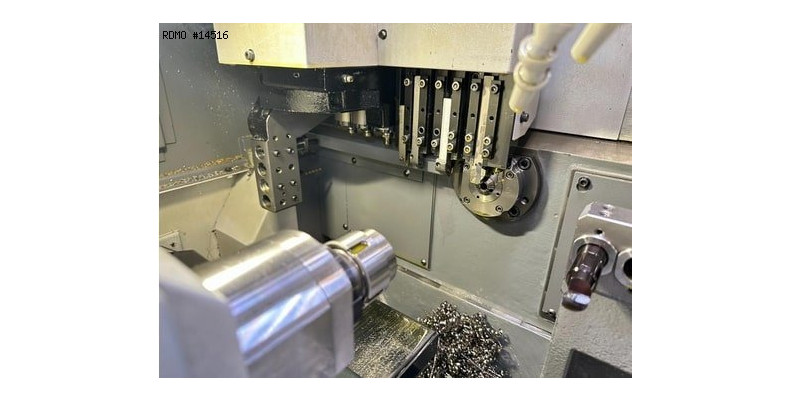

MAIN SPINDLE
- Max. bar diameter : 12 [mm]
- Max. machining length : 135 [mm]
- Spindle speeds : 15.000 [rpm]
- Spindle power : 2.2/3.7 [kW]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 10.000 [rpm]
- Spindle power : 0.4/0.75 [kW]
- C axis indexing precision : 0,001 [°]

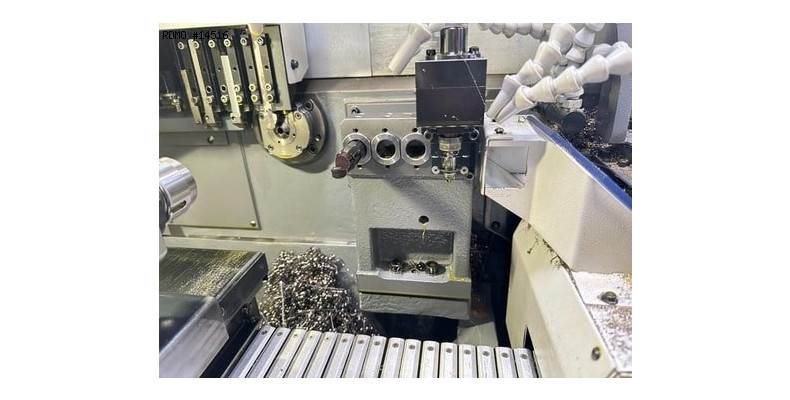

GUIDE BUSH HOLDER 1
- Number of positions : 6
- Number of motorized positions : 3
- Live tools speed : 10000 [rpm]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 4
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 6.1 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 1760 X 820 [mm]
- Machine height : 1610 [mm]
- Machine weight : 1700 [kg]

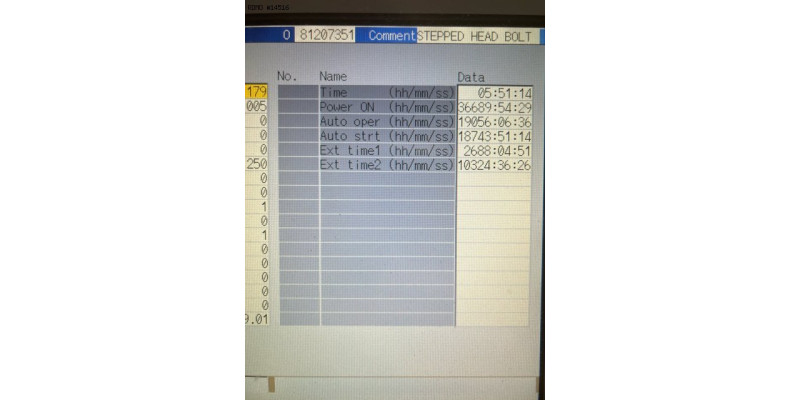

MACHINE HOURS
- Number of hours under power : 36690 [h]
- Number of working hours : 19056 [h]
Equipment

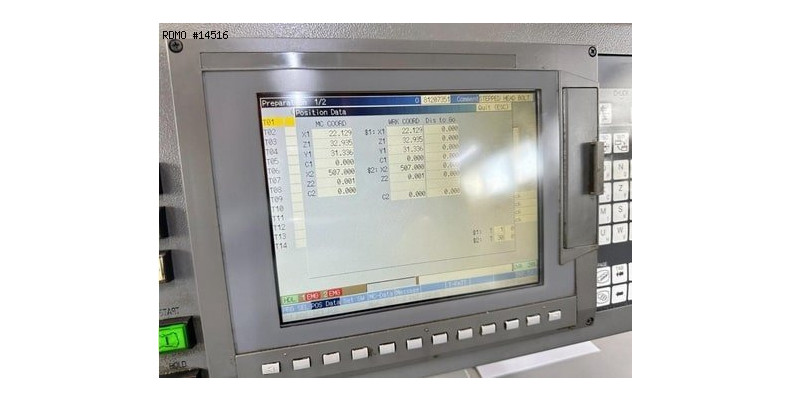

- CNC : Mitsubishi
- Rotating guide bush

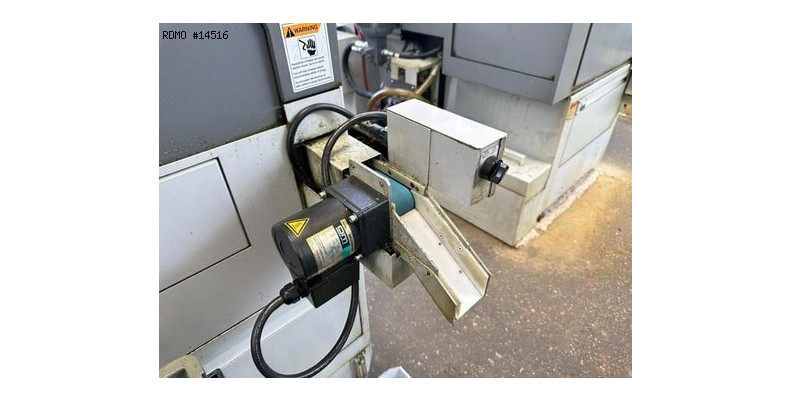

- Parts catcher
- Parts conveying strip
- Ejection of workpiece
- Coolant tank

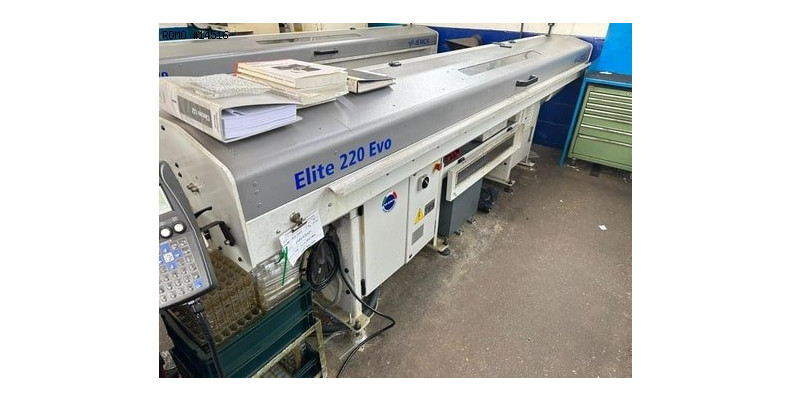

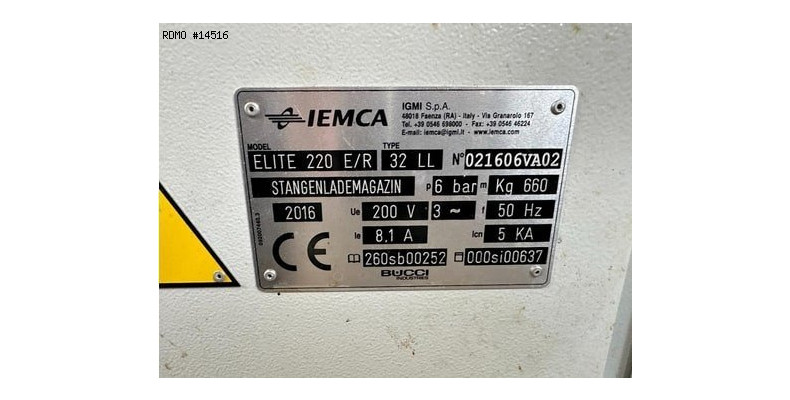

- Bar loader : IEMCA ELITE 220 EVO
- Oil mist extractor : Cool Blaster Mist Control 850
- Electric transformer
