- Number of axes : 7
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 25.4 [mm]
- Max. machining length : 195 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 8.2 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 25.4 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 8.2 [kW]
- C axis indexing precision : 0.001 [°]
GUIDE BUSH HOLDER 1
- Number of positions : 9
- Number of motorized positions : 4
- Live tools speed : 5000 [rpm]
GUIDE BUSH HOLDER 2
- Number of positions : 8
SECONDARY OPERATION
- Number of positions : 8
- Number of motorized positions : 4
- Live tools speed : 7500 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 2.912 x 1.300 [mm]
- Machine height : 1.720 [mm]
- Machine weight : 2.400 [kg]
MACHINE HOURS
- Number of working hours : 27598 [h]
Equipment

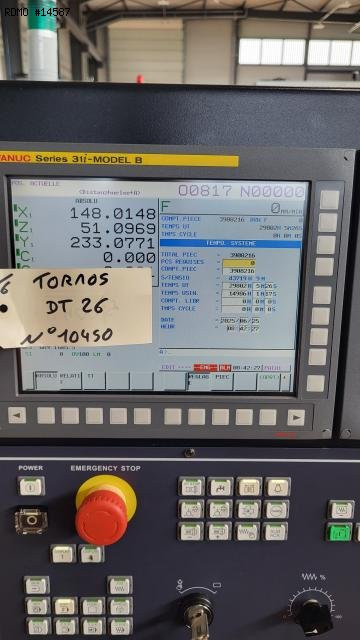

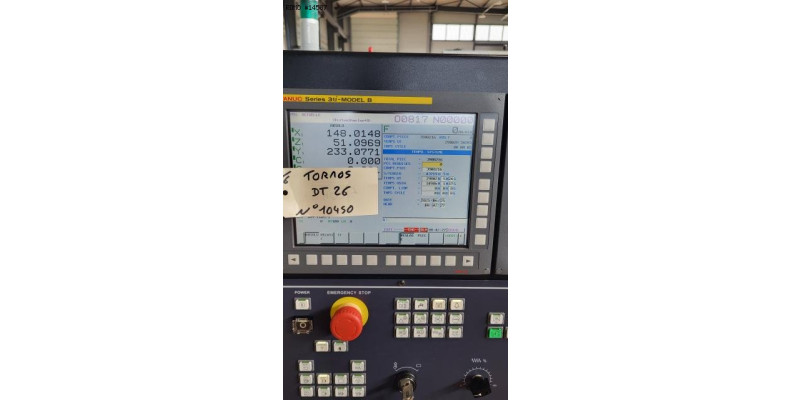

- CNC : Fanuc 31i-B
- 3 colors status lamp
- Rotating tool motor on : S11, S51
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece
- Chips conveyor

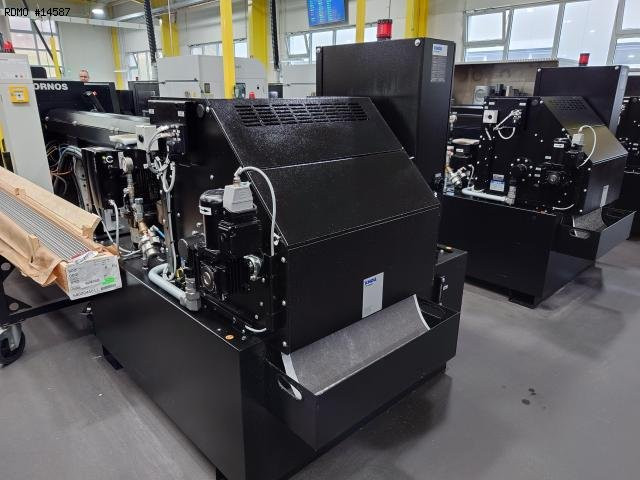

- Coolant tank : KNOLL KF 200/1200
* with high-pressure pump
- Bar loader : Tornos Robobar SBF 326
- Fire extinguisher *
NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
