- Number of axes : 7
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 2.2/3.7 [kW]
- C axis indexing precision : 0.0001 [°]
COUNTER-SPINDLE
- Z stroke : 205 [mm]
- Spindle speeds : 9000 [rpm]
- Spindle power : 0.55/1.1 [kW]
- C axis indexing precision : 0.0001 [°]
GUIDE BUSH HOLDER 1
- Number of positions : 8
- Number of motorized positions : 2
- Live tools speed : 6000 [rpm]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 8
- Number of motorized positions : 4
- Live tools speed : 6000 [rpm]
POWER SUPPLY
- Supply voltage : 380 [V]
- Total installed power : 3.7 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2070x1177 [mm]
- Machine height : 1760 [mm]
- Machine weight : 1700 [kg]
MACHINE HOURS
- Number of hours under power : 35938 [h]
- Number of working hours : 26599 [h]
- Number of spindle hours : 4871 [h]
Equipment
- CNC : Fanuc series Oi-TD
- 3 colors status lamp
- Rotating guide bush

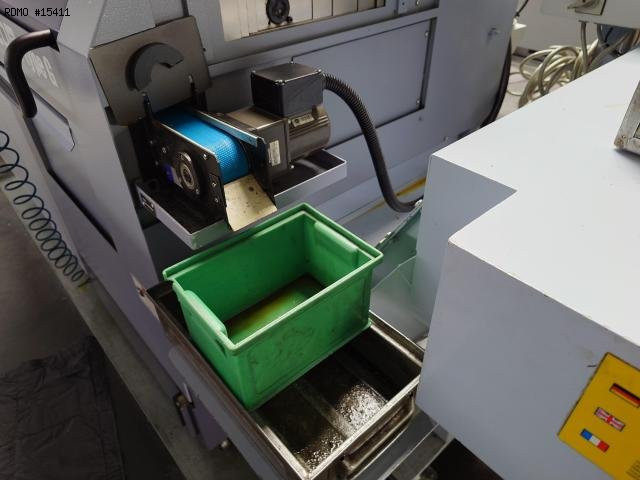

- Parts conveying strip
- Chips conveyor
- Coolant tank : 170 [l]

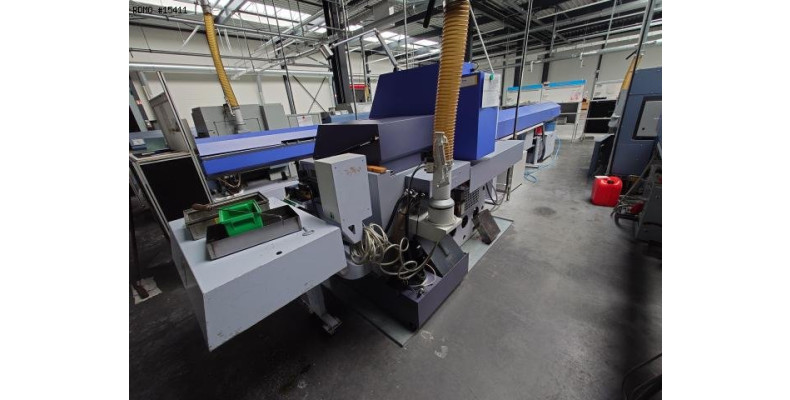

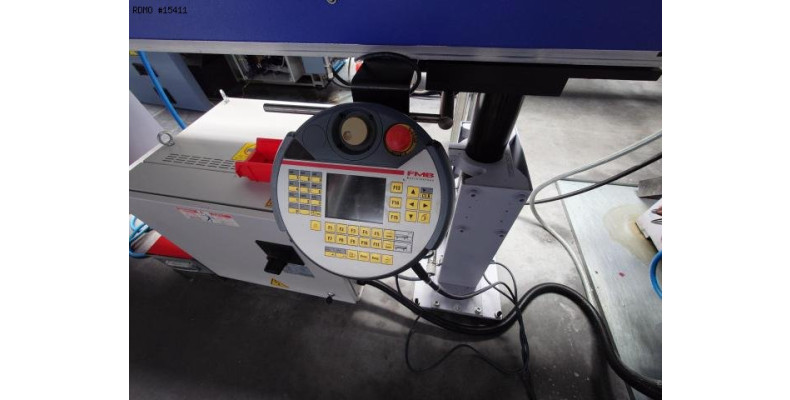

- Bar loader : FMB turbo2-20/3200 "A"
