- Number of axes : 10
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 32 [mm]
- Travel : 240 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 7.5 [kW]
- C axis indexing precision : 0.1 [°]
COUNTER-SPINDLE
- Max. bar diameter : 32 [mm]
- Spindle speeds : 6000 [rpm]
GUIDE BUSH HOLDER 1
- Number of positions : 5
GUIDE BUSH HOLDER 2
- Number of positions : 5
- Number of motorized positions : 4
- Live tools speed : 6000 [rpm]
END ATTACHMENT
- Number of positions : 4
- Number of motorized positions : 4
- Live tools speed : 6000 [rpm]
SECONDARY OPERATION
- Number of positions : 7
- Number of motorized positions : 3
- Live tools speed : 6000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
MACHINE HOURS
- Number of working hours : 56.433 [h]
Equipment
- CNC : Fanuc
- Rotating tool motor on : S2,S3,S5 V+H
- Rotating guide bush
- Parts catcher
- Ejection of workpiece

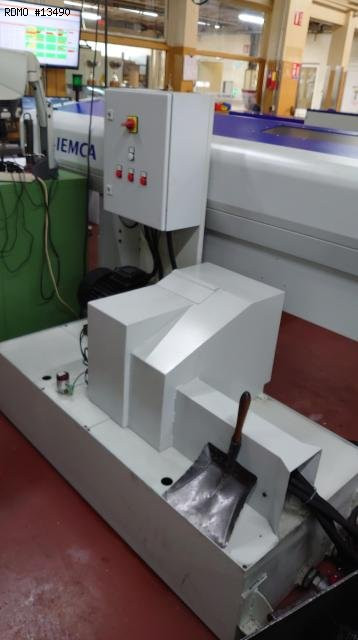

- Chips conveyor
- Coolant tank
* with high-pressure pump
- Number of turning tool holders : 3
- Number of fixed tool holders : 7
