- Number of axes : 7
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Travel : 205 ( sans canon tournant) [mm]
- Travel : 155 ( avec canon tournant) [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 9000 [rpm]
- C axis indexing precision : 0.001 [°]
- Number of guide bush holders : 1
GUIDE BUSH HOLDER 1
- Number of positions : 8
- Number of motorized positions : 3
- Live tools speed : 7500 [rpm]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 4
- Number of motorized positions : 4
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 1900 x1100 [mm]
- Machine height : 1800 [mm]
- Machine weight : 1700 [kg]
MACHINE HOURS
- Number of hours under power : 53028 [h]
- Number of working hours : 42918 [h]
- Number of spindle hours : 22615 [h]
Equipment
- CNC : Fanuc Oi-TD
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece
- Chips conveyor
- Coolant tank

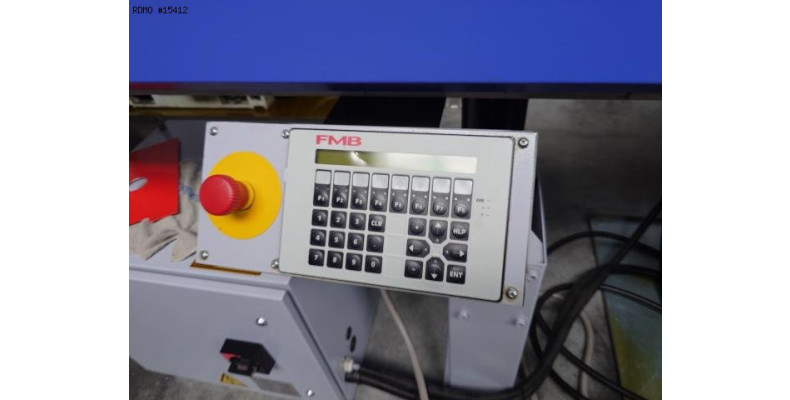

- Bar loader : FMB turbo2-20/3200 "A"
