- Number of axes : 9
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 32 [mm]
- Travel : 310 [mm]
- Spindle speeds : 280 - 7.000 [rpm]
- Spindle power : 7,5 [kW]
- C axis indexing precision : 0,01 [°]

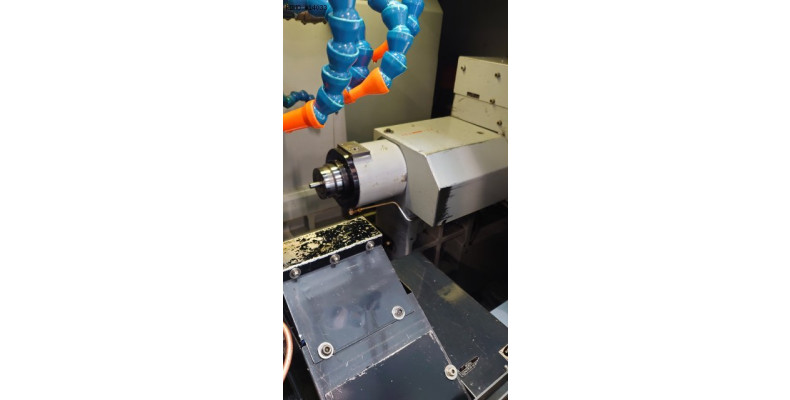

COUNTER-SPINDLE
- Max. bar diameter : 32 [mm]
- Z stroke : 150 [mm]
- Spindle speeds : 280 - 7.000 [rpm]
- Spindle power : 3,7 [kW]
- C axis indexing precision : 0,01 [°]
- Number of turrets : 1

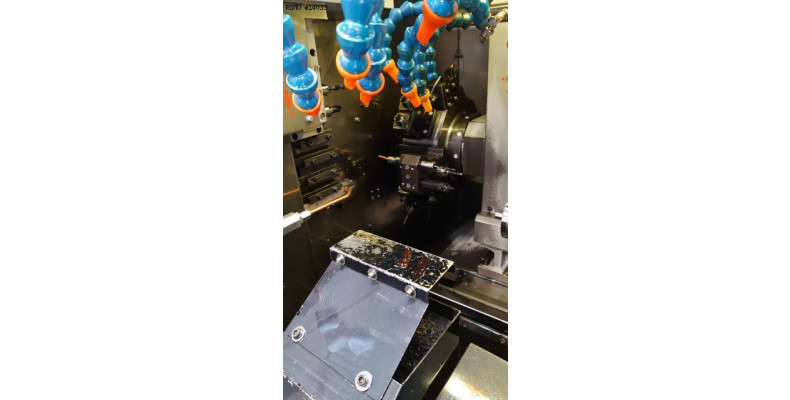

UPPER TURRET
- Number of positions : 10
- Number of motorized positions : 10
- Live tools speed : 5.700 [rpm]
- Live tools power : 2,8 [kW]
GUIDE BUSH HOLDER 1
- Number of positions : 4
- Number of motorized positions : 3
- Live tools speed : 6.000 [rpm]
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 8 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.645 x 1.403 [mm]
- Machine height : 1.680 [mm]
- Machine weight : 3.880 [kg]
Equipment

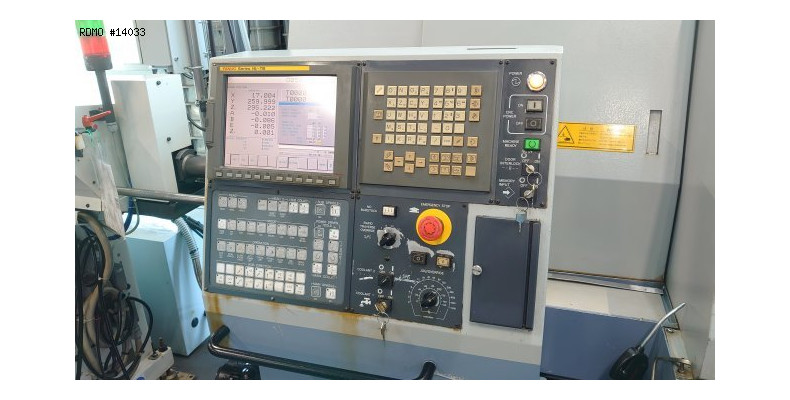

- CNC : Fanuc 16 iTB
- 3 colors status lamp

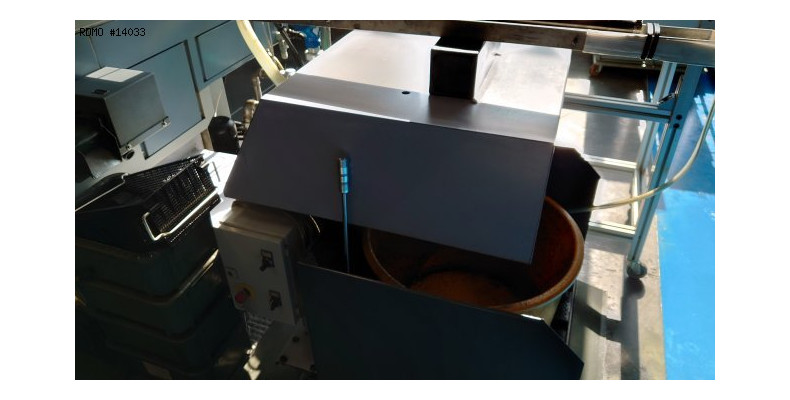

- Parts catcher
- Parts conveying strip
- Chips conveyor
- Coolant tank

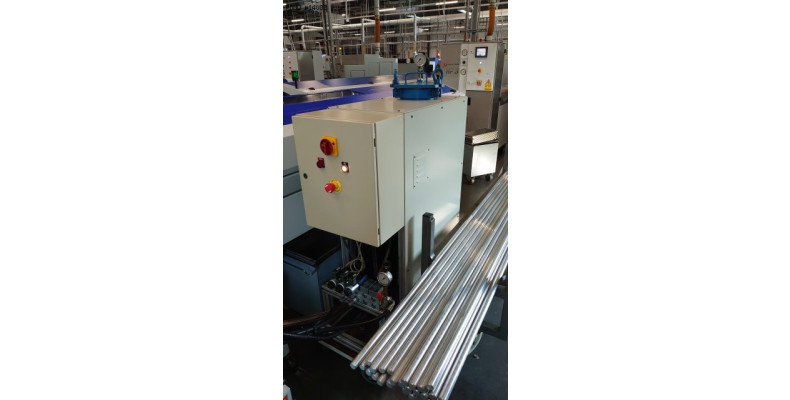

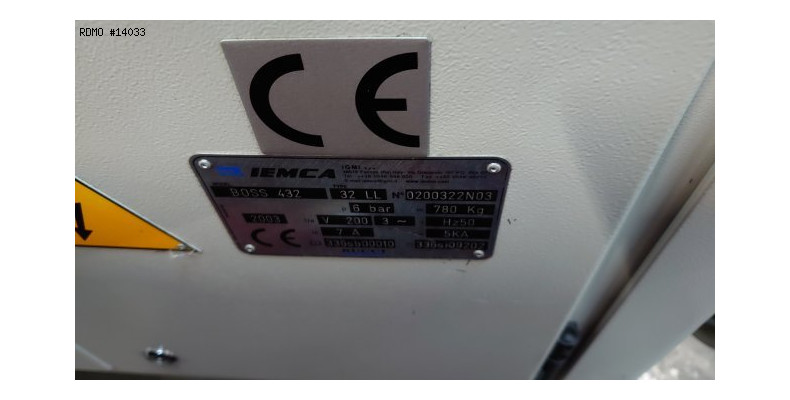

- Bar loader : IEMCA BOSS 432/32LL

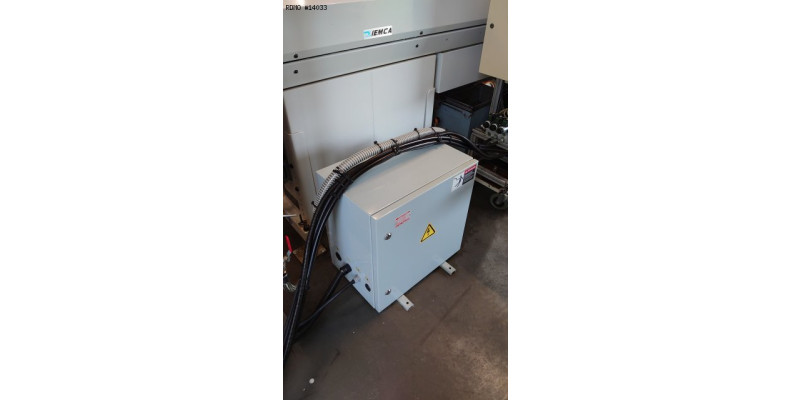

- Electric transformer
