- Number of axes : 8
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 13 [mm]
- Max. machining length : 190 [mm]
- Spindle speeds : 15000 [rpm]
- Spindle power : 4 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 13 [mm]
- Spindle speeds : 15000 [rpm]
- Spindle power : 4 [kW]
- C axis indexing precision : 0.001 [°]
GUIDE BUSH HOLDER 1
- Number of positions : 8
- Number of motorized positions : 3
- Live tools speed : 6000 [rpm]
- Live tools power : 1 [kW]
GUIDE BUSH HOLDER 2
- Number of positions : 8
- Number of motorized positions : 2
- Live tools speed : 6000 [rpm]
- Live tools power : 1 [kW]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 8
- Number of motorized positions : 4
- Live tools speed : 6000 [rpm]
- Live tools power : 0.75 [kW]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 26 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2170 X 1140 [mm]
- Machine height : 1890 [mm]
- Machine weight : 2800 [kg]
MACHINE HOURS
- Number of hours under power : 25510 [h]
- Number of working hours : 11096 [h]
Equipment
- CNC : Fanuc 31i-B
- 3 colors status lamp
- Rotating tool motor on : S11,S21,S51
- Rotating guide bush
- Parts catcher
- Ejection of workpiece
- Parts conveying strip
- Chips conveyor

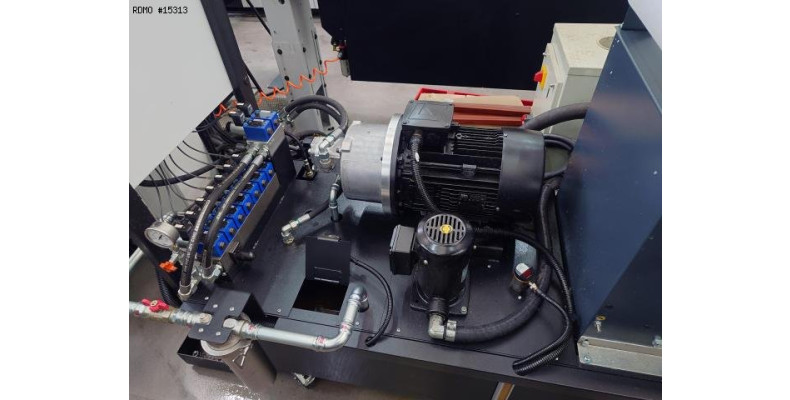

- Coolant tank : RESY
* with high-pressure pump
* with paper filtering unit
- Bar loader : IEMCA SBF 326-3.2M

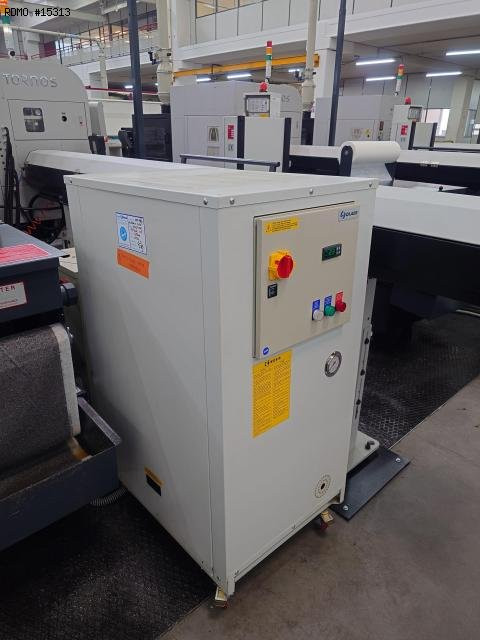

- Cooling unit

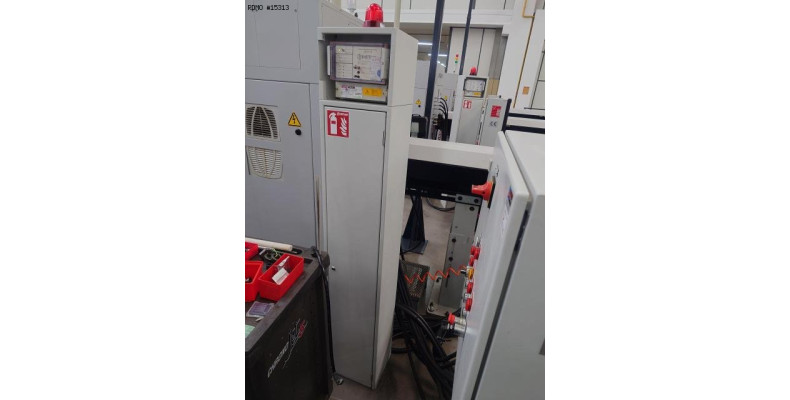

- Fire extinguisher *
NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
- Electric transformer
