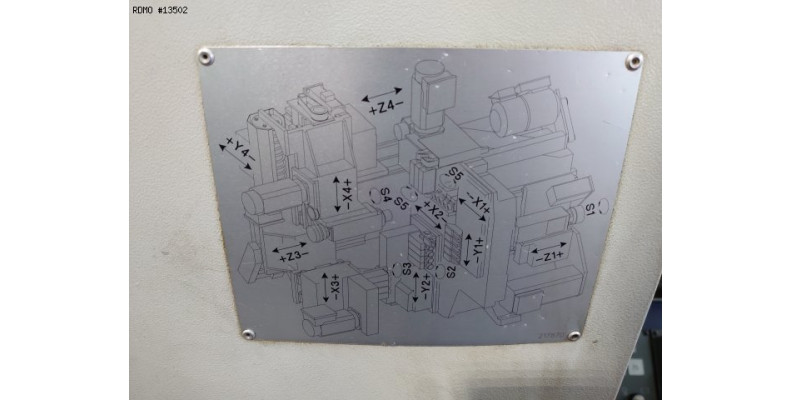

- Number of axes : 10
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 32 [mm]
- Travel : 240 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 7,5 [kW]
- C axis indexing precision : 0,1 [°]
COUNTER-SPINDLE
- Max. bar diameter : 32 [mm]
- Spindle speeds : 6000 [rpm]
- Spindle power : 7.5 [kW]
- C axis indexing precision : 0.1 [°]

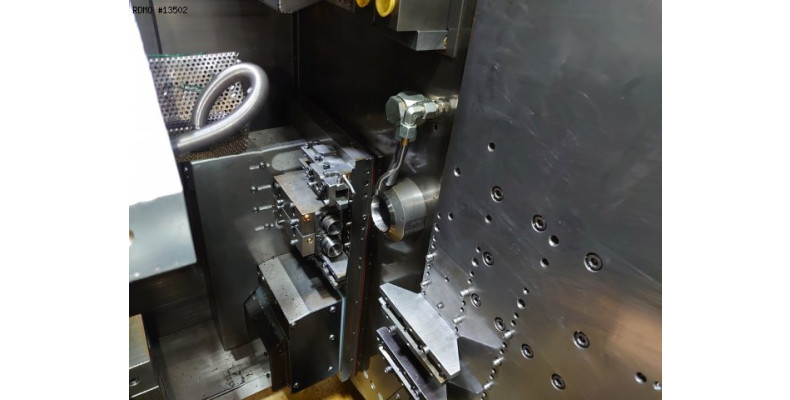

GUIDE BUSH HOLDER 1
- Number of positions : 5
GUIDE BUSH HOLDER 2
- Number of positions : 5
- Number of motorized positions : 4
- Live tools speed : 8000 [rpm]
END ATTACHMENT
- Number of positions : 4
- Number of motorized positions : 4
- Live tools speed : 6000 [rpm]
SECONDARY OPERATION
- Number of positions : 7
- Number of motorized positions : 3
- Live tools speed : 8000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 13 [kVA]
MACHINE HOURS
- Number of hours under power : 28844 [h]
Equipment

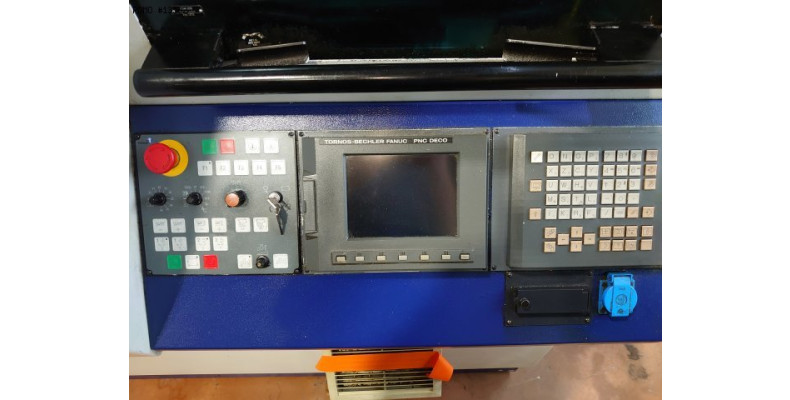

- CNC : Fanuc
- Rotating tool motor on : S2,S3,S5 Horizontal + vertical

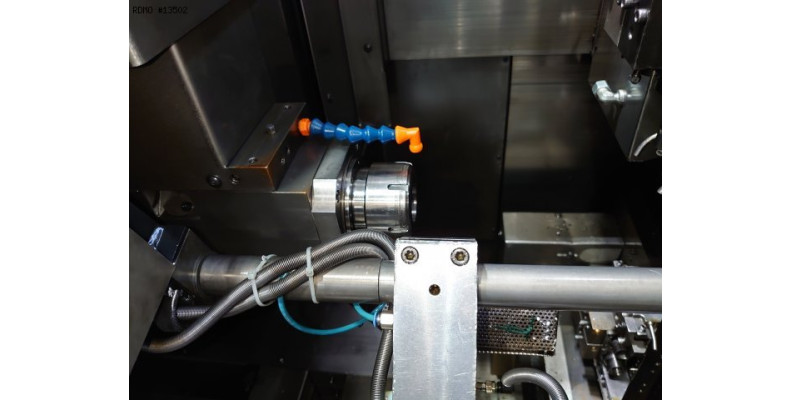

- Rotating guide bush
- Parts catcher

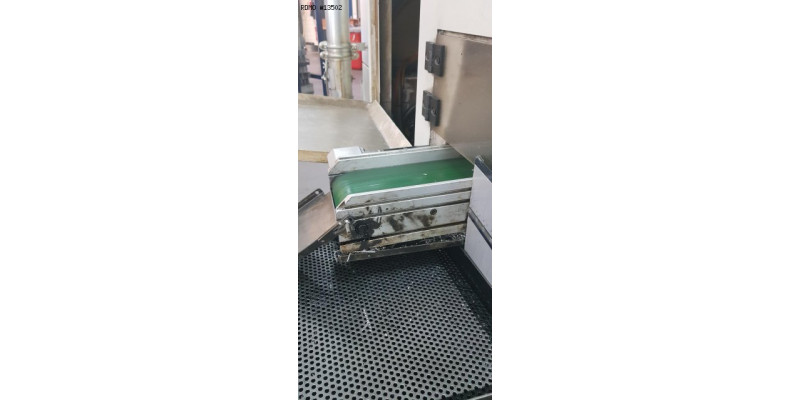

- Parts conveying strip
- Ejection of workpiece

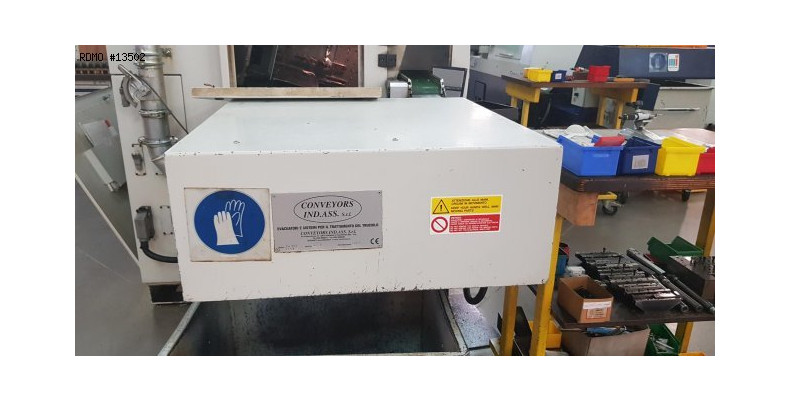

- Coolant tank
* with high-pressure pump

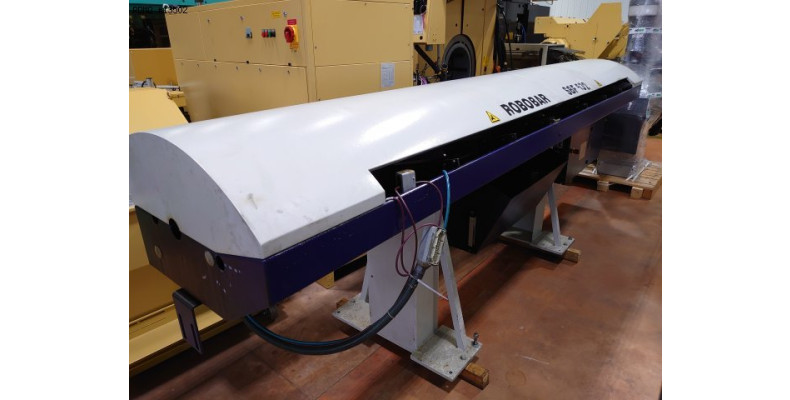

- Bar loader : ROBOBAR SBF-532
- Number of rotary tool holders : 3
This machine tool is sold. We offer equivalent models at the bottom of page.
