- Number of axes : 5
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 7 [mm]
- Max. machining length : 125 [mm]
- Spindle speeds : 16.000 [rpm]
- Spindle power : 1.1 / 1.5 [kW]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 7 [mm]
- Spindle speeds : 16.000 [rpm]
- Spindle power : 1.1 / 1.5 [kW]
- C axis indexing precision : 0,001 [°]
GUIDE BUSH HOLDER 1
- Number of positions : 4
- Number of motorized positions : 3
- Live tools speed : 9.000 [rpm]
- Live tools power : 0.35 [kW]
GUIDE BUSH HOLDER 2
- Number of positions : 3
END ATTACHMENT
- Number of positions : 3
POWER SUPPLY
- Supply voltage : 220 [V]
- Total installed power : 8 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 1480 x 895 [mm]
- Machine height : 1515 [mm]
- Machine weight : 1000 [kg]
Equipment

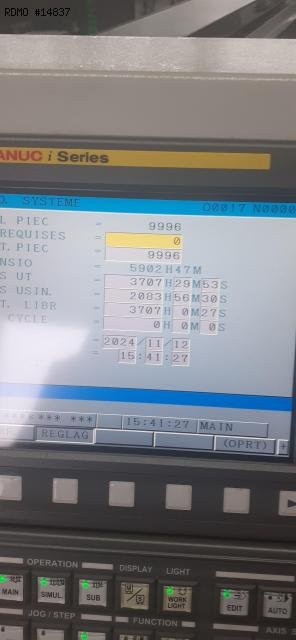

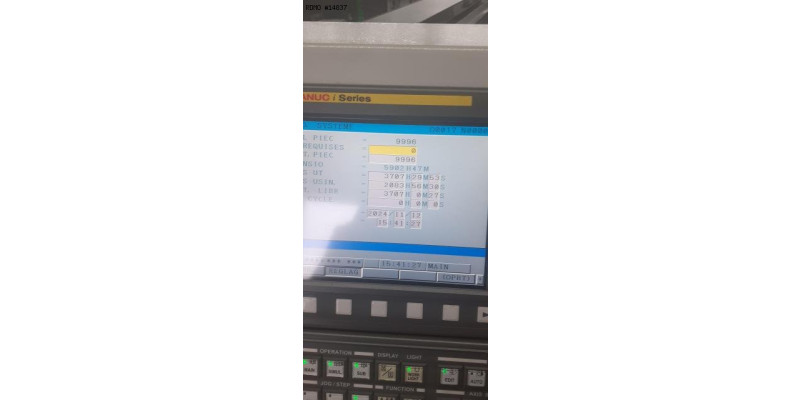

- CNC : Fanuc i Series
- 3 colors status lamp
- Rotating guide bush
- Coolant tank
- Ejection of workpiece
- Parts catcher
- Bar loader : FMB MICROMAG 20
- Electric transformer
