- Number of axes : 6
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 20 [mm]
- Max. machining length : 200 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 5,5 / 7,5 [kW]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 20 [mm]
- Spindle speeds : 8.000 [rpm]
- Spindle power : 1.5 [kW]
- C axis indexing precision : 0,001 [°]
GUIDE BUSH HOLDER 1
- Number of positions : 10
- Number of motorized positions : 3
- Live tools speed : 5000 [rpm]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 4
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 6 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2120 X 1185 [mm]
- Machine height : 1820 [mm]
- Machine weight : 2400 [kg]
Equipment

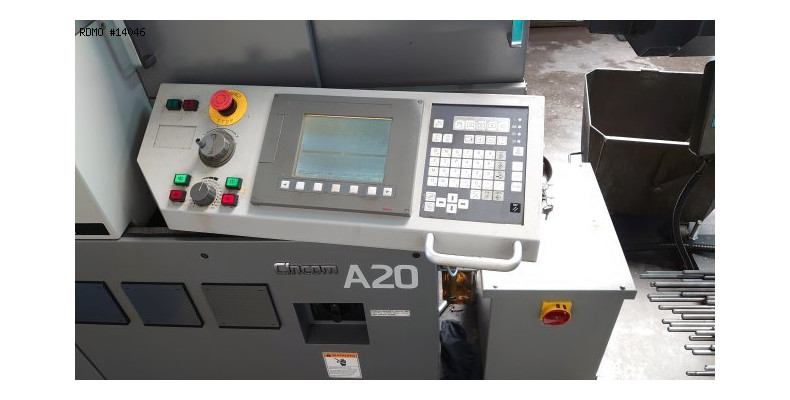

- CNC : Fanuc 32 iTB
- 3 colors status lamp
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece
- Coolant tank

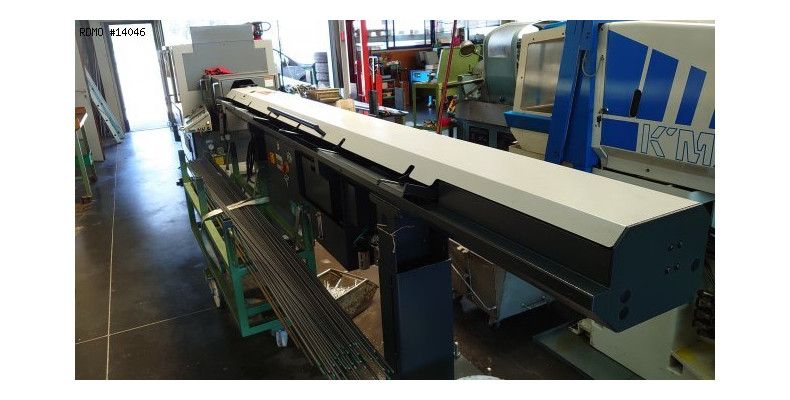

- Bar loader : LNS ALPHA ST 320
- Fire extinguisher
NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
This machine tool is sold. We offer equivalent models at the bottom of page.
