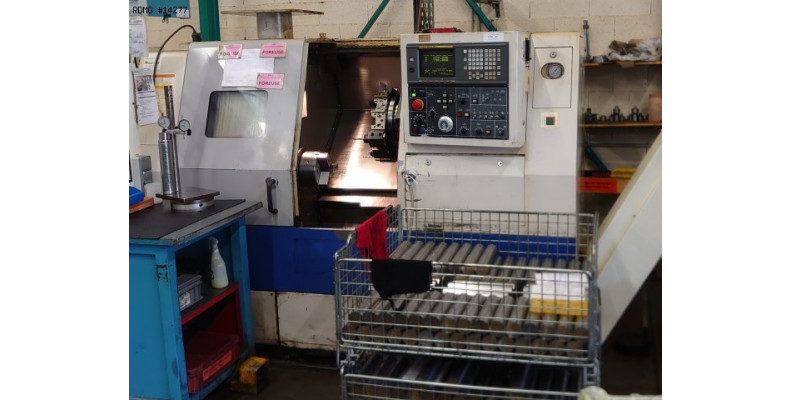

DOOSAN PUMA 200 C 2 axis

Turning CNC lathe
14277
Brand: DOOSAN
Model: PUMA 200 C
Year: 1999
Serial: PM200959
14277
DOOSAN PUMA 200 C 2 axis
Brand: DOOSAN
Model: PUMA 200 C
Year: 1999
Serial: PM200959
Ask Price

Caracteristics & Equipment

Caracteristics
- Number of axes : 2

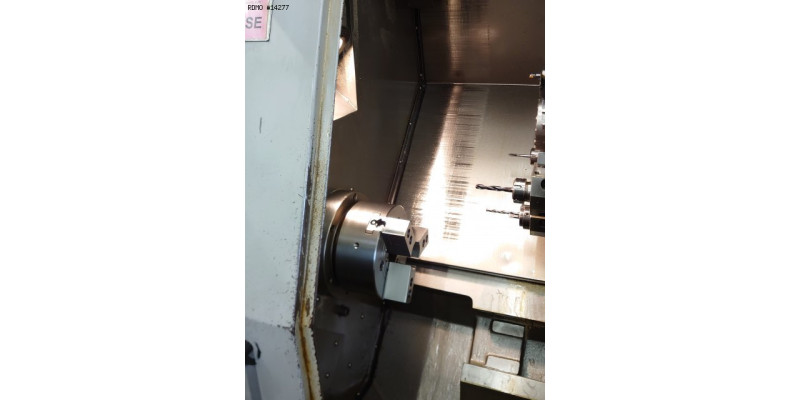

MAIN SPINDLE
- Spindle nose : A2-6
- Spindle power : 15 [kW]
- Spindle speeds : 4500 [rpm]
- Max. diameter on bench : 510 [mm]
- Max. turning diameter : 330 [mm]
- Max. turning length : 400 [mm]

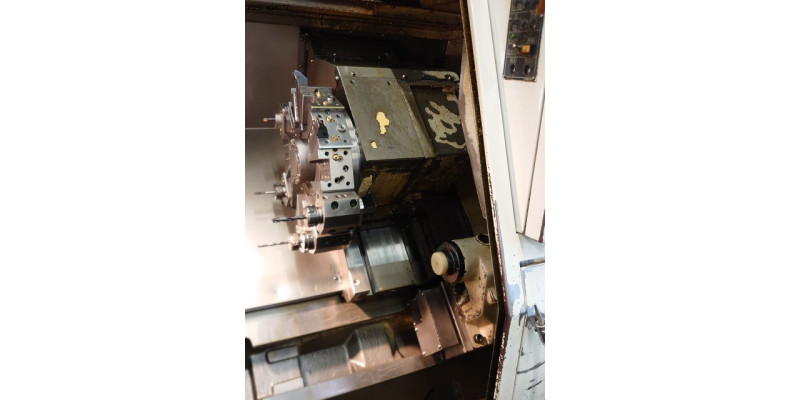

TURRET
- Number of positions : 12
- X/Z stroke : 230 / 430 [mm]
POWER SUPPLY
- Supply voltage : 220 [V]
- Total installed power : 26.33 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.660 x 1.635 [mm]
- Machine height : 1.730 [mm]
- Machine weight : 4000 [kg]
MACHINE HOURS
- Number of working hours : 18081 [h]
Equipment

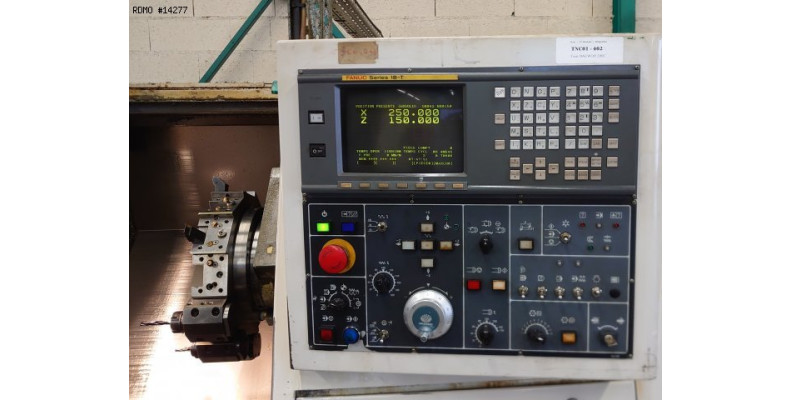

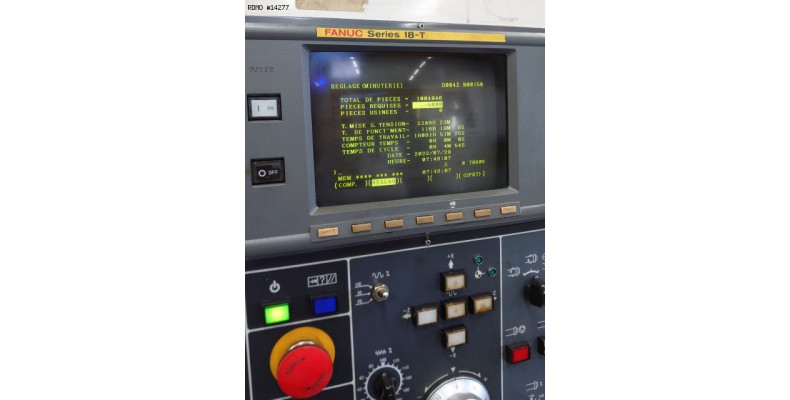

- CNC : Fanuc Series 18-T
- Chips conveyor
