HYUNDAI WIA L210A 2 axis

Turning CNC lathe
13832
PDF datasheet to download:
Brand: HYUNDAI WIA
Model: L210A
Year: 2018
Serial: G3135-4674
13832
HYUNDAI WIA L210A 2 axis
PDF datasheet to download:
Brand: HYUNDAI WIA
Model: L210A
Year: 2018
Serial: G3135-4674
Ask Price

Caracteristics & Equipment

Caracteristics
- Number of axes : 2
MAIN SPINDLE

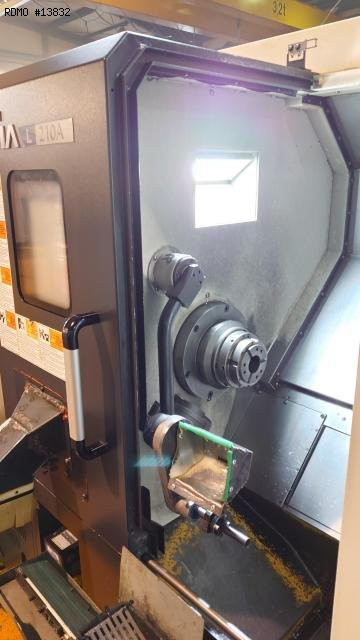

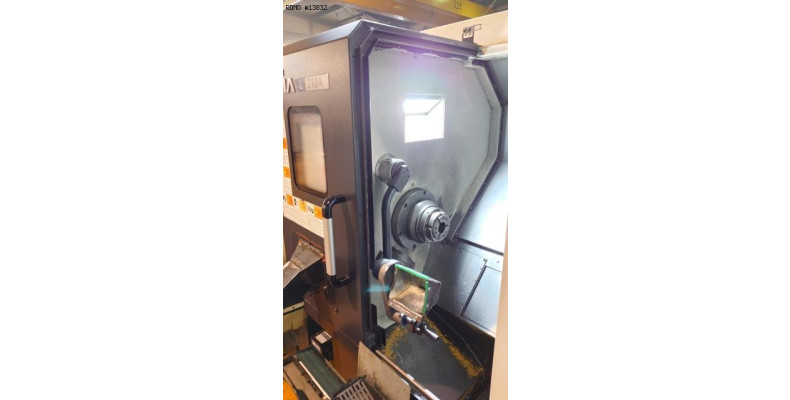

- Spindle nose : A2-6
- Spindle power : 15 [kW]
- Spindle speeds : 4000 [rpm]
- Max. bar diameter : 65 [mm]
- Max. turning diameter : 410 [mm]
- Max. diameter on bench : 550 [mm]

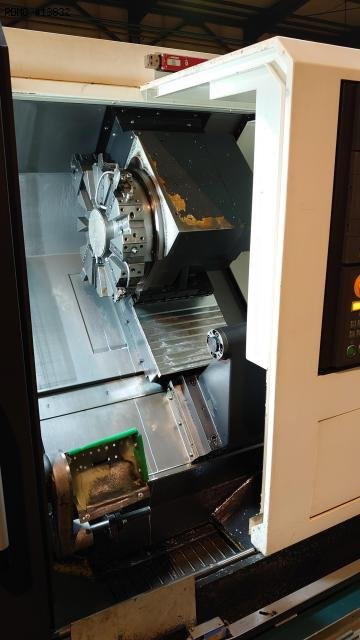

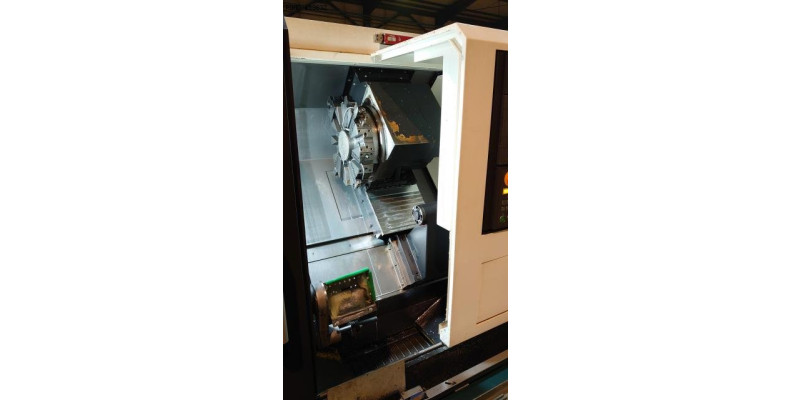

TURRET
- Number of positions : 12
- X/Z stroke : 210 / 430 [mm]
POWER SUPPLY
- Supply voltage : 380 [V]
- Total installed power : 21 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.405 x 1.650 [mm]
- Machine height : 1.870 [mm]
- Machine weight : 4100 [kg]
MACHINE HOURS
- Number of hours under power : 13865 [h]
- Number of working hours : 1216 [h]
Equipment

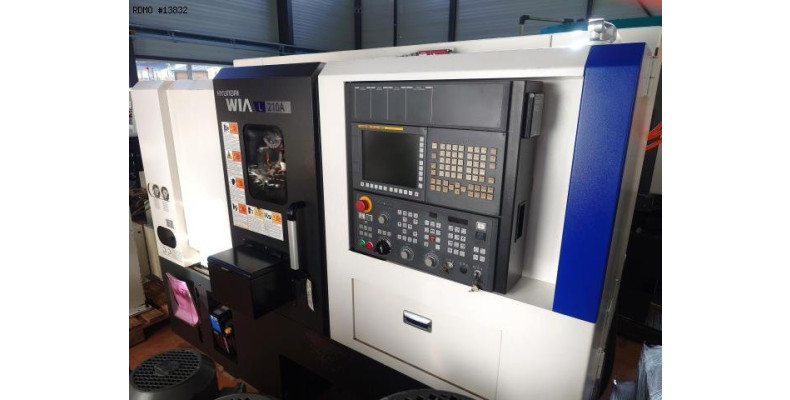

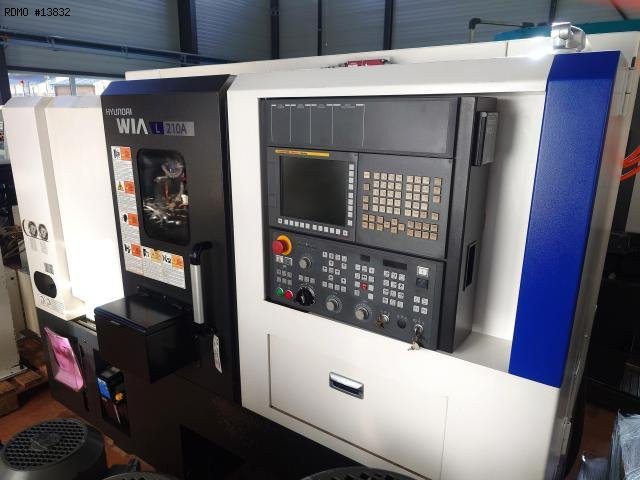

- CNC : Fanuc i Series

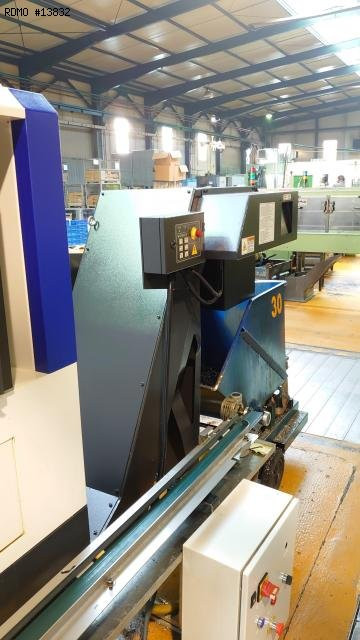

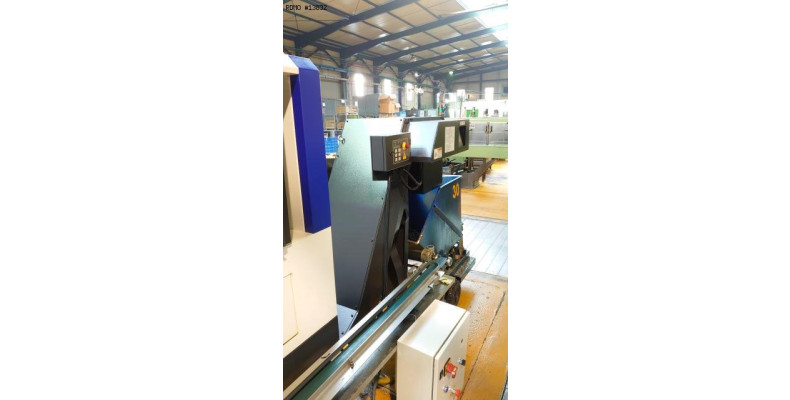

- Chips conveyor

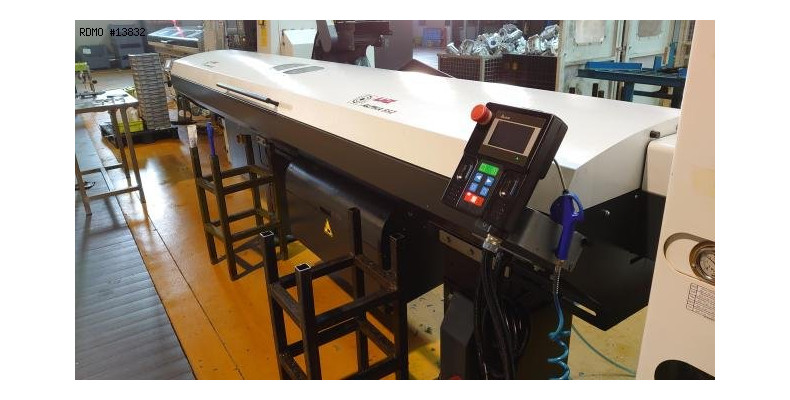

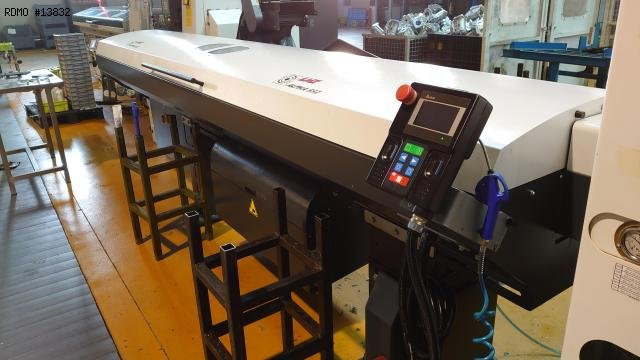

- Bar loader : LNS ALPHA 552

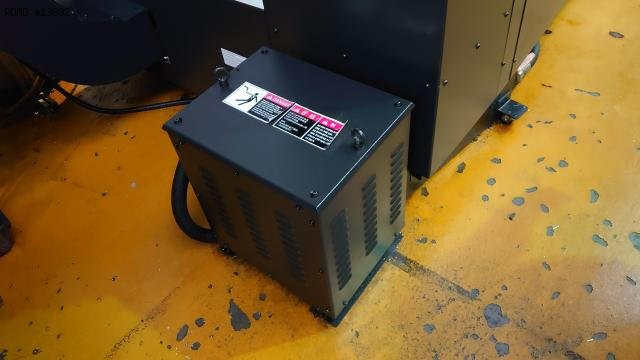

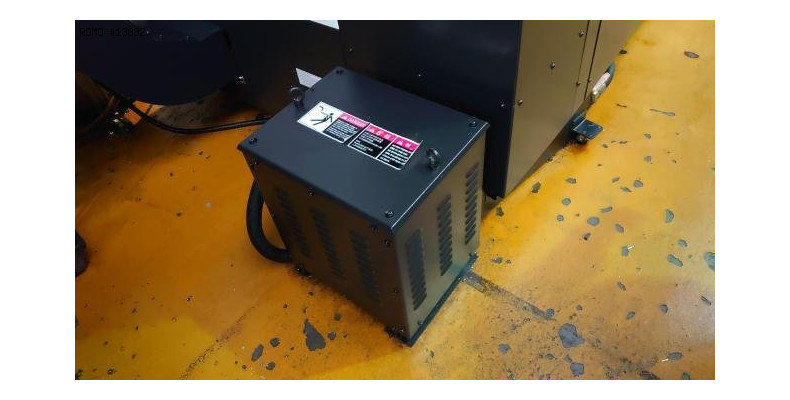

- Electric transformer

Datasheet

PDF datasheet to download:

Description
