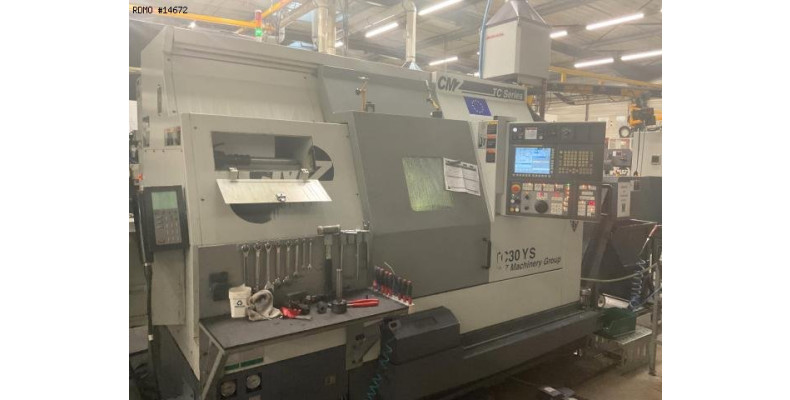

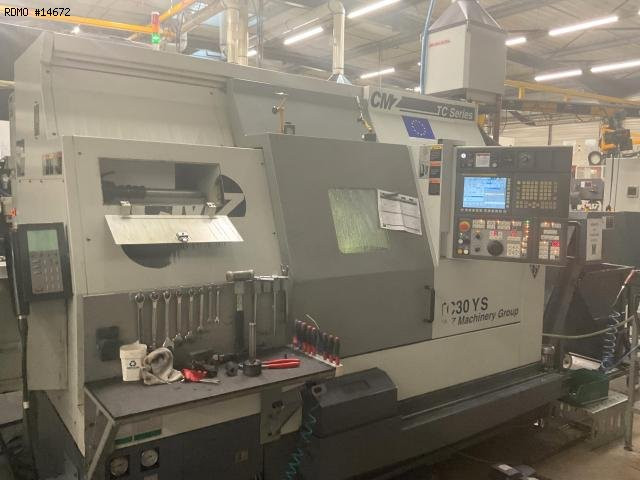

CMZ TC-30 YS 6 axis

- Number of axes : 6
MAIN SPINDLE
- Spindle nose : ASA 8'' A2
- Spindle power : 27 - 42 [kW]
- Spindle speeds : 3500 [rpm]
- Max. bar diameter : 77 [mm]
- Max. turning diameter : 550 [mm]
- Max. diameter on bench : 920 [mm]
- Max. chuck diameter : 745 [mm]
- C axis indexing precision : 0,001 [°]

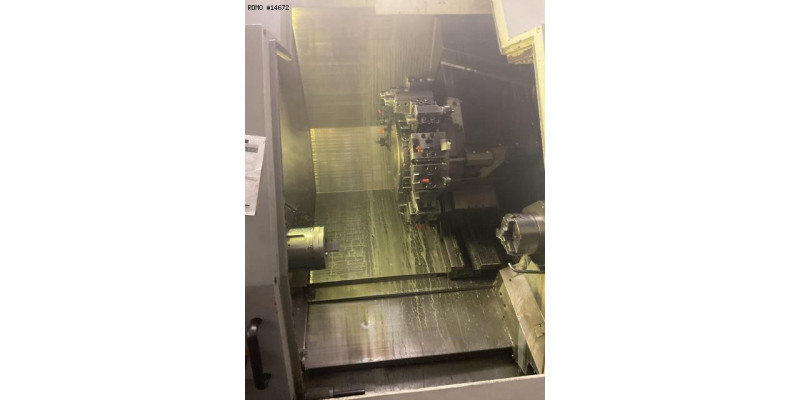

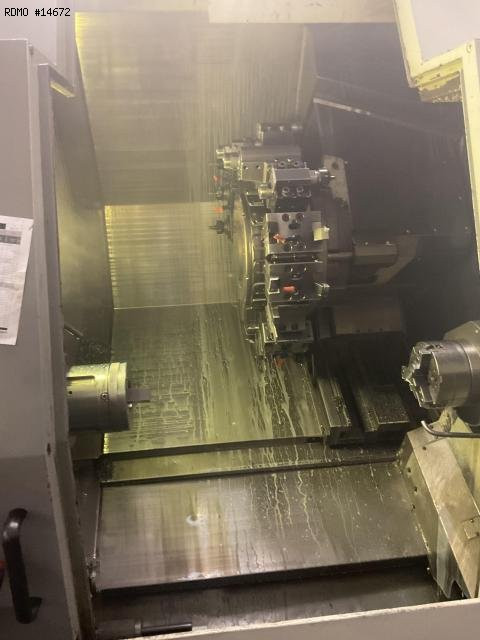

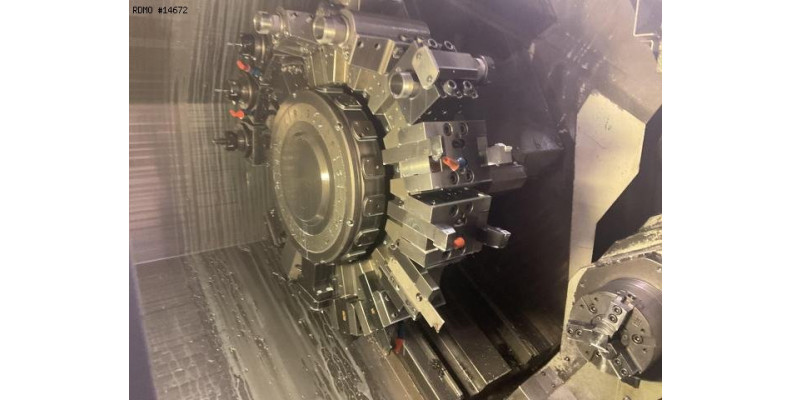

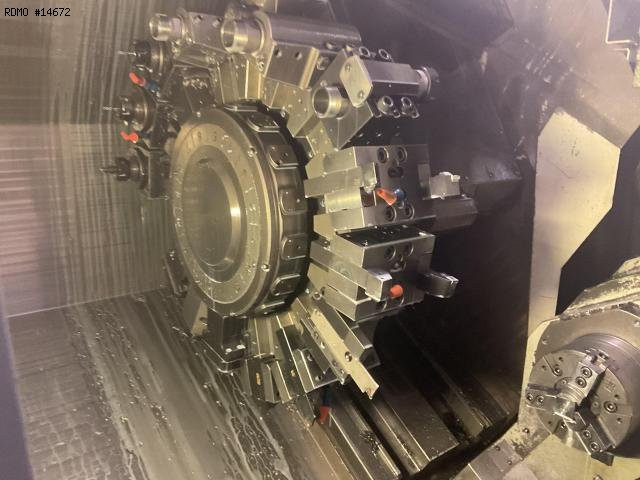

TURRET
- Number of positions : 16
- X/Z stroke : 315 / 800 [mm]
- Y stroke : +80 / -60 [mm]
- Live tools speed : 4000 [rpm]
- Live tools power : 16 [kW]
COUNTER-SPINDLE
- Spindle nose : ASA 6'' A2
- Spindle power : 8 - 14 [kW]
- Spindle speeds : 5000 [rpm]
- Max. bar diameter : 43 [mm]
- C axis indexing precision : 0,001 [°]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 45 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2800 x 2020 [mm]
- Machine height : 2240 [mm]
- Machine weight : 7500 [kg]
MACHINE HOURS
- Number of working hours : 18656 [h]

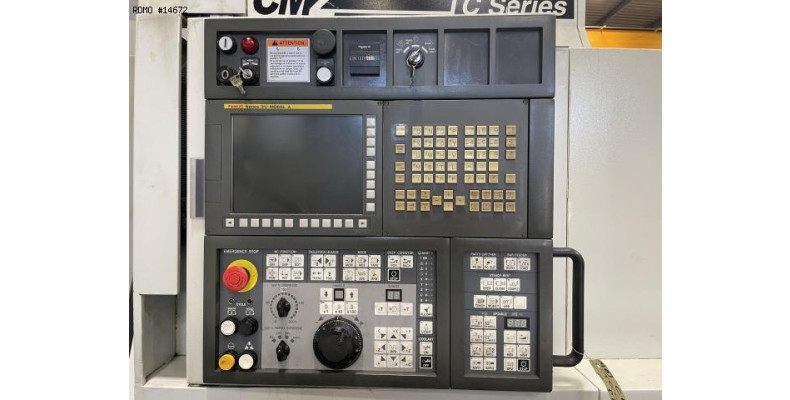

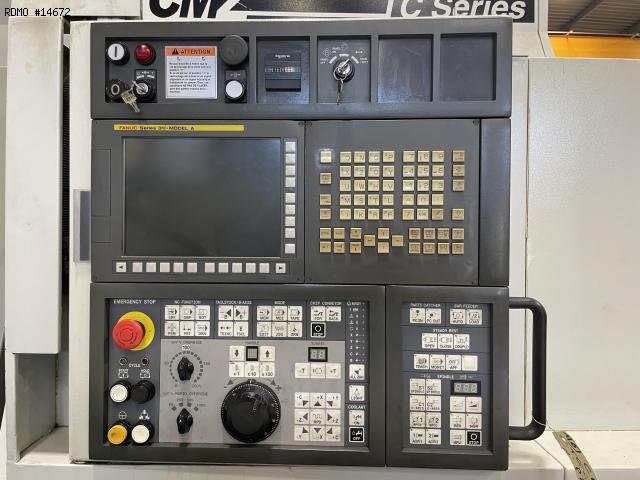

- CNC : Fanuc 31i Model A
- 3 colors status lamp
- Coolant tank
* with high-pressure pump
- Chips conveyor

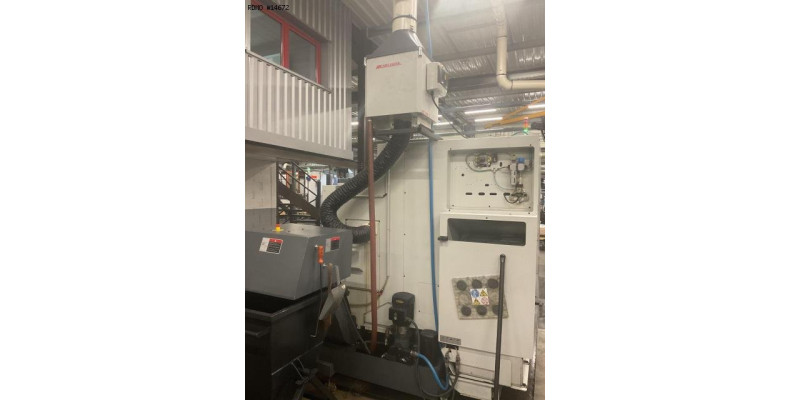

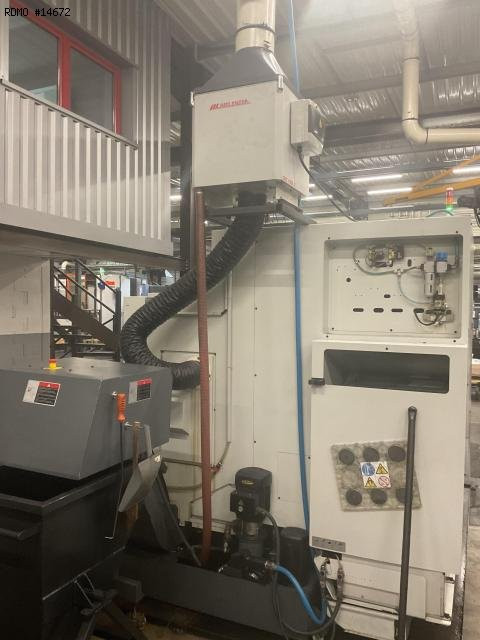

- Oil mist extractor
- Spindle cooling unit
- Tool probe : Renishaw
- Parts catcher
- Parts conveying strip

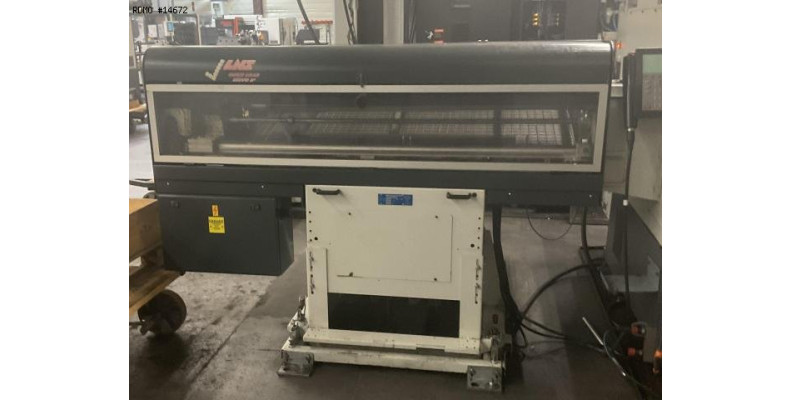

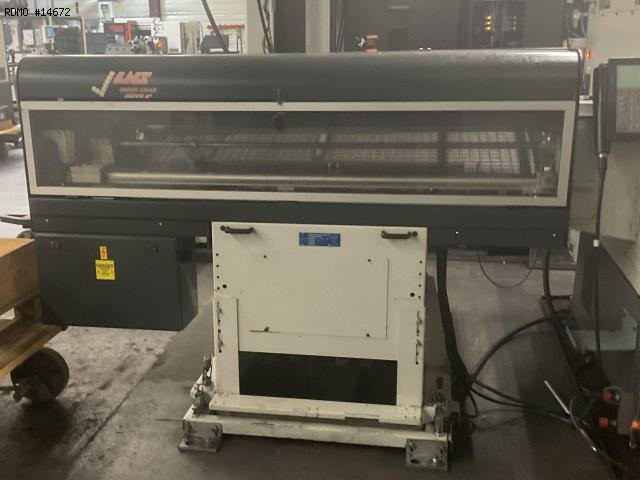

- Bar loader : LNS QUICK LOAD SERVO III
