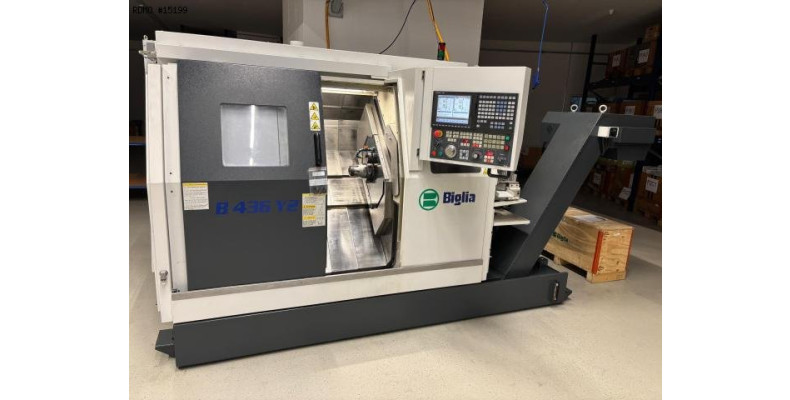

BIGLIA B436Y2 9 axis

- Number of axes : 10
- Number of spindles : 2
- Number of turrets : 2
MAIN SPINDLE
- Spindle nose : A2-5
- Spindle power : 11 [kW]
- Spindle speeds : 7000 [rpm]
- Max. bar diameter : 36 [mm]
- Max. chuck diameter : 100 [mm]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Spindle nose : A2-5
- Spindle power : 11 [kW]
- Spindle speeds : 7000 [rpm]
- Max. bar diameter : 36 [mm]
- Max. turning diameter : 100 [mm]
- C axis indexing precision : 0.001 [°]
- Travel : 340 [mm]
TURRET 1
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 85/300 [mm]
- Y stroke : -25/+25 [mm]
- Live tools speed : 6000 [rpm]
- Live tools power : 4.6 [kW]
TURRET 2
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 35/300 [mm]
- Y stroke : -25/+25 [mm]
- Live tools speed : 6000 [rpm]
- Live tools power : 4.6 [kW]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 3682 x 1430 [mm]
- Machine height : 1900 [mm]
- Machine weight : 5000 [kg]
MACHINE HOURS
- Number of hours under power : 72663 [h]

- CNC : Mitsubishi M700
- Coolant tank
* with high-pressure pump : 30 [bars]
- Chips conveyor
- Tool probe : MARPOSS
- Parts catcher
- Parts conveying strip
- Bar loader : Iemca BOSS 545-E
- Electric transformer
