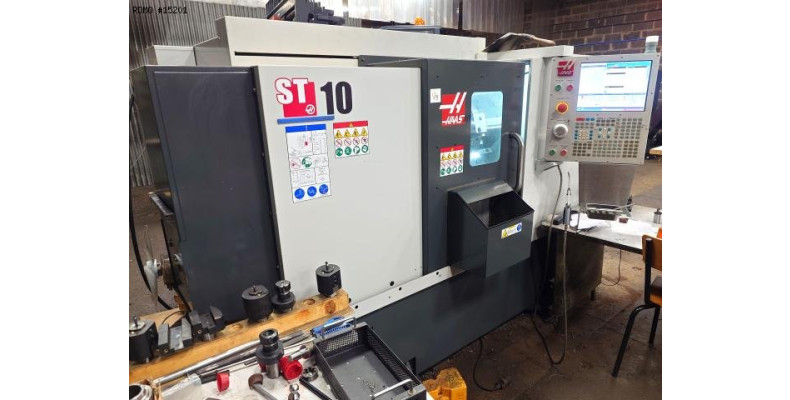

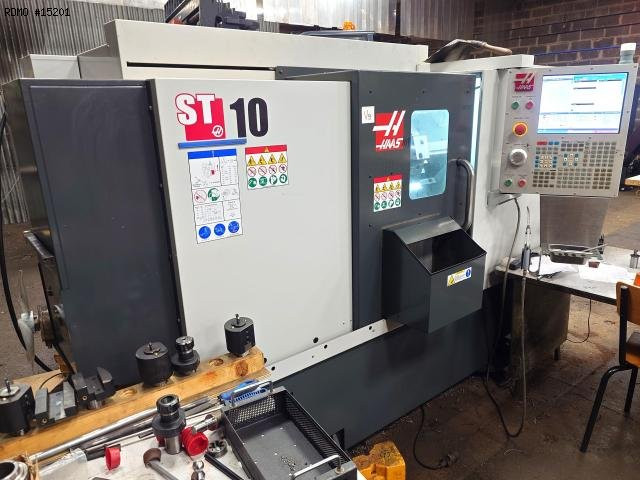

HAAS ST-10 2 axis

Name: CNC lathe HAAS ST-10 2 axes
Brand: HAAS
Availability: InStock

Turning CNC lathe

15201

PDF datasheet to download:

Brand: HAAS

Model: ST-10

Year: 2019

Serial: 3116486

15201

HAAS ST-10 2 axis

Turning CNC lathe

PDF datasheet to download:

Brand: HAAS

Model: ST-10

Year: 2019

Serial: 3116486

Ask Price

Caracteristics

- Number of axes : 2
MAIN SPINDLE
- Spindle nose : A2-5
- Spindle power : 11.2 [kW]
- Spindle speeds : 6000 [rpm]
- Max. bar diameter : 44 [mm]
- Max. turning diameter : 229 [mm]
- Max. machining length : 355 [mm]
- Max. diameter on bench : 413 [mm]

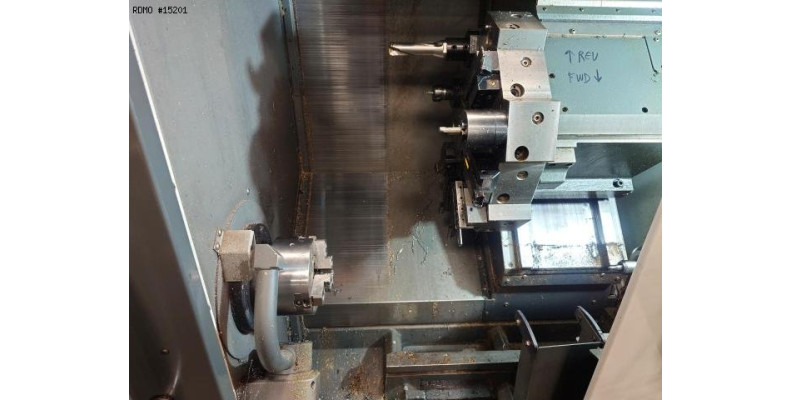

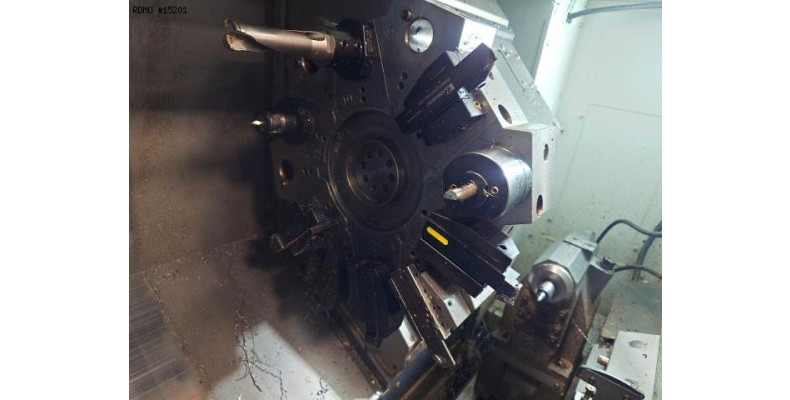

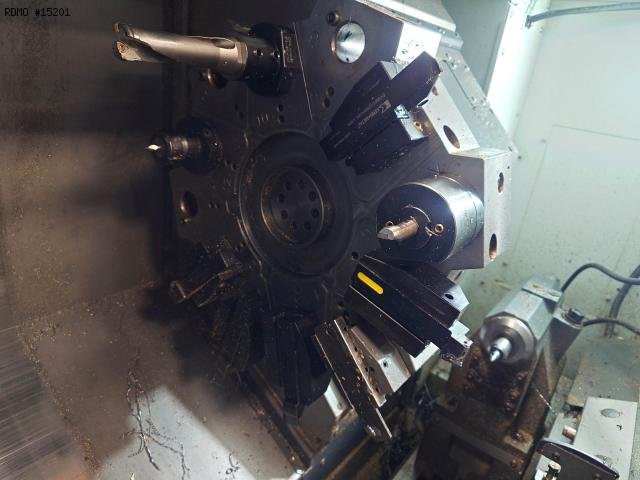

TURRET
- Number of positions : 12
- X/Z stroke : 200 X 406 [mm]
- Tool type : VDI 40
TAILSTOCK
- Tailstock type : Manuelle
- Type of cone : CM3
- Tailstock stroke : 508 [mm]
- Quill stroke : 95 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 3200 x 1780 [mm]
- Machine height : 2060 [mm]
- Machine weight : 3600 [kg]

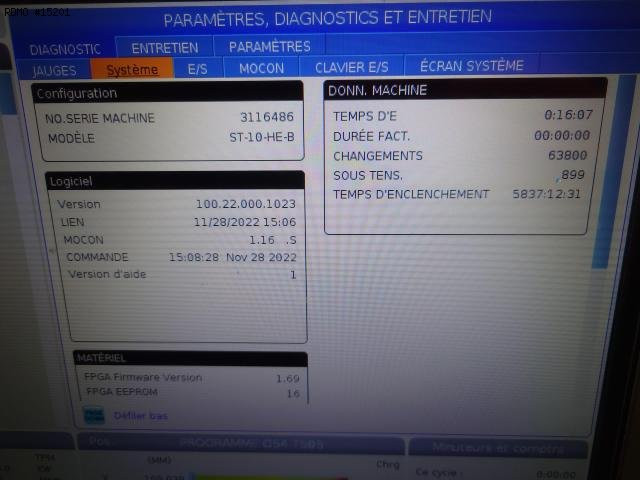

MACHINE HOURS

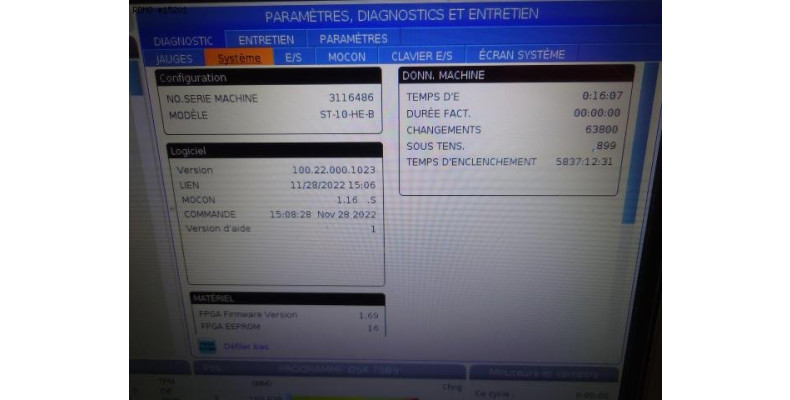

- Number of working hours : 5837 [h]

Equipment

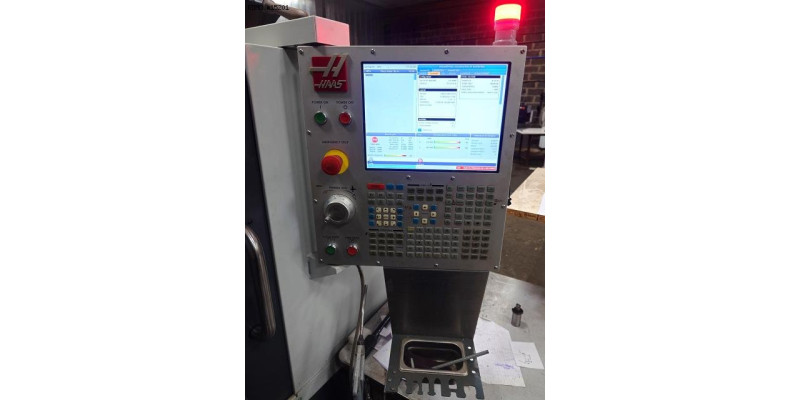

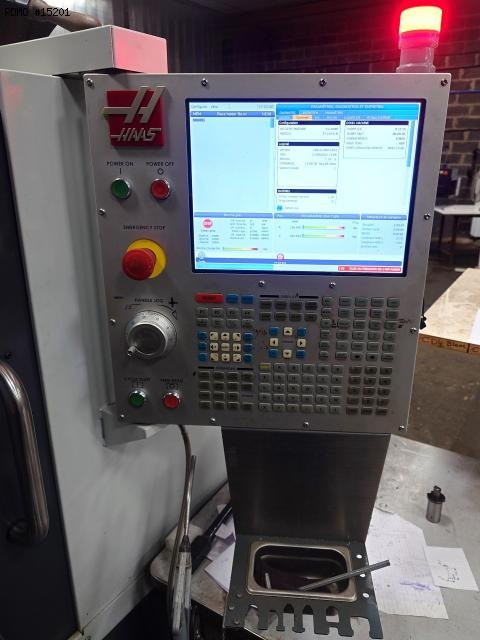

- CNC : HAAS
- Interactive programming : HAAS intuitive

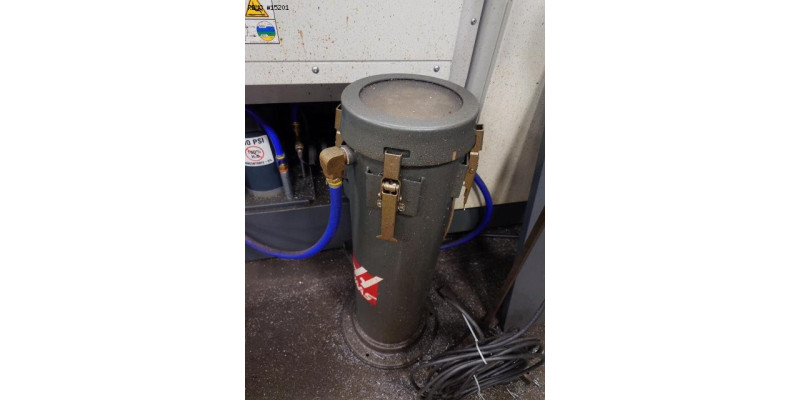

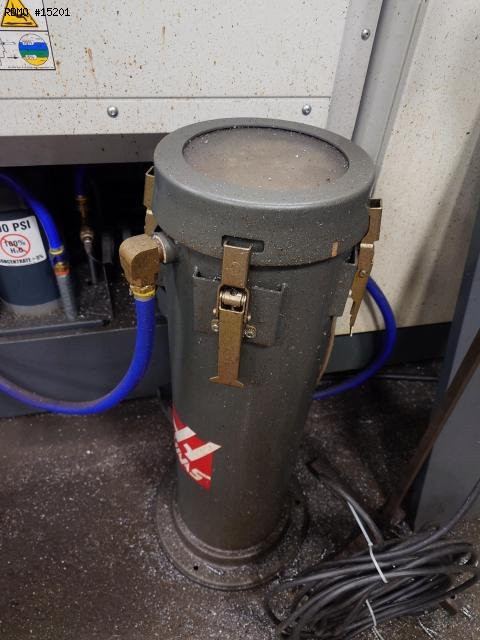

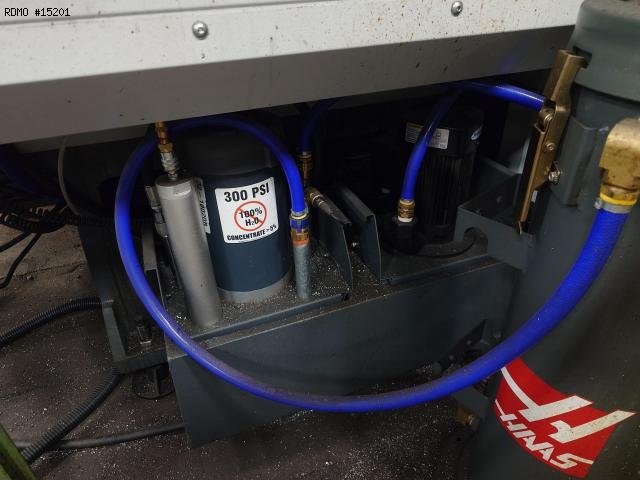

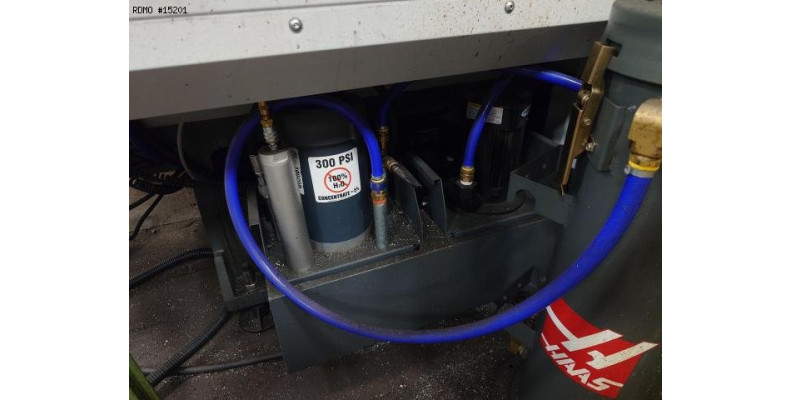

- Coolant tank
* with high-pressure pump
* with paper filtering unit

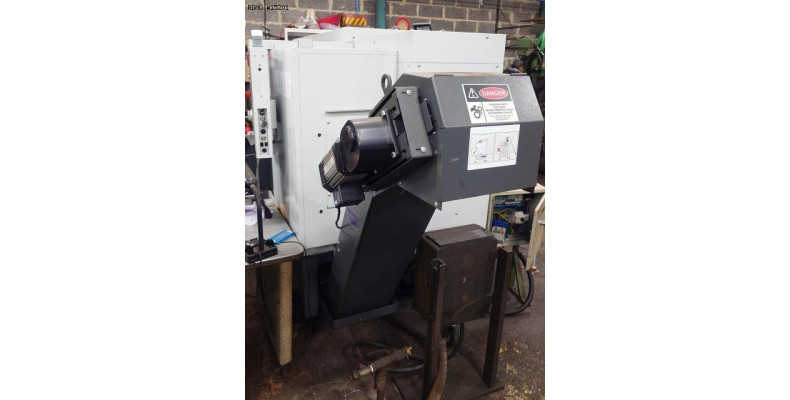

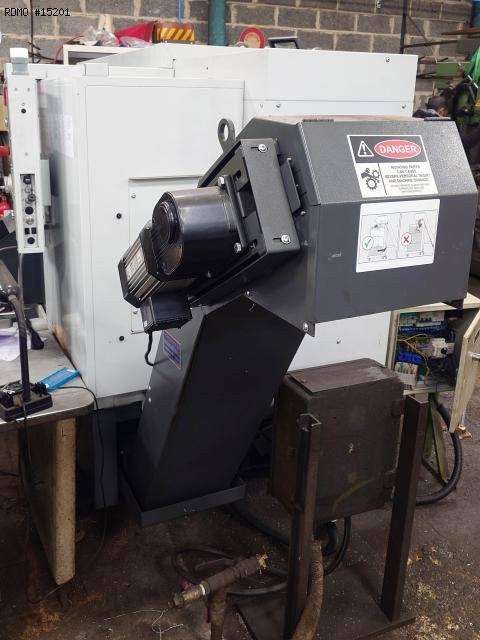

- Chips conveyor
- Tool probe
- Parts catcher

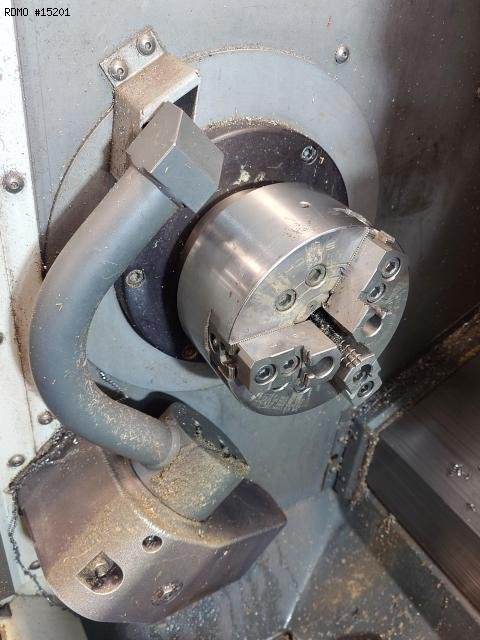

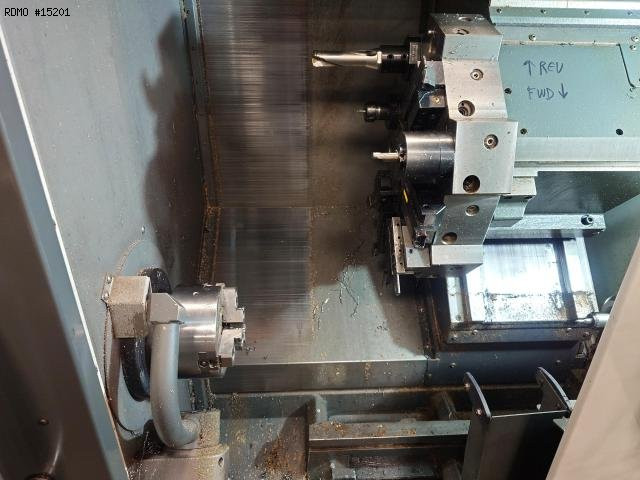

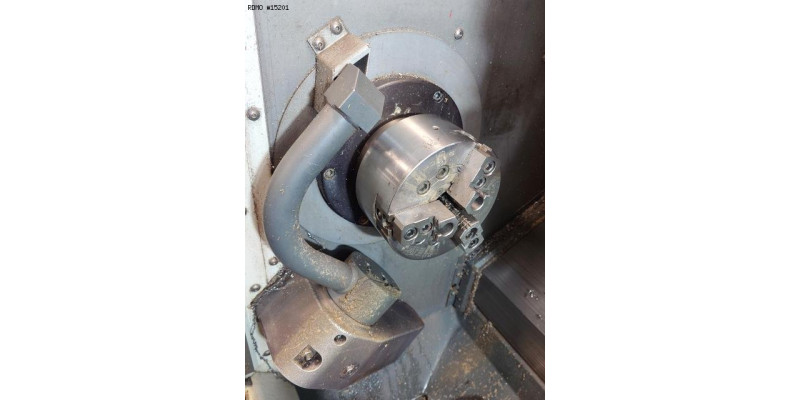

- Chuck 3 jaws : 165 [mm]
