TRAUB TNX 65 12 axis

- Number of spindles : 2
- Number of axes : 12
- Number of turrets : 3
MAIN SPINDLE
- Spindle nose : A2-6
- Spindle power : 24 [kW]
- Spindle speeds : 5.000 [rpm]
- Max. bar diameter : 65 [mm]
- Max. chuck diameter : 175 [mm]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Spindle nose : A2-5
- Spindle power : 28 [kW]
- Spindle speeds : 7.000 [rpm]
- Max. bar diameter : 42 [mm]
- C axis indexing precision : 0,001 [°]
- Travel : 700 [mm]

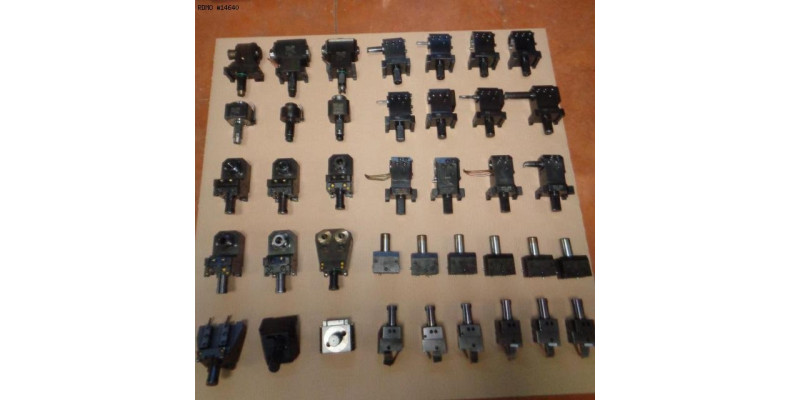

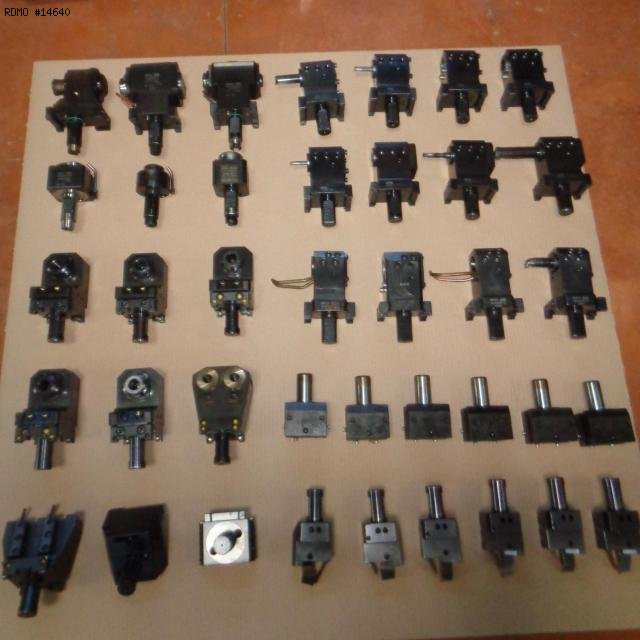

UPPER LEFT TURRET
- Number of positions : 10
- Number of motorized positions : 10
- X/Z stroke : 175 / 650 [mm]
- Y stroke : +/- 40 [mm]
- Tool type : VDI 30
- Live tools speed : 6.000 [rpm]
- Live tools power : 5,5 [kW]
LOWER LEFT TURRET
- Number of positions : 10
- Number of motorized positions : 10
- X/Z stroke : 175 / 650 [mm]
- Y stroke : +/- 40 [mm]
- Tool type : VDI 30
- Live tools speed : 6.000 [rpm]
- Live tools power : 5,5 [kW]
LOWER RIGHT TURRET
- Number of positions : 10
- Number of motorized positions : 10
- X/Z stroke : 175 / 650 [mm]
- Y stroke : +/- 40 [mm]
- Tool type : VDI 30
- Live tools speed : 6.000 [rpm]
- Live tools power : 5,5 [kW]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 95 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 5.450 x 2.318 [mm]
- Machine height : 2.258 [mm]
- Machine weight : 10.000 [kg]

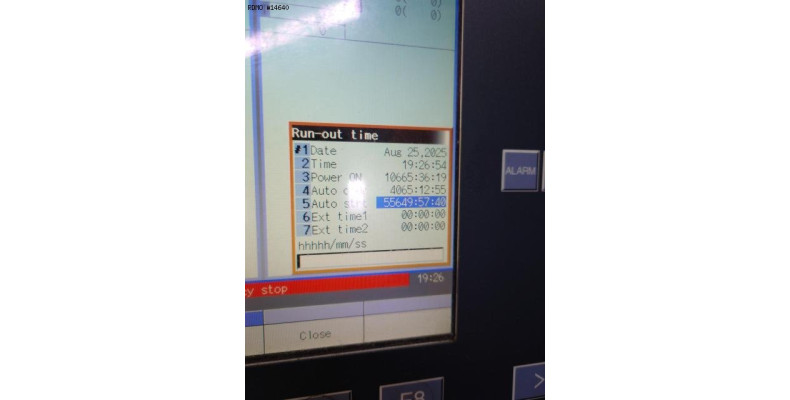

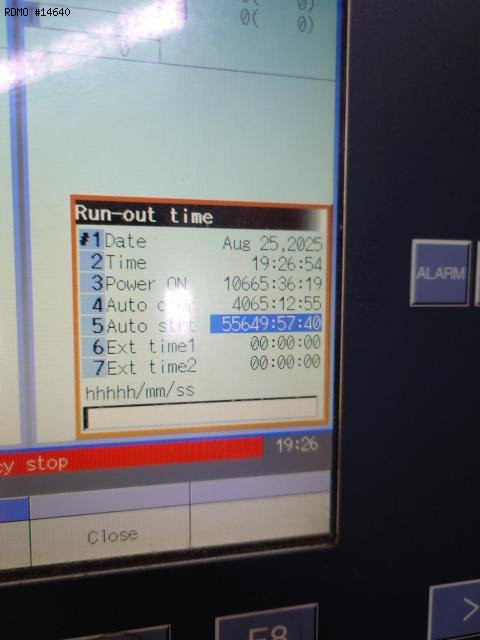

MACHINE HOURS
- Number of working hours : 50000 [h]

- CNC : Traub TX8i-S
- Electronic handwheel
- 3 colors status lamp
- Coolant tank : RESY
* with high-pressure pump
* with paper filtering unit
- Chips conveyor
- Parts catcher
- Parts conveying strip
- Collet chuck : 2 HAINBUCH
