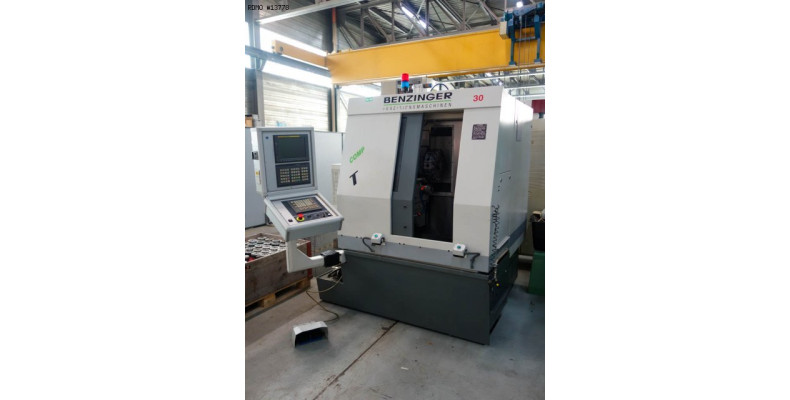

BENZINGER TCM B4 4 axis

Turning CNC lathe

PDF datasheet to download:

Brand: BENZINGER

Model: TCM B4

Year: 2006

Serial: 460020

Ask Price

Caracteristics

- Number of axes : 4
MAIN SPINDLE
- Spindle nose : A2-4
- Spindle power : 15,5 [kW]
- Spindle speeds : 8.000 [rpm]
- Max. bar diameter : 26 [mm]
- C axis indexing precision : 0,001 [°]

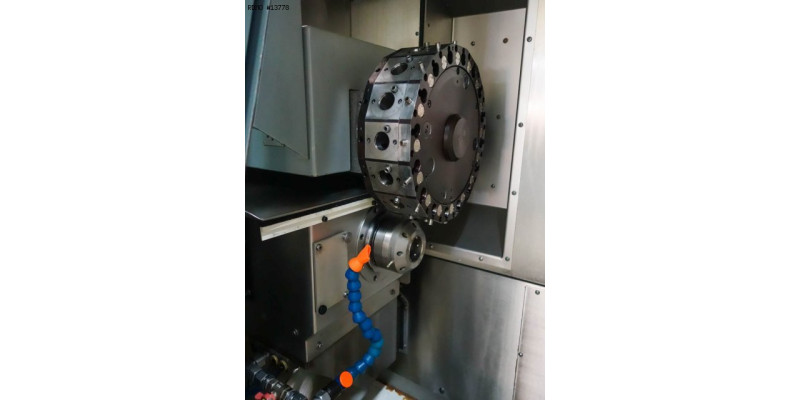

TURRET
- Number of positions : 16
- Number of motorized positions : 16
* Live tools speed : 6.000 [rpm]
* Live tools power : 6 [kW]
- X/Z stroke : 135 / 220 [mm]
- Y stroke : 84 [mm]
- Tool type : VDI 25
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 15 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 1.800 x 1.650 [mm]
- Machine height : 2.200 [mm]
- Machine weight : 2.800 [kg]

Equipment

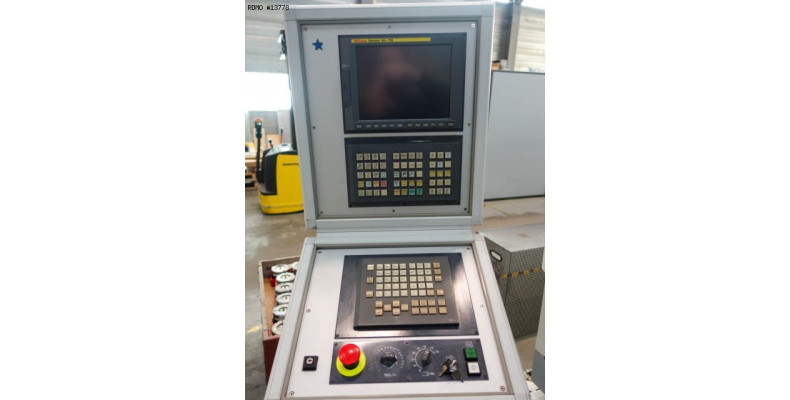

- CNC : Fanuc 18i-TB
- Interface : Ethernet / RS232 / PCMCIA
- Electronic handwheel
- Linear scales
- Coolant tank : 160 [l]
* with cooling unit for coolant

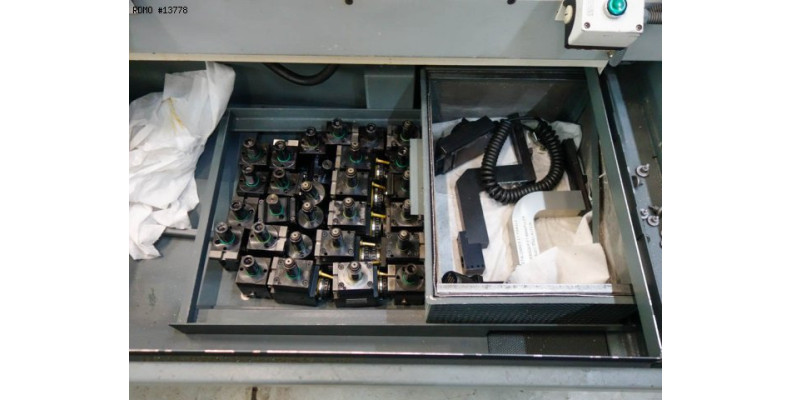

- Number of turning tool holders : 11
- Number of fixed tool holders : 14
