- Number of axes : 9
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 32 [mm]
- Travel : 230 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 7.5 [kW]
- C axis indexing precision : 0.001 [°]
GUIDE BUSH HOLDER 1
- Number of positions : 14
- Number of motorized positions : 8
- Live tools speed : 6000 [rpm]
COUNTER-SPINDLE
- Max. bar diameter : 32 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 7.5 [kW]
- C axis indexing precision : 0.001 [°]
GUIDE BUSH HOLDER 2
- Number of positions : 8
- Number of motorized positions : 8
- Live tools speed : 8000 [rpm]
END ATTACHMENT
- Number of positions : 4
- Number of motorized positions : 4
- Live tools speed : 6000 [rpm]
SECONDARY OPERATION
- Number of positions : 4
- Number of motorized positions : 4
- Live tools speed : 8000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 14 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 2400/1380 [mm]
- Machine height : 2050 [mm]
- Machine weight : 3000 [kg]
MACHINE HOURS

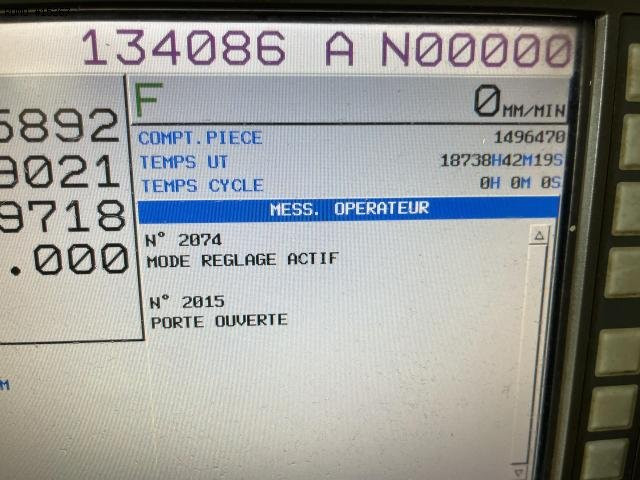

- Number of hours under power : 18765 [h]
Equipment
- CNC : Fanuc 31i
- Rotating guide bush
- Parts catcher
- Chips conveyor

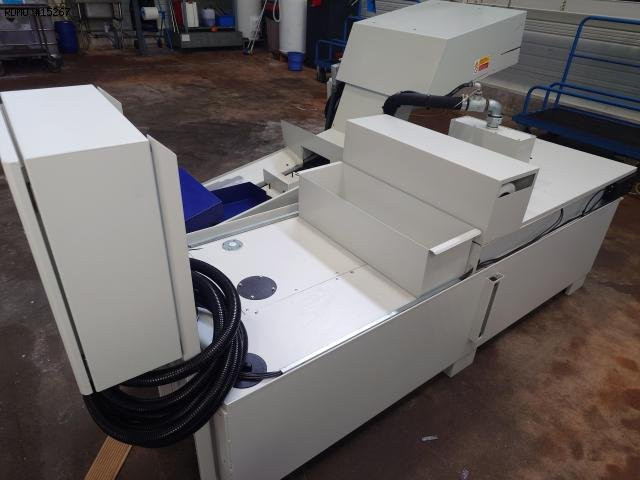

- Coolant tank

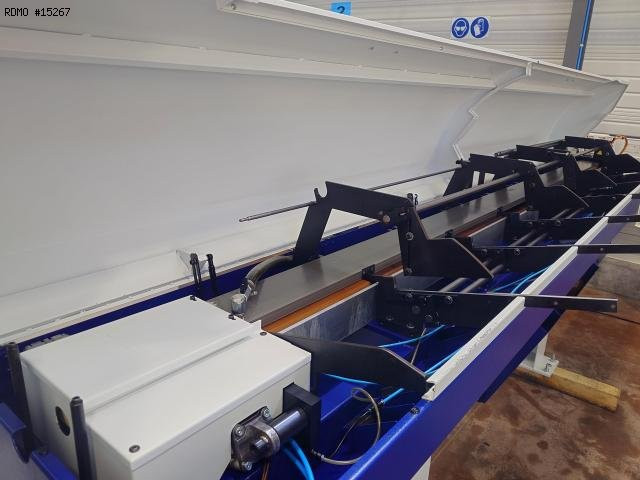

- Bar loader : SBF-532
- Oil mist extractor : Donaldson
* with paper filtering unit
