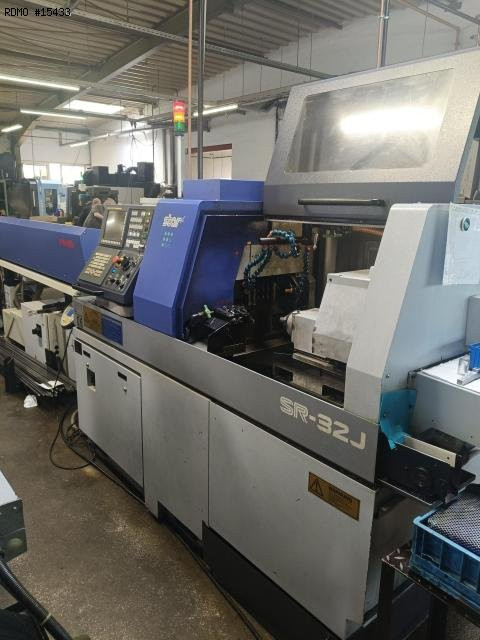

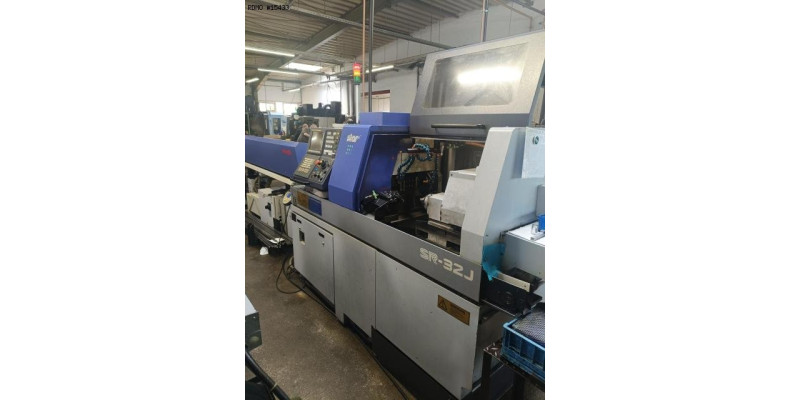

STAR SR-32J 8 axis

- Number of axes : 7
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 32 [mm]
- Travel : 310 [mm]
- Spindle speeds : 7.000 [rpm]
- Spindle power : 7,5 [kW]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 32 [mm]
- Spindle speeds : 7.000 [rpm]
- Spindle power : 3,7 [kW]
- C axis indexing precision : 0,001 [°]

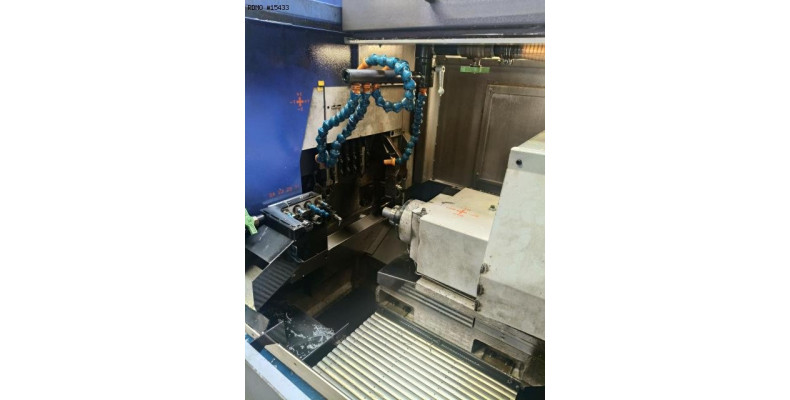

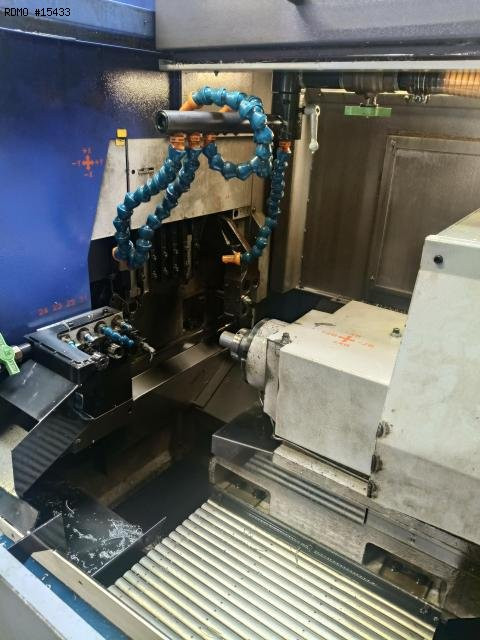

GUIDE BUSH HOLDER 1
- Number of positions : 11
- Number of motorized positions : 5
- Live tools speed : 5.000 [rpm]
- Live tools power : 1,2 [kW]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 4
- Number of motorized positions : 4
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 6,2 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.711 x 1.275 [mm]
- Machine height : 1.705 [mm]

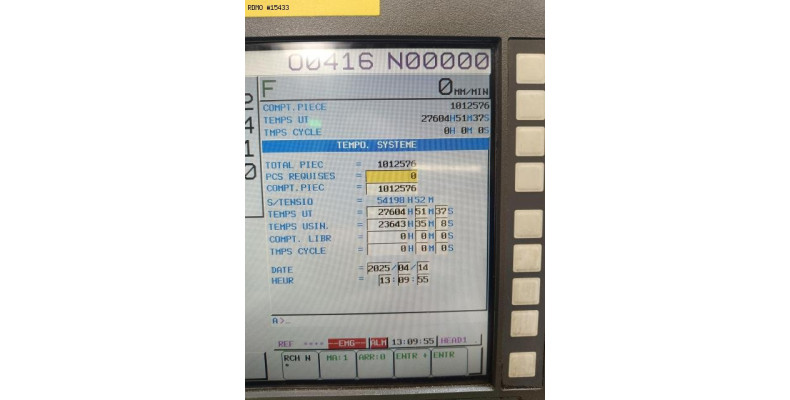

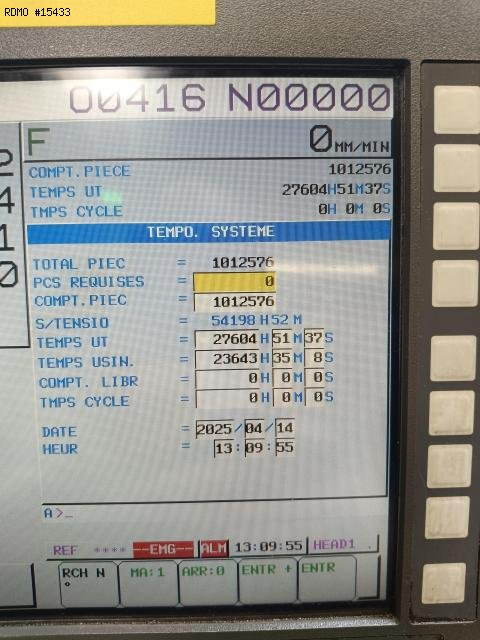

MACHINE HOURS
- Number of hours under power : 54198 [h]
- Number of working hours : 27604 [h]
- Number of spindle hours : 23643 [h]

- CNC : Fanuc 32i-B
- 3 colors status lamp
- Rotating guide bush
- Coolant tank

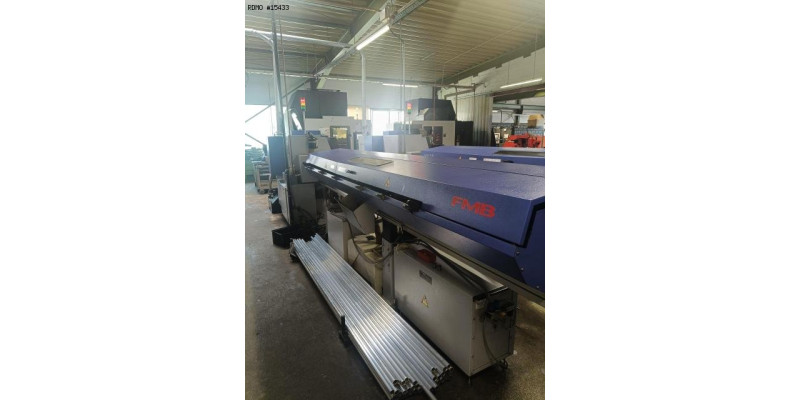

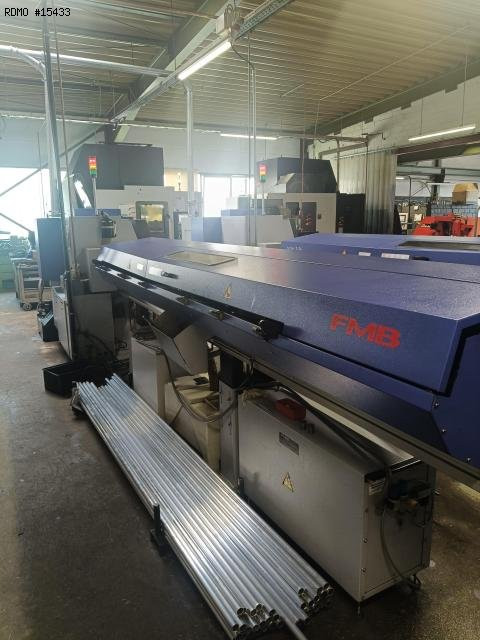

- Bar loader : FMB TURBO 3- 36
- Ejection of workpiece
- Parts catcher
- Parts conveying strip
- Electric transformer
