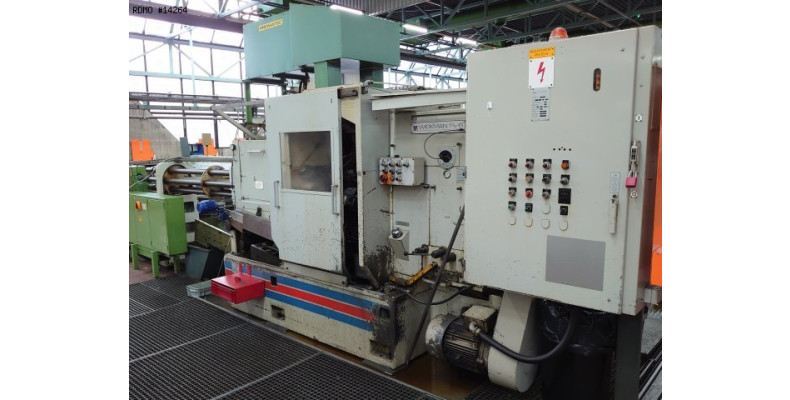

WICKMAN 1'3/8-6

14264
Brand: WICKMAN
Model: 1'3/8-6
Year: 1990
Serial: 20704
14264
WICKMAN 1'3/8-6
Brand: WICKMAN
Model: 1'3/8-6
Year: 1990
Serial: 20704

Caracteristics & Equipment

Caracteristics
- maxi bar diameter : 35 [mm]
- maxi feed length : 177 [mm]
- maxi turning length : 88.9 [mm]
- number of spindles : 6
- number of cross slides : 6
- electromagnetic clutch
- number of spindle speeds : 28
- spindle speed: 132-2000 [rpm]
- independent feeds normal strokes : 88.9 [mm]
- dimensions : 6454 x 1467 [mm]
- weight : 8077 [kg]
Equipment
- Pick-up and back burr station 6
- Stock reel and stand
- Magnetic swarf conveyor

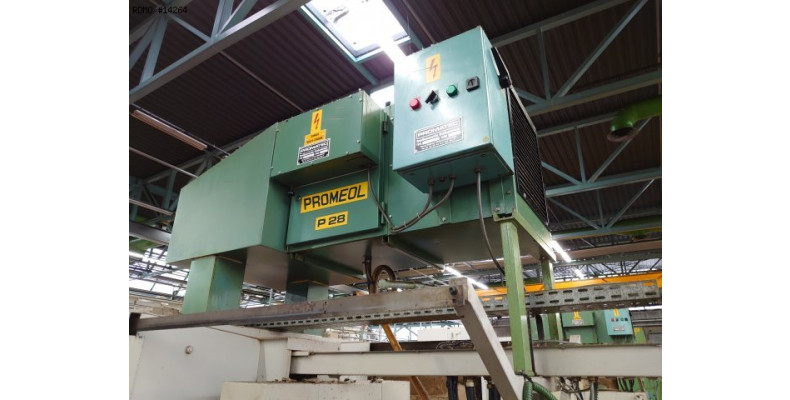

- Fume extractor
- Part catcher
- End of bar catcher
- Part belt conveyor
- threading ttachment station 5 with pneumatic clucth Logan
- Tank with yhigh pressure pump
- Bracket tollholder for center bloc stations 1,2,3
- Independant bracket tollholdr station 4

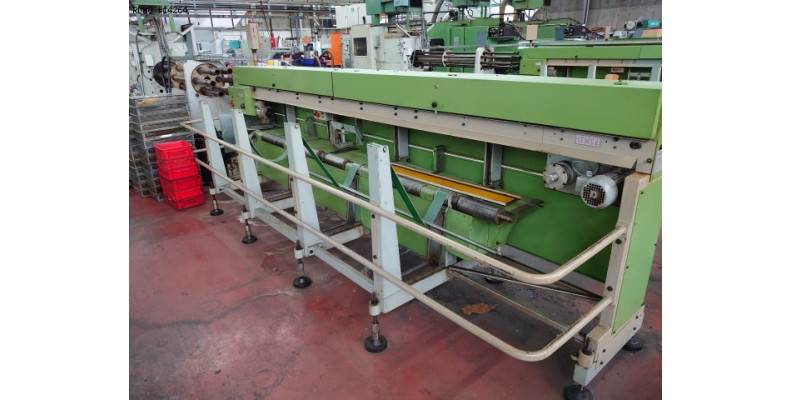

- barloader IEMCA PRA40/42F
