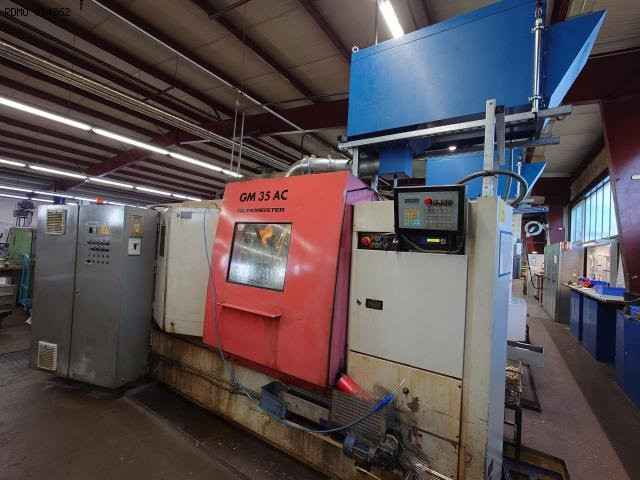

GILDEMEISTER GM 35-6

Turning Multispindle lathe

14862

PDF datasheet to download:

Brand: GILDEMEISTER

Model: GM 35-6

Year: 2019

Serial: 8018491125B

14862

GILDEMEISTER GM 35-6

Turning Multispindle lathe

PDF datasheet to download:

Brand: GILDEMEISTER

Model: GM 35-6

Year: 2019

Serial: 8018491125B

Ask Price

Caracteristics

- Number of spindles : 6
- Number of counter-spindles : 1
- Max. travel of front spindles : 120 [mm]
- Max. bar feed : 130 [mm]
SPINDLES
* Max. bar diameter : 35 [mm]
* Spindle speeds : 218-4000 [rpm]
COUNTER-SPINDLE
- Single-acting hydraulic counter-spindle
- Counter-spindle position : 6
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 5950 x 1680 x1980 [mm]
- Machine weight : 10500 [kg]

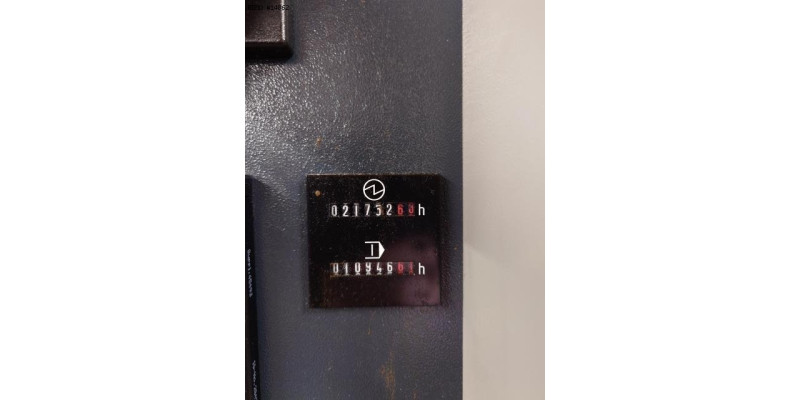

- Number of working hours : 10946 [h]

Equipment

- Standard cutting carriage, in position : 6
- Hydraulic cylinder for rear attachment, in position : 6
- Fixed front spindles, in position : 1,2,3,4,5
- Thread milling and polygon unit
- Parts catcher
- Parts conveying strip
- Chips conveyor
- Coolant tank
- Bar loader : Iemca PRA 40/42F
- Bar holder and stand
- Bar holder housing
- Oil mist extractor : Donaldson
