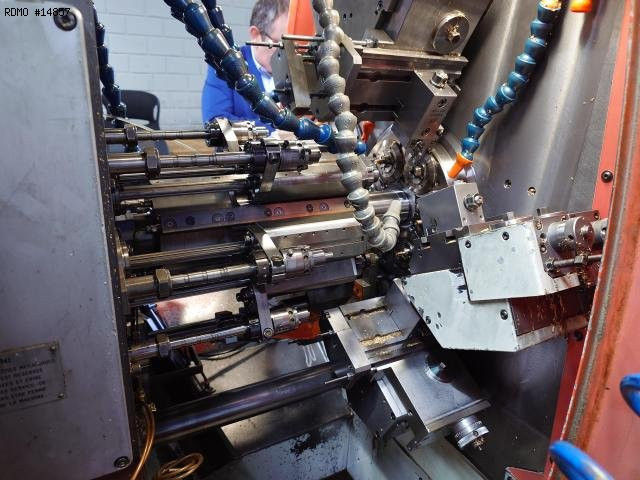

GILDEMEISTER GM 16-6

Turning Multispindle lathe

14857

PDF datasheet to download:

Brand: GILDEMEISTER

Model: GM 16-6

Year: 2001

Serial: 5302-0275

14857

GILDEMEISTER GM 16-6

Turning Multispindle lathe

PDF datasheet to download:

Brand: GILDEMEISTER

Model: GM 16-6

Year: 2001

Serial: 5302-0275

Ask Price

Caracteristics

- Number of spindles : 6
- Number of counter-spindles : 1
- Hirth teeth
- Crosses slides, in position : 1,2,4,5
- Max. travel of transverse slides : 28 [mm]
- Max. travel of crossed slides : 45 [mm]
- Max. travel of front spindles : 165 [mm]
- Max. bar feed : 80 [mm]
- Indexing time : 0.4 [sec]
- Machining time : 0.9 -50 [sec]
* Max. bar diameter : 16 [mm]
* Spindle speeds : 600 - 9000 [rpm]
COUNTER-SPINDLE
- Single-acting hydraulic counter-spindle
- Counter-spindle position : 6
* Max. bar diameter : 16 [mm]
* Spindle speeds : 600-9000 [rpm]
* Spindle power : 11 [kW]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 4400x1100 [mm]
- Machine weight : 4800 [kg]

Equipment

- Double mechanical cut and return slide, in position : 6
- Rotary front spindles, in position : 1,2,3,4,5
- Parts catcher
- Parts conveying strip
- Bar waste chute
- Chips conveyor
- Coolant tank
- Bar loader : Iemca PRA40/42P
- Bar holder and stand
- Bar holder housing
- Oil mist extractor : AR Filtrazioni
- Number of transverse tool holders : 6
