- Number of spindles : 6
- Number of counter-spindles : 1
- Crosses slides, in position : 1,2,4
- Max. travel of crossed slides : 50 [mm]
- Max. travel of front spindles : 86 [mm]
- Max. bar feed : 100 [mm]
- Indexing time : 0.7 [sec]
- Machining time : 1.4 - 60 [sec]
SPINDLES
* Max. bar diameter : 20 [mm]
* Spindle speeds : 420-5000 [rpm]
* Spindle power : 11 [kW]
COUNTER-SPINDLE
- AUTOR double-acting pneumatic counter-spindle
- Counter-spindle position : 6
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 11 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 3700 x1500 [mm]
- Machine weight : 6000 [kg]
Equipment
- Double mechanical cut and return slide, in position : 6
- 2-axis NC carriage, in position : 5
- Fixed front spindles, in position : 1,2,3,4,5
- Thread milling and polygon unit
- Parts catcher
- Parts conveying strip
- Bar waste chute
- Chips conveyor
- Coolant tank
* with high-pressure pump
- Cutting oil filter : FCG
- Bar loader : Iemca PRA 40/42P
- Bar holder and stand
- Bar holder housing

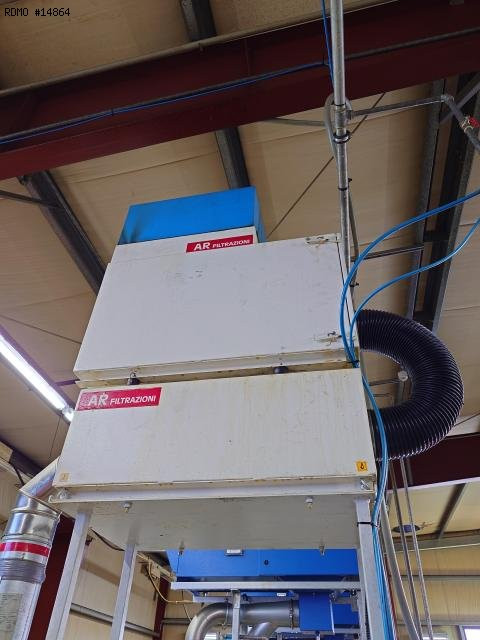

- Oil mist extractor : AR Filtrazioni
- Number of transverse tool holders : 3
