GILDEMEISTER GM 20-6

Turning Multispindle lathe

14858

PDF datasheet to download:

Brand: GILDEMEISTER

Model: GM 20-6

Year: 2014

Serial: 8013020678B

14858

GILDEMEISTER GM 20-6

Turning Multispindle lathe

PDF datasheet to download:

Brand: GILDEMEISTER

Model: GM 20-6

Year: 2014

Serial: 8013020678B

Ask Price

Caracteristics

- Number of spindles : 6
- Number of counter-spindles : 1
- Crosses slides, in position : 1,2,4,5
- Max. travel of crossed slides : 50 [mm]
- Max. travel of front spindles : 86 [mm]
- Max. bar feed : 100 [mm]
- Indexing time : 0.7 [sec]
- Machining time : 1.4 - 60 [sec]
SPINDLES
- AC motor for feed rates
- AC motor for spindle speeds
* Max. bar diameter : 20 [mm]
* Spindle speeds : 420-5000 [rpm]
* Spindle power : 11 [kW]
COUNTER-SPINDLE
- Double-acting hydraulic counter-spindle
- Counter-spindle position : 6
* Spindle speeds : 5000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 11 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 3700x1500 [mm]
- Machine weight : 6000 [kg]
MACHINE HOURS
- Number of working hours : 29592 [h]

Equipment

- Pick-up brake
- Double mechanical cutting and hydraulic rear-mounted slide, in position : 6
- Independent front control, in position : 2
- Fixed front spindles, in position : 1,2,3,5
- Thread milling and polygon unit
- Parts catcher
- Parts conveying strip
- Bar waste chute
- Chips conveyor
- Coolant tank

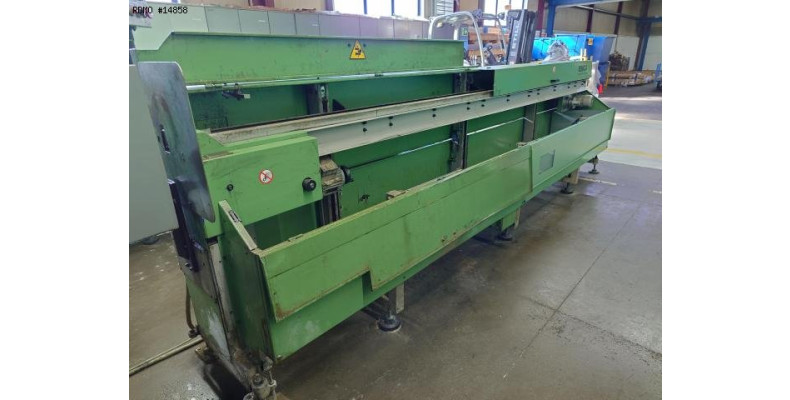

- Bar loader : Iemca PRA 40/42P
- Bar holder and stand
- Bar holder housing
- Oil mist extractor : Donaldson
- Number of transverse tool holders : 3
