HWACHEON T2-2T YSMC 8 axis

- Number of spindles : 2
- Number of axes : 8
- Number of turrets : 2
MAIN SPINDLE
- Spindle nose : A2-6
- Spindle power : 15 [kW]
- Spindle speeds : 5000 [rpm]
- Max. bar diameter : 65 [mm]
- Max. chuck diameter : 210 [mm]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Spindle nose : A2-6
- Spindle power : 15 [kW]
- Spindle speeds : 5000 [rpm]
- Max. bar diameter : 65 [mm]
- Max. chuck diameter : 210 [mm]
- C axis indexing precision : 0,001 [°]
- Travel : 550 [mm]

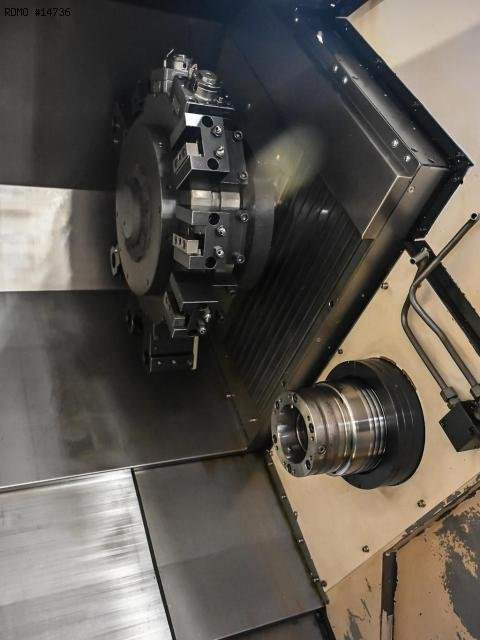

UPPER RIGHT TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 245 x 520 [mm]
- Y stroke : +/- 50 [mm]
- Live tools speed : 6000 [rpm]
- Live tools power : 7.5 [kW]
LOWER LEFT TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 210 x 520 [mm]
- Y stroke : +/- 50 [mm]
- Live tools speed : 6000 [rpm]
- Live tools power : 7.5 [kW]
POWER SUPPLY
- Total installed power : 85 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 5000 x 3500 [mm]
- Machine height : 2500 [mm]
- Machine weight : 9500 [kg]
MACHINE HOURS
- Number of working hours : 5811 [h]

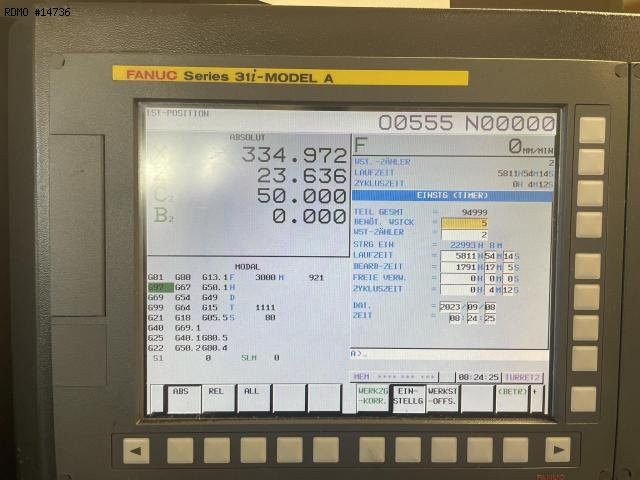

- CNC : Fanuc 31i-Model A
- Electronic handwheel
- 3 colors status lamp
- Coolant tank
* with high-pressure pump : 2 x 15 [bars]
* with cooling unit for coolant
- Chips conveyor : Droite
- Parts catcher
- Parts conveying strip
- Bar loader : IRCO SIMAG 70.1
- Tool probe
- Number of turning tool holders : Porte-outils radial x3 / Porte-outils axial x2
- Number of fixed tool holders : Voir photo
- Collet chuck : 2 x HAINBUCH
