STUDER S36 CNC 2 axis

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder cnc

PDF datasheet to download:

Brand: STUDER

Model: S36 CNC

Year: 2004

Serial: 114

Ask Price

Caracteristics

- Number of axes : 3
- Centers height : 175 [mm]
- Distance between centers : 1000 [mm]
LINEAR AXES
- Grinding length : 500 [mm]
- Travels X x Z : 267 X 650 [mm]
GRINDING WHEEL HOLDER HEADSTOCK
- Continuous orientation : +/-8,5 [°]
- External wheel dimensions : 500 x 80 x 203 [mm]
- Grinding wheel holder headstock power : 7,5 [kW]
- Cutting speed : 44 [m/s]
PART HOLDER HEADSTOCK
- Taper type : CM5
- Axis C : +/-0.5[°]
- Power : 1 [kW]
- Rotation speed : 30-1000 [Rpm]
TAILSTOCK
- Taper type : CM3
- Quill travel : 35 [mm]
- Quill diameter : 50 [mm]
- Max. part weight between centers : 130 [kg]

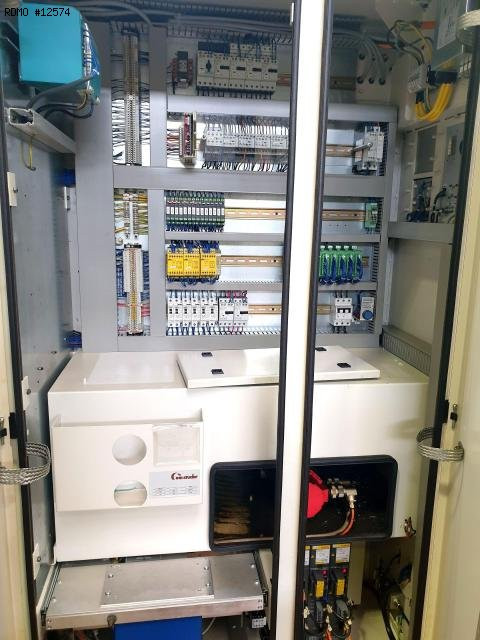

ELECTRIC SUPPLY
- Supply voltage : 400V 50 Hz
- Machine dimensions : 2700 x 2350 x H. 2100 [mm]
- Weight : 4 000 [kg]
HOURS
- Working hours : 17.775 [h]

Equipment

- CNC FANUC 16i-TA control
- Pictogramming
- Studer RELEASE C
- Electronic handwheel
- SENSITRON
- Dynamic balancing device : Hydrobalance HBA 40000-1
- Automatic length probe arm MOVOMATIC C25
- Automatic outer diameter probe arm in-process MOVOMATIC
- Grinding wheel safety guard with automatic toppling
- Fixed grinding device upon part-holder headstock
- Coolant tank : 375 [l]
- Paper filtering unit
- Oil mist extractor
- Wheel-holders flanges
