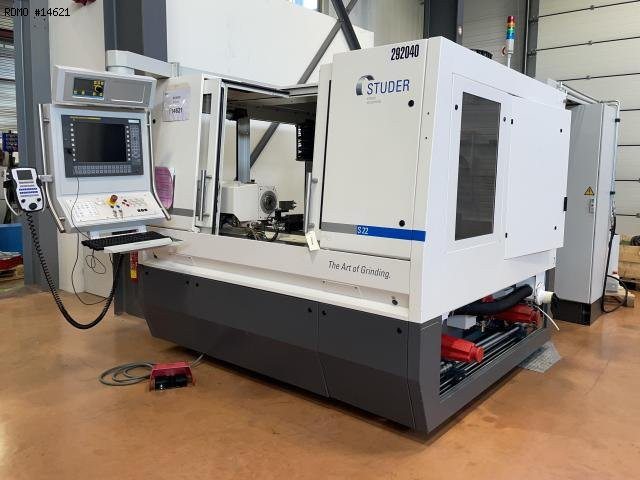

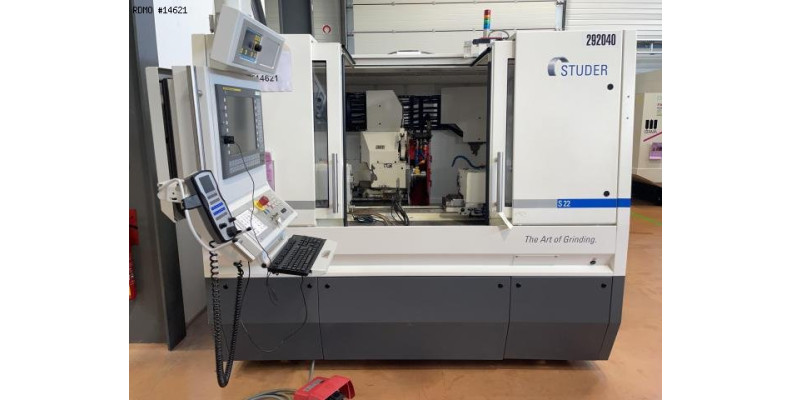

STUDER S22 CNC

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder cnc

14621

PDF datasheet to download:

Brand: STUDER

Model: S22 CNC

Year: 2011

Serial: 018/1040-0029

14621

STUDER S22 CNC

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder cnc

PDF datasheet to download:

Brand: STUDER

Model: S22 CNC

Year: 2011

Serial: 018/1040-0029

Ask Price

Caracteristics

- Axes number : 6
- Centers height : 175 [mm]
- Distance between centers : 650[mm]
LINEAR AXES
- Grinding length : 800 mm
- Strokes X x Z: 310 X 850 [mm]

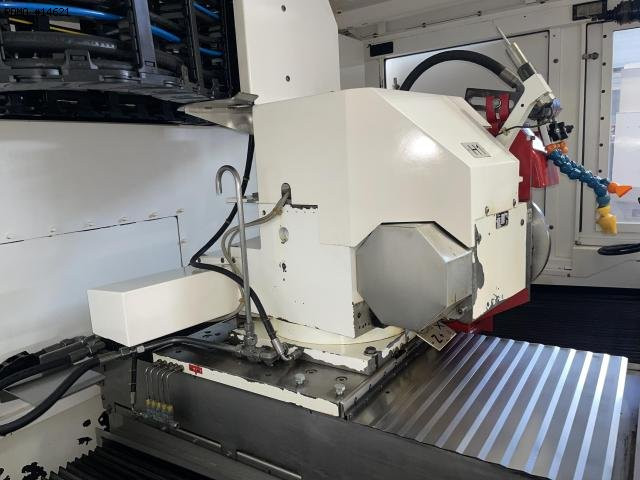

GRINDING WHEEL HOLDERS HEADSTOCK
- Taper type :
- Continuous orientation ( B axe) : +/- 9 [°]
- C Axis indexing precision ( High speed machining): 0.001 [°]
- External grinding wheel dimensions : 500 x 80 x 20 [mm]
- Grinding wheel holder headstock power : 12.5.5 [kW]
- Rotation speed : 1400-3200 [Rpm]
PART HOLDER HEADSTOCK
- Taper type : ISO50
- Axis C indexing precision : 0.001 [°]
- Power : 4[kW]
- Rotation speed : 1-1000 [Rpm]
SYNCHRONIZED COUNTER SPINDLE
- Taper type : CM4
- Quill stroke (w axe) : 90 [mm]
- Quill diameter : 50 [mm]
- Power :1.6[kW]
- Max. part weight between centers :50 [Kg]
ELECTRICAL SUPPLY
- Supply tension : 400 [V] 50[Hz]
MACHINE HOURS
- Number of working hours : 36000

Equipment

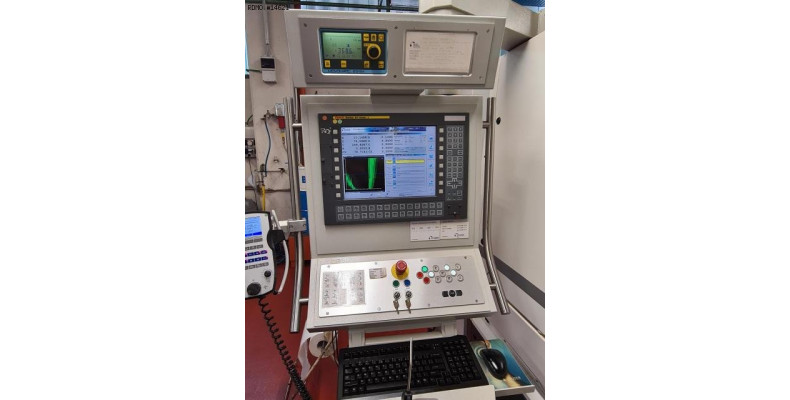

- CNC FANUC 31i-A control
- Sofwares
* StuderWIN
* Pictogramming
* StuderThread only cycles
* StuderTechnilogy
- Remote control with electronic handle
- Measuring rules on axes X and Z
- Automatic length probe arm MOVOMATIC C25
- In-process external diameter probe arm MOVOMATIC DM205
- Coolant tank 375 liters
- Paper filter
- Oil mist aspiration
- Grinding wheel loading arm
- Dressing wheel diamond device ( Dia 100mm)
- SENSITRON
- Automotic dynamic balancing DittelM6000
- Grinding wheel holder flanges
- Interface for AROBOTECH steady
- Interface B3 PROFIBUS for automatic loading

PDF datasheet to download:
