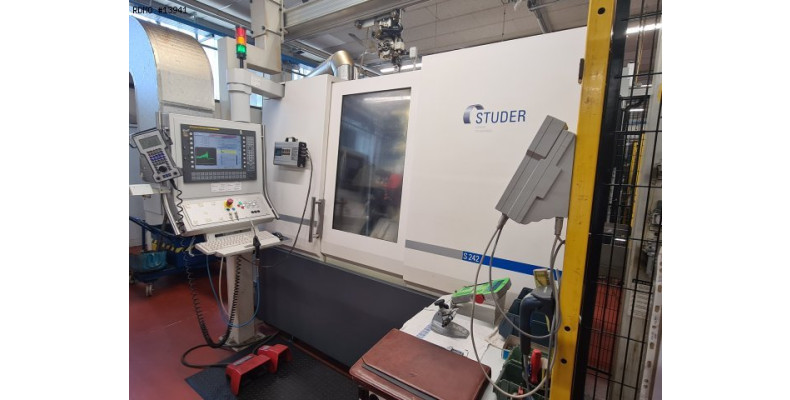

STUDER S242

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder cnc

13941

PDF datasheet to download:

Brand: STUDER

Model: S242

Year: 2010

Serial:

13941

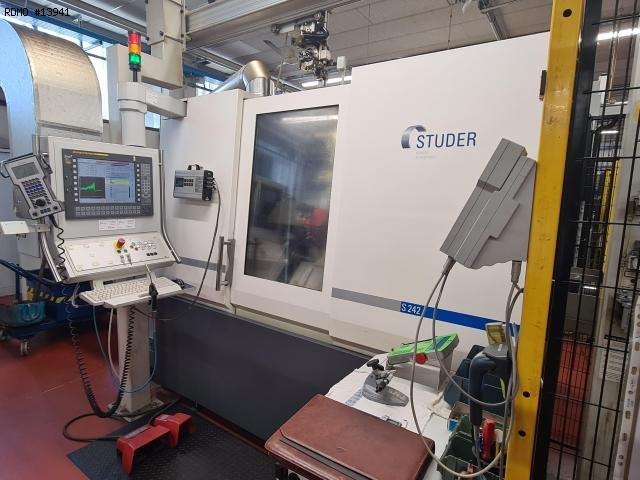

STUDER S242

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder cnc

PDF datasheet to download:

Brand: STUDER

Model: S242

Year: 2010

Serial:

Ask Price

Caracteristics

- Number of axes :
- Distance between centers : 400 [mm]
- Useful diameter : 180 [mm]
LINEAR AXES
- Travel X1 x X2 : 220 [mm]
- Travel Z : 850 [mm]
- Resolution X x Z : 0,0001 [mm]

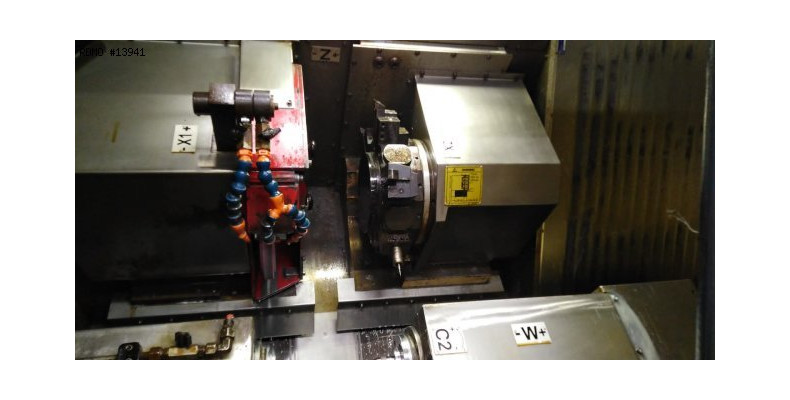

TURRET
- Number of fixed positions : 12
- Tool holder : VDI 30
GRINDING-WHEEL HOLDER HEADSTOCK
- Right external grinding (pos.1) :
* Grinding wheel dimensions (Ø x width x boring) : 400 x 50 x 127 [mm]
* Training power : 6.8 [kW]
PART-HOLDER HEADSTOCK
- Max rotation speed : 7500 [Rpm]
- Rotation speed ( synchronous operation ) : 1 - 5000 [tr/min]
- Taper type : CM4
- C axe : 0.001 [°]
- Training power : 10.5 [kW]
TAILSTOCK
- Max rotation speed : 7500 [Rpm]
- Rotation speed (synchronous operation) : 1 - 5000 [tr/min]
- C axe : 0.001 [°]
- Internal taper : MK4
- Micrometric adjustment : +/- 40 [microns]
- Training power : 10.5 [kW]
ELECTRICAL SUPPLY
- Power : 45 [KVA]

FLOOR SPACE
- Floor dimensions : 2800 x 3960 [mm]
- Machine weight : 7600 [kg]

MACHINE HOURS
- Hours under power : 57000 [h]

Equipment

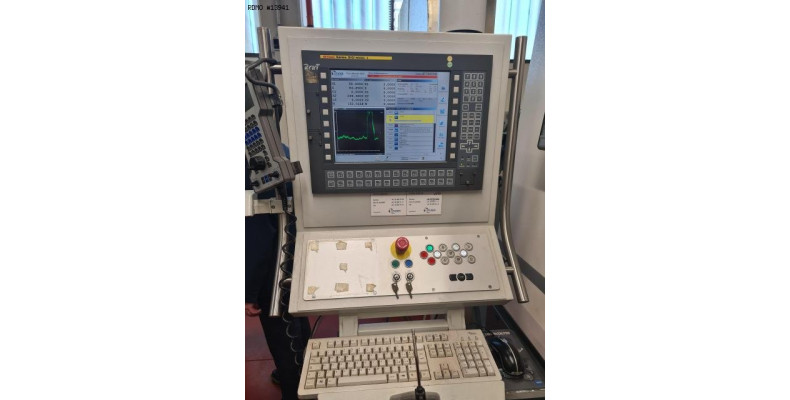

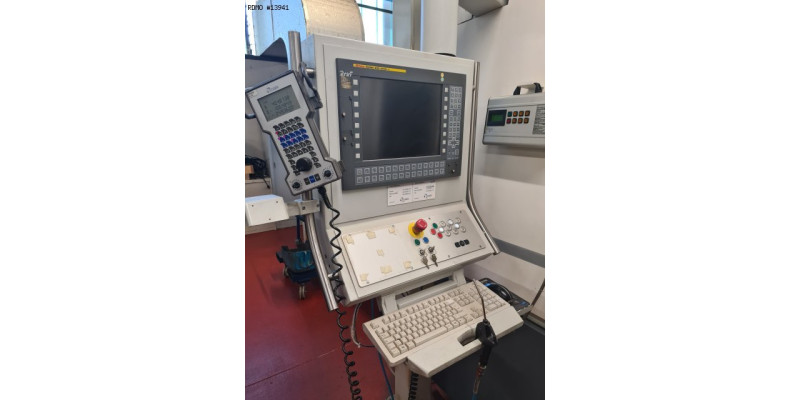

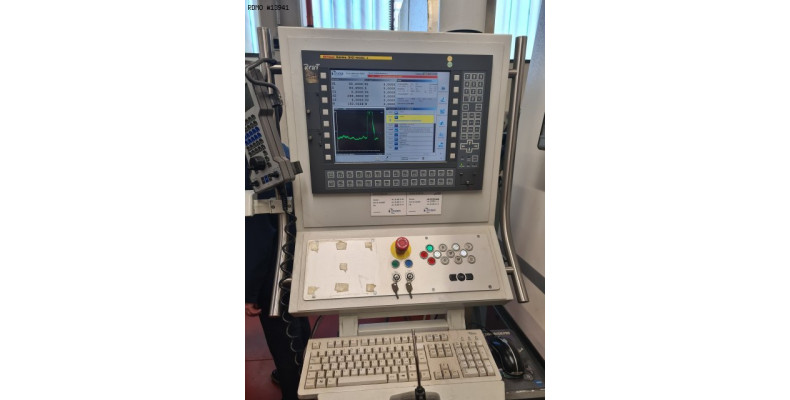

- CN FANUC 310i-modelA
- StuderWIN software
- Interface : RS232C
- Remote electronic handwheel
- Turret with length probe Renishaw LP2

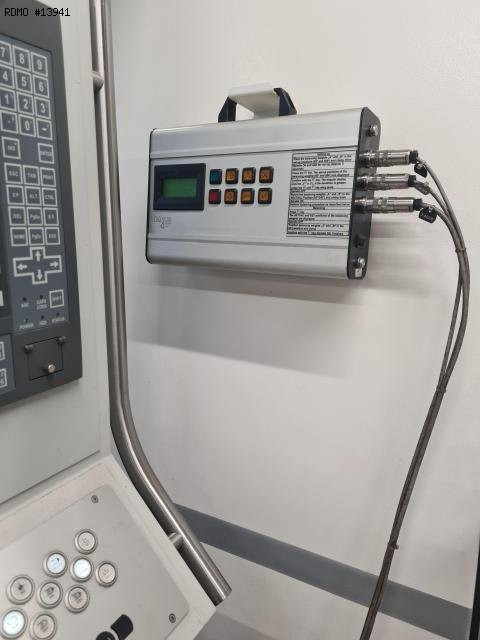

- Marposs probes for diameters (multirange) and Z4 axes pour positionning

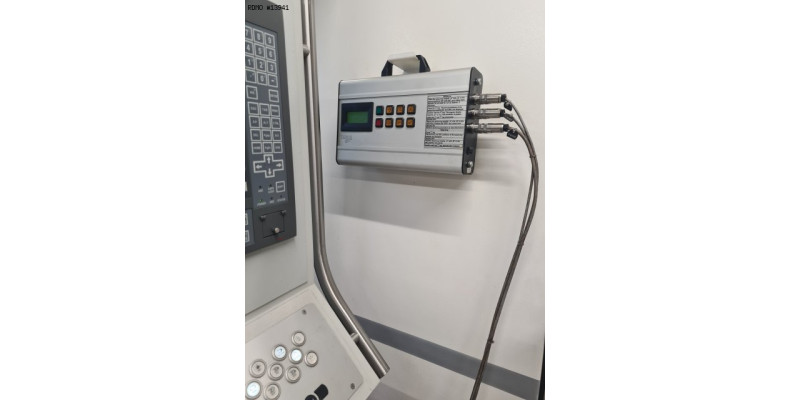

- Semi-automatic balancing MPM.3 BMT100 M.24

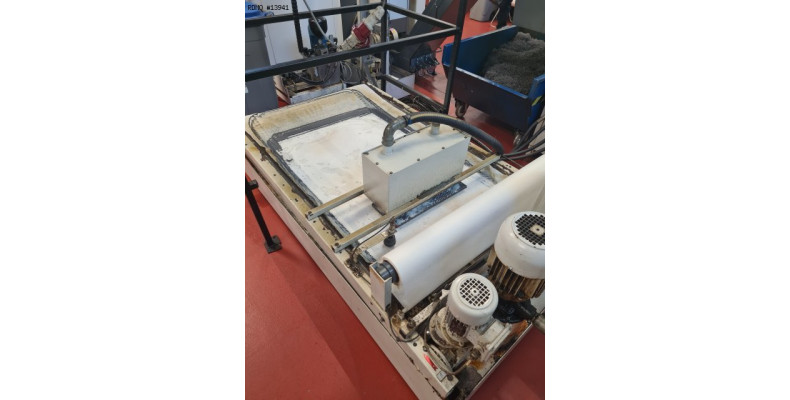

- Lubricating tank 480 L
* with paper filtration
* with magnetic filter

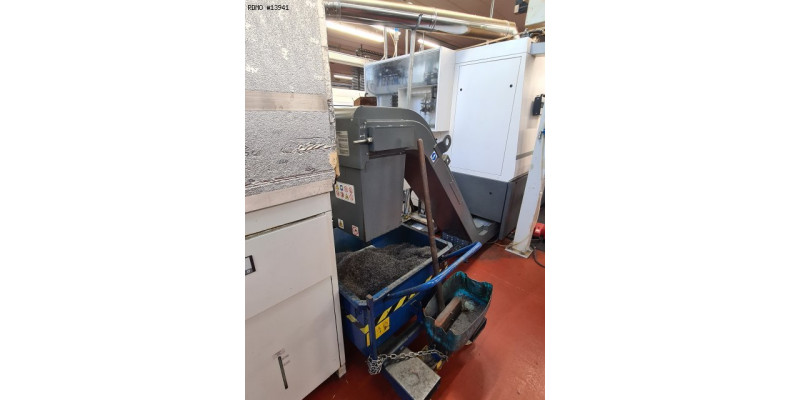

- Chips conveyor

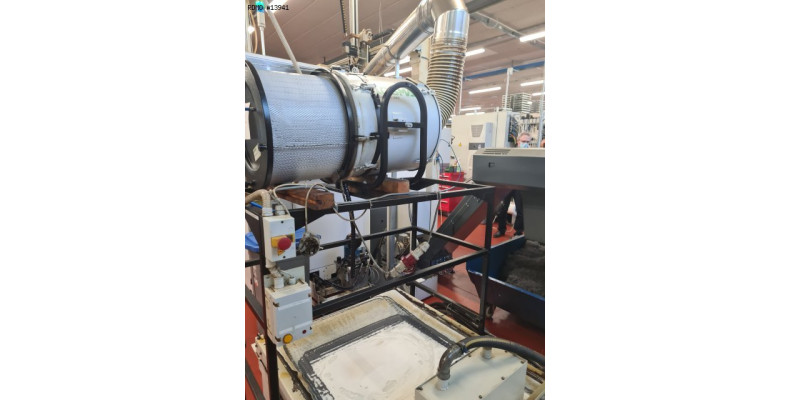

- Oil mist suction

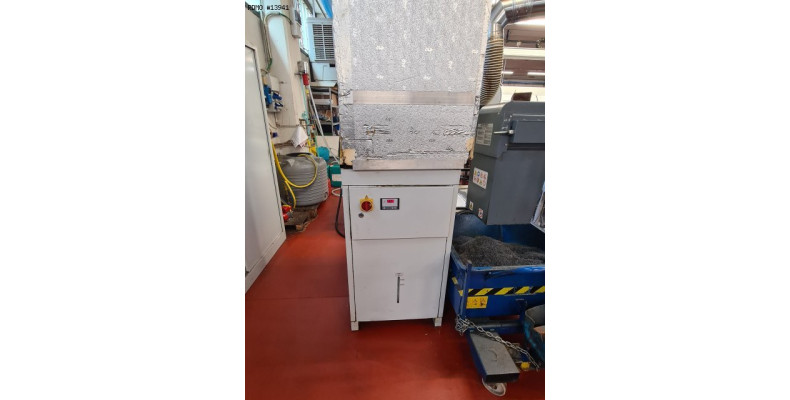

- Cooling unit for wheel motor
- Electronic contact detection Dittel AE6000
- Fixed diamond grinding device
- Electrical cabinet air conditioning
- Balancing shaft
- Interface for automatic loading system
