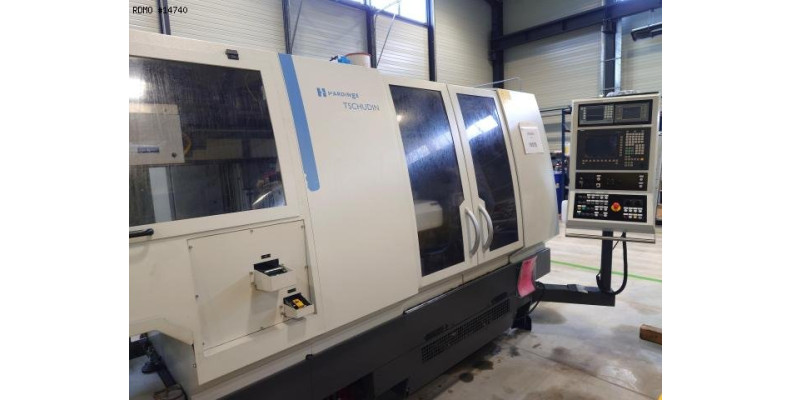

- Distance between tips: 400 [mm]
- Tip height: 125 [mm]
- max. workpiece weight between tips: 150 [kg]
- Z axis stroke : 600 [mm]
- Z axis rapid feed : 15 [m/min]
- Table orientation : +/- 6 [°]
WHEELHEAD
- grinding wheel dimensions: 500 x 80 x 203.2 [mm]
- peripheral speed: 60 [m/sec]
- Power : 9.5 [kW]
- head position : -30 [°]
WORKPIECEHEAD
- Type of cone : CM5
- Speeds : 5 - 1500 [rpm]
- Power : 2.1 [kW]
- Bore : 34 [mm]
TAILSTOCK
- Cone : CM3
- Quill stroke : 80 [mm]
POWER SUPPLY
- Voltage: 400 [V]
- Frequency: 50 [Hz]
- Installed power: 16 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 3.650 x 3.050 [mm]
- Machine height : 2.000 [mm]
- Machine weight : 4.850 [kg]
MACHINE HOURS
- Number of working hours : 42000 [h]
Equipment

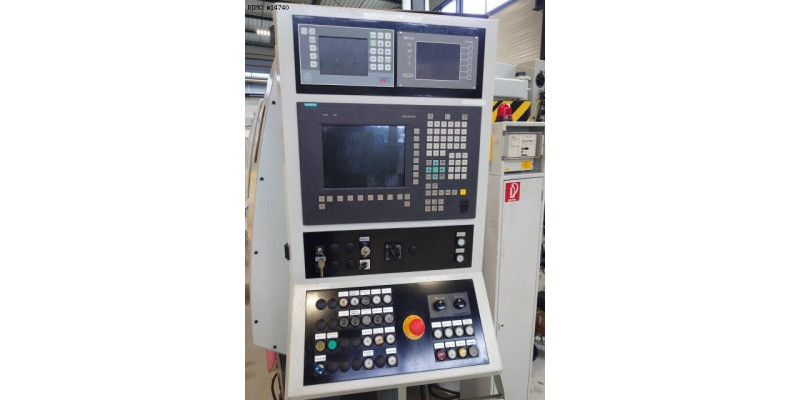

- CNC : Siemens 840 D
- Remote electronic handwheel
- Automatic tailstock
- Diameter and length control
- Loading/unloading robot
- Cooling unit
- Coolant tank
- Oil mist extractor
- Wheel diamer
- 2nd grinding head with CBN wheel and rotary wheel dresser
- Fire extinguisher
*NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
