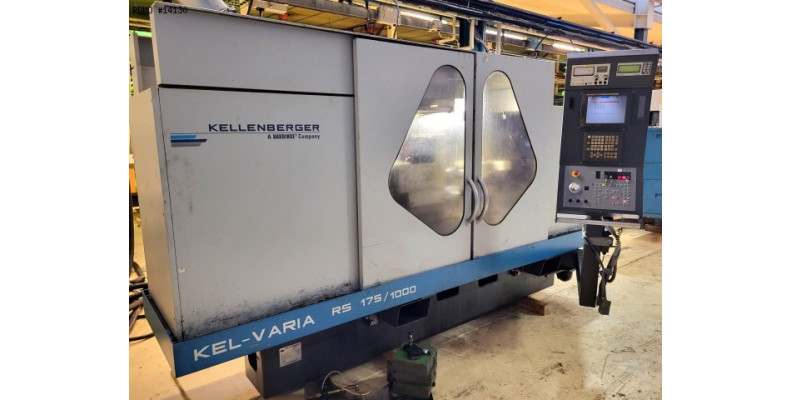

KELLENBERGER KEL-VARIA RS 175/1000 4 axis

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder cnc

14130

Brand: KELLENBERGER

Model: KEL-VARIA RS 175/1000

Year: 2004

Serial: 650621

14130

KELLENBERGER KEL-VARIA RS 175/1000 4 axis

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder cnc

Brand: KELLENBERGER

Model: KEL-VARIA RS 175/1000

Year: 2004

Serial: 650621

Ask Price

Caracteristics

CAPACITY
- center height : 175 [mm]
- distance between centers : 1000 [mm]
- max. workpiece weight : 150 [kg]
- travels (Z/X) : 1.150 x 320 [mm]
- feeds max (Z/X) : 15 / 7,5 [m/min]
- table swivelling : 0 / +9 [°]

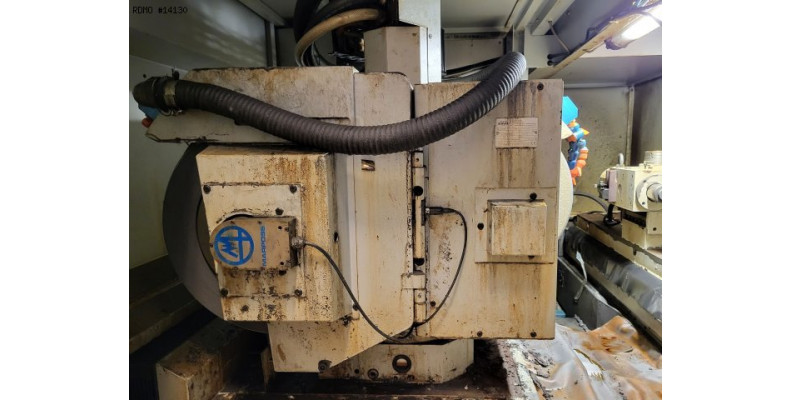

RS TYPE WHEELHEAD
- type : 2 external wheels right / right
- travel B-axis : -210 / +30 [°]
- indexing precision B-axis : 2,5 [°]
- wheel dimensions (Ø x width x bore) T1 : 500 x 100 x 203 [mm]
- wheel dimensions (Ø x width x bore) T2 : 500 x 100 x 203 [mm]
- motor power : 9,2 [kW]
- speeds : 1.500 [rpm]

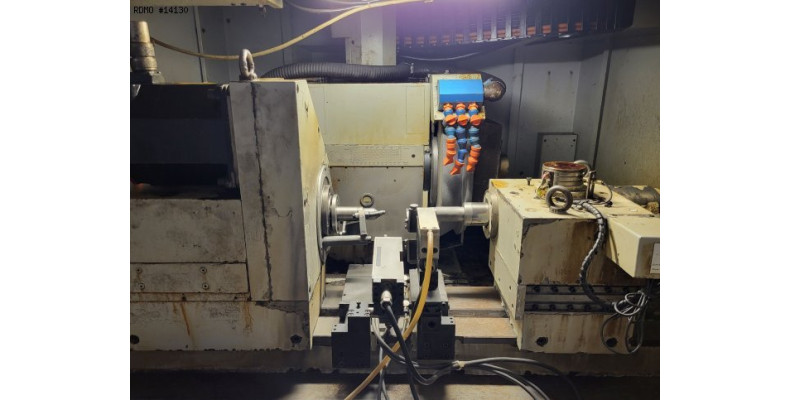

WORKHEAD
- type of cone : MT5
- speeds : 8-800 [rpm]
- power : 2,8 [kW]
TAILSTOCK
- type of cone : MT4
- quill stroke : 50 [mm]
DIMENSIONS
- floor space : 3.600 x 2.000 [mm]
- height : 2.000 [mm]
- weight : 6.000 [kg]

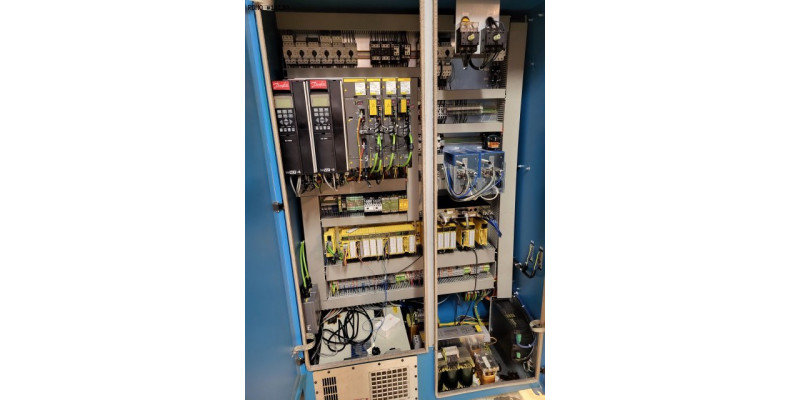

ELECTRICS
- voltage : 400 [V]
- frequency : 50 [Hz]
- installed power : 28 [kVA]
HOURS
- working hours : 11.715 [h]

Equipment

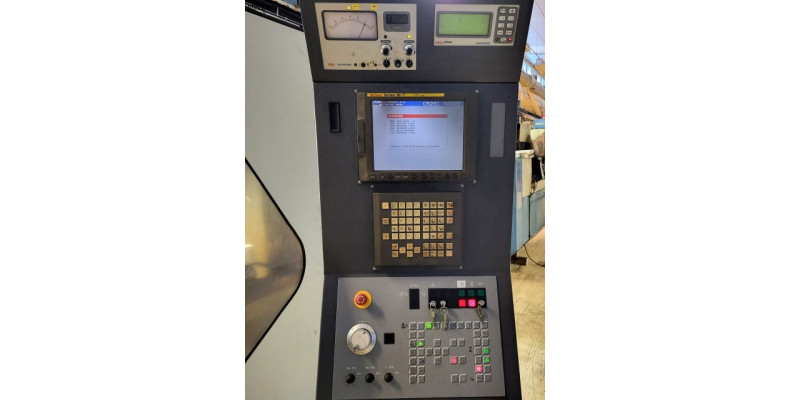

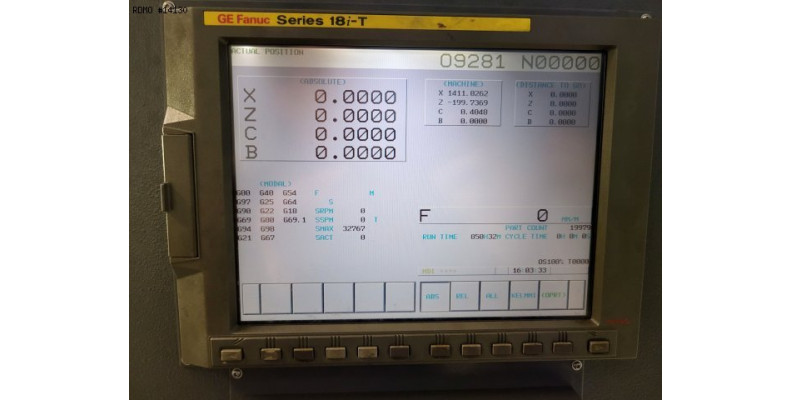

- CNC FANUC 18i-T
- electronic handwheel
- Interface : PCMCIA
- linear scales on axis X/Z
- CNC controlled C axis for workpiece indexing
- tailstock with hydraulic automatic retractation and fine adjustment of concentricity
- electronic contact detection device : MARPOSS E80

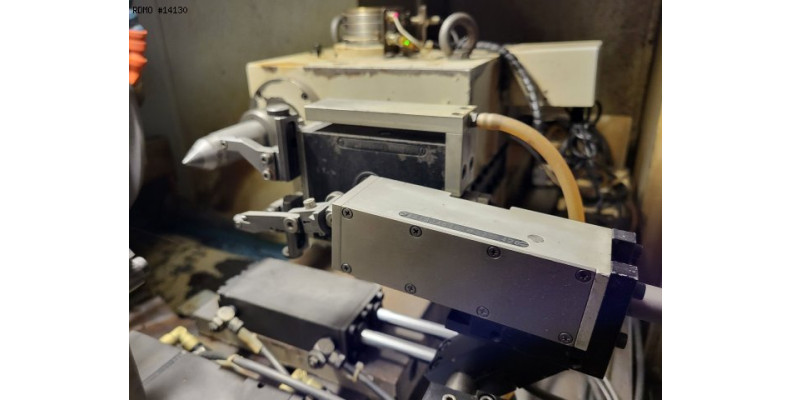

- autocalibration device with diameter probe : MARPOSS
- autocalibration device with lenght probe : MARPOSS
- dynamic balancing device for both wheels : MARPOSS E82
- dressing device upon tailstock
- 2 fix dressing devices upon bed

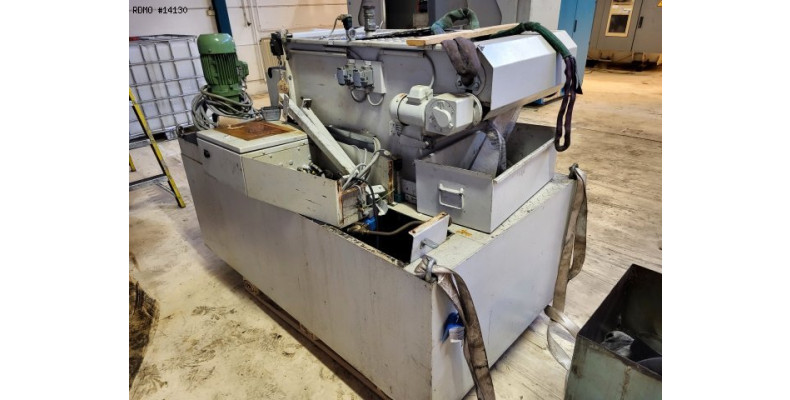

- coolant tank : 1000 [l]
* with paper filtering unit : KNOLL HF150/1000
- dust extractor : 3NINE Lina
- balancing shaft
- balancing support
- 2 wheel-holders
- 2 wheels
- collection of centers

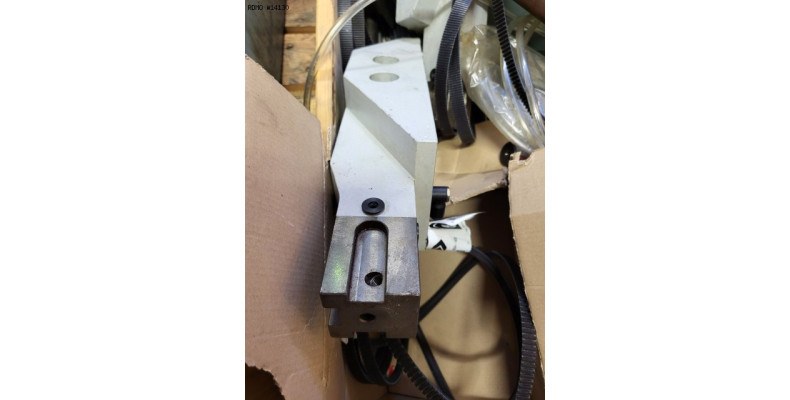

- collection of spare parts
