HELLER FT 8000 5 axis

Milling Vertical machining center

PDF datasheet to download:

Brand: HELLER

Model: FT 8000

Year: 2015

Serial: 54439

Ask Price

Caracteristics

- Number of axes : 5

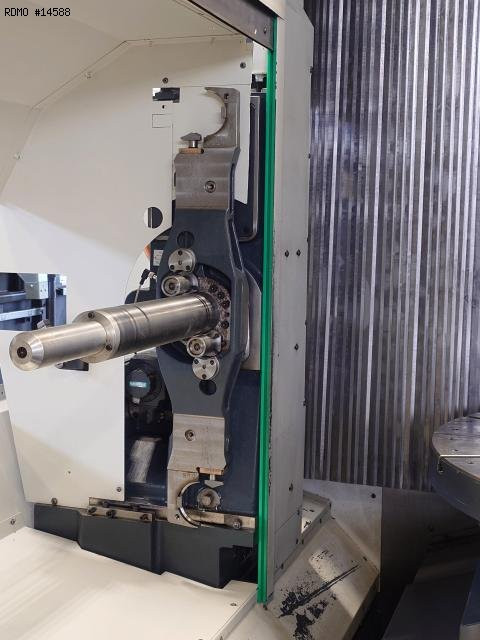

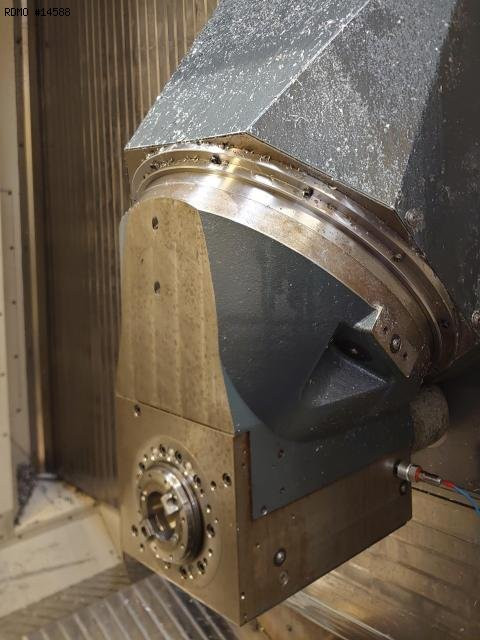

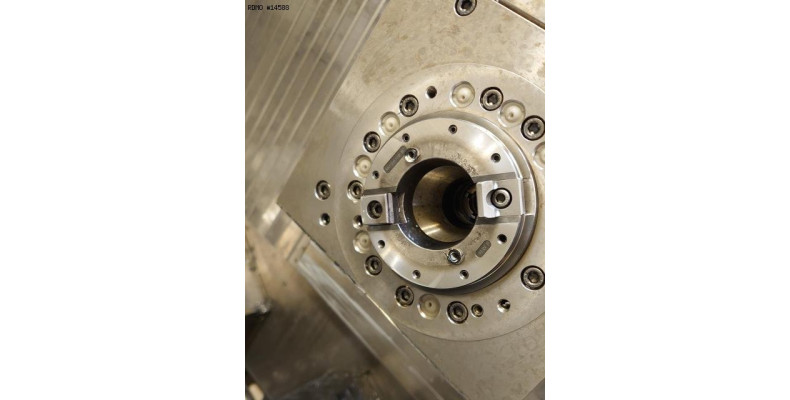

MILLING SPINDLE
- Tool holder type : SK50
- Spindle power : 60 [kW]
- Spindle speeds : 50-8000 [rpm]
- Gearbox
- Speed ranges : 2
LINEAR AXES
- Travels on X/Y/Z axes : 1250 / 1200 / 1400 [mm]
- Rapid traverses rates (X/Y/Z) : 50 [m/min]
A ROTARY AXIS
- Travel : +15 / -190 [°]
- Indexing precision : 0.001 [°]
B ROTARY AXIS
- Travel : (+/-) 360 [°]
- Indexing precision : 0.001 [°]
- Cutting feed rate : 10 [rpm]

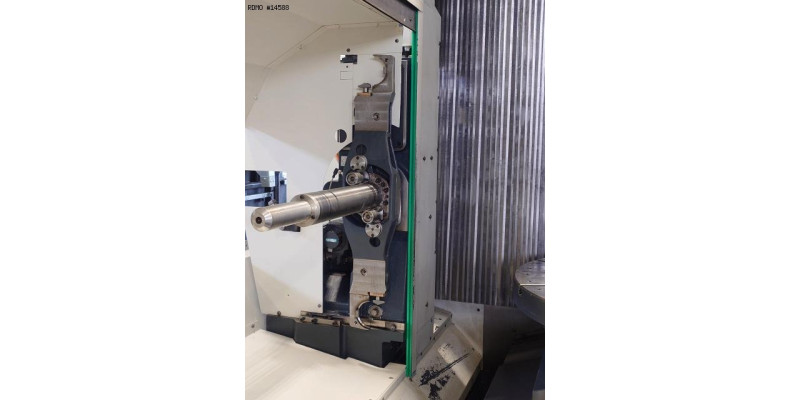

TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 50
- Tool exchange time : 6.3 [sec]

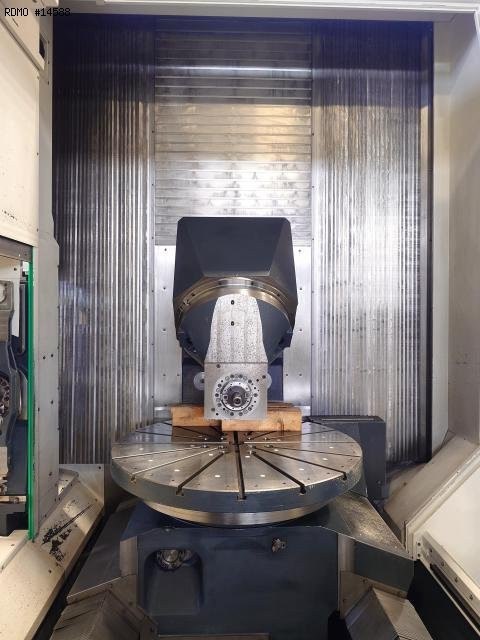

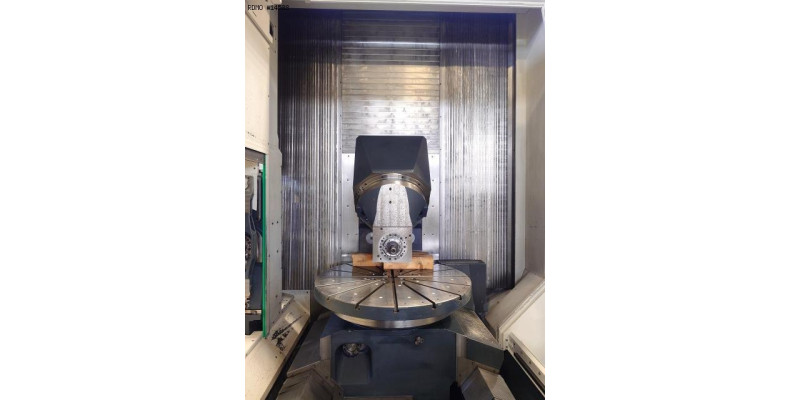

TABLE
- Table dimensions : 1100 [mm]
- Maximum weight upon table : 2000 [kg]
- Maximum part dimensions (diameter x height) : 1810 x 1400 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 50 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 7400 X 5400 [mm]
- Machine height : 4800 [mm]
MACHINE HOURS

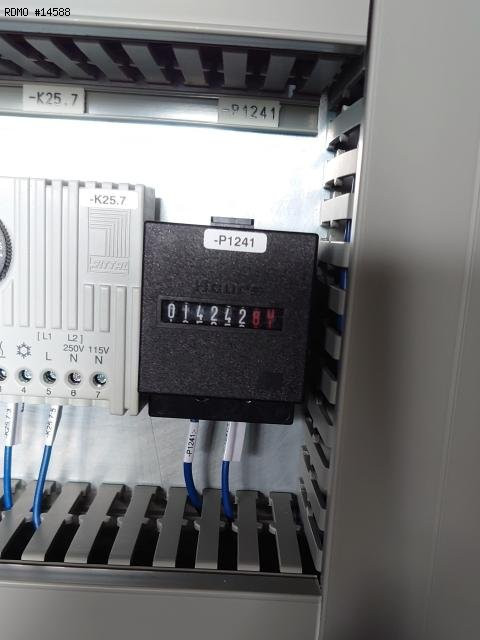

- Number of hours under power : 14238 [h]

Equipment

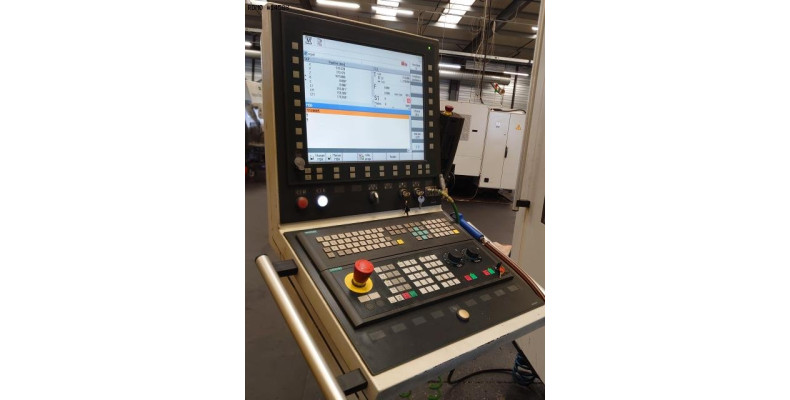

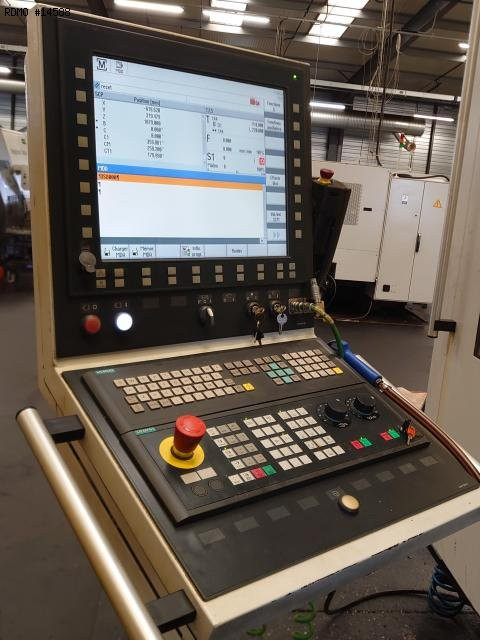

- CNC : Siemens 840 D SL
- Interface : Ethernet / RS232 / USB / PCMCIA
- Interactive programming : Shopmill
- Electronic handwheel
- Linear scales
- Rigid tapping

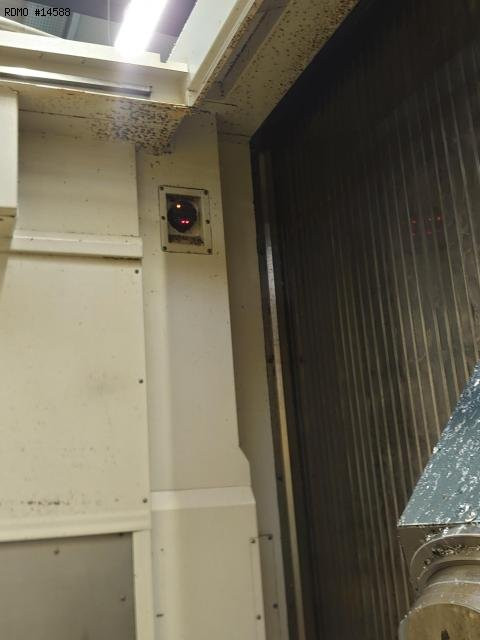

- 3 colors status lamp

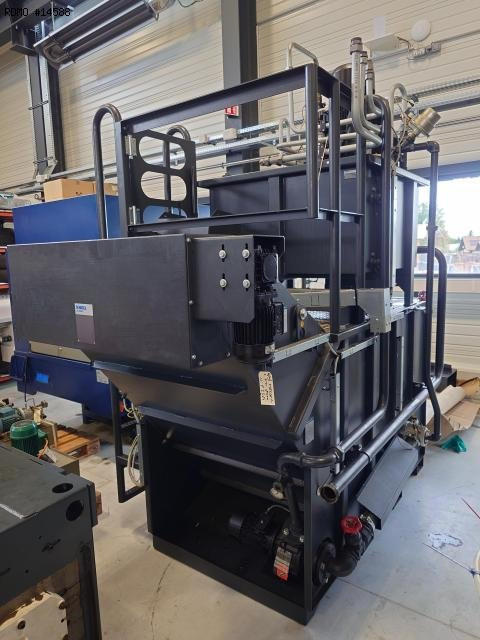

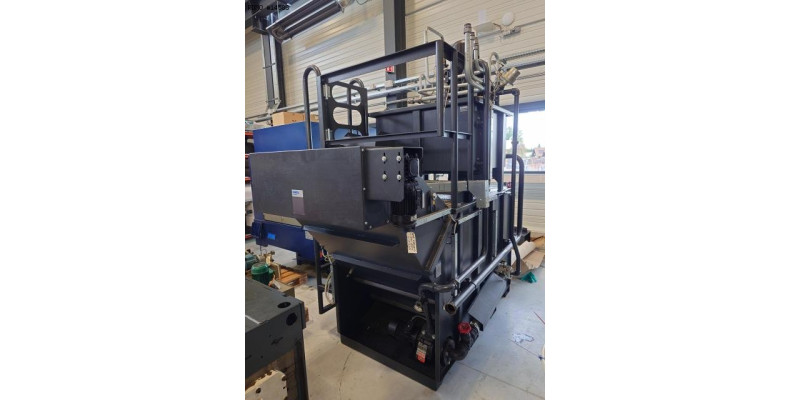

- Coolant tank : 2450 [l]
* with high-pressure pump : 50 [bars]
* with cooling unit for coolant
* with magnetic filter
* With washing gun
- Coolant through spindle
- Micro-lubrification coolant

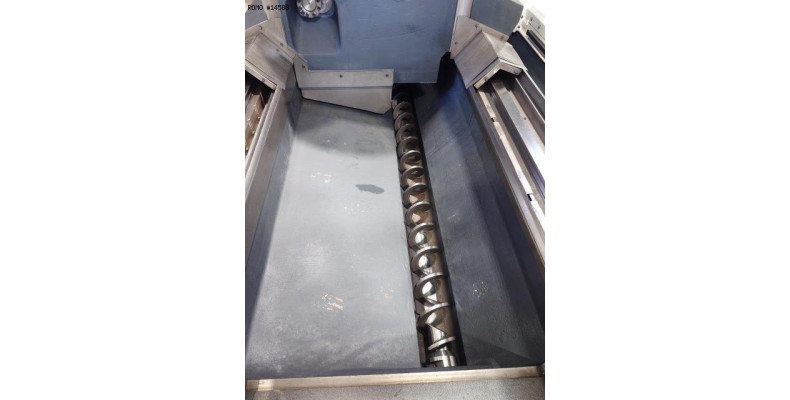

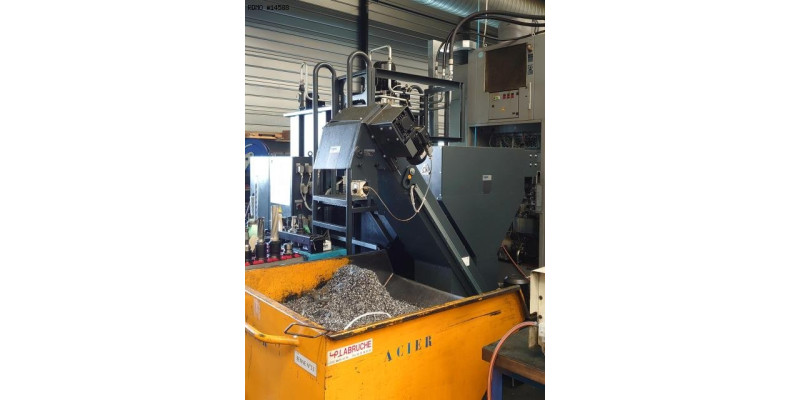

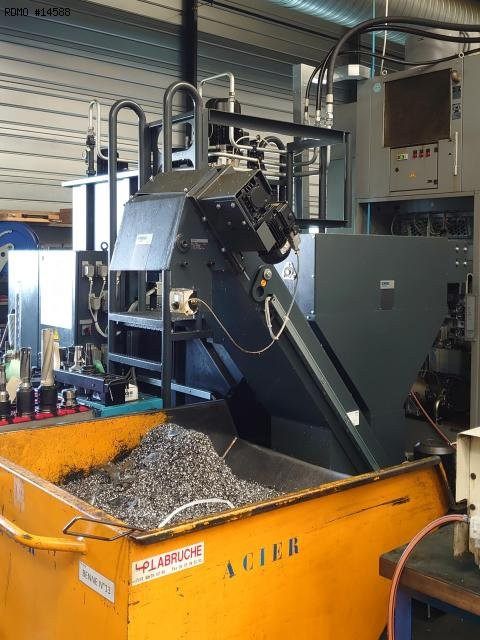

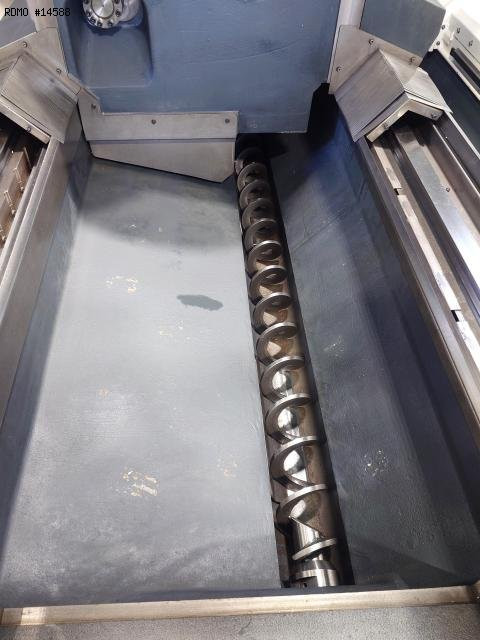

- Chips conveyor
- Oil mist extractor
- Spindle cooling unit
- Tool probe : Renishaw
- Workpiece probe : Renishaw
- Tool breakage detection
- Electric transformer
- Tool-holders
