HYUNDAI WIA KF5600II 3 axis

Name: Vertical machining center HYUNDAI WIA KF5600II 3 axes
Brand: HYUNDAI WIA
Availability: InStock

Milling Vertical machining center

15307

PDF datasheet to download:

Brand: HYUNDAI WIA

Model: KF5600II

Year: 2022

Serial: G2703-0303

15307

HYUNDAI WIA KF5600II 3 axis

Milling Vertical machining center

PDF datasheet to download:

Brand: HYUNDAI WIA

Model: KF5600II

Year: 2022

Serial: G2703-0303

Ask Price

Caracteristics

- Number of axes : 3
MILLING SPINDLE
- Tool holder type : BBT40
- Spindle power : 15 [kW]
- Spindle speeds : 8000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 1100/560/520 [mm]
TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 30
- Tool exchange time : 1.3 [sec]
TABLE
- Table dimensions : 1250X560 [mm]
- Maximum weight upon table : 1000 [kg]
- Distance table / spindle nose (min./max.) : 150-670 [mm]
- Distance table center / spindle axis (min./max.) : 635 [mm]
POWER SUPPLY
- Supply voltage : 440 [V]
- Total installed power : 26 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2830x2176 [mm]
- Machine height : 3028 [mm]
- Machine weight : 6500 [kg]

Equipment

- CNC : Fanuc i-Plus
- Interface : Ethernet / RS232 / USB / PCMCIA
- Coolant tank
* with high-pressure pump : 20 [bars]
- Chips conveyor
- Tool probe
- Electric transformer

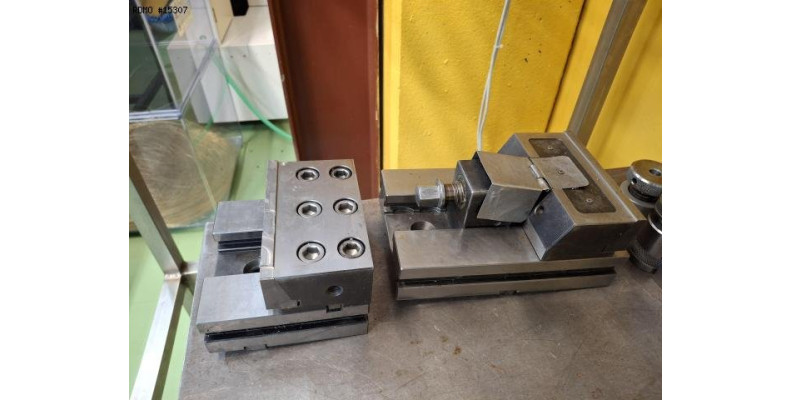

- Milling vice
