- Number of axes : 3
MILLING SPINDLE
- Tool holder type : BT30
- Spindle power : 2.2 / 3.7 [kW]
- Spindle speeds : 15.000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 300 / 250 / 250 [mm]
- Rapid traverses rates (X/Y/Z) : 48 / 48 / 48 [m/min]
TOOL CHANGER
- Auto. Tool Changer type : Parapluie
- Tool magazine capacity : 12
- Tool exchange time : 1.6 [sec]
PALLET CHANGER
- Table dimensions : 400 x 250 [mm]
- Pallets number : 2
- Maximum weight upon table : 100 [kg]
- Pallet exchange time : 3 [sec]
- Distance table / spindle nose (min./max.) : 180 - 430 [mm]
POWER SUPPLY
- Supply voltage : 380 [V]
- Total installed power : 21 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 2.690 x 1.570 [mm]
- Machine height : 2.420 [mm]
- Machine weight : 3.300 [kg]
Equipment

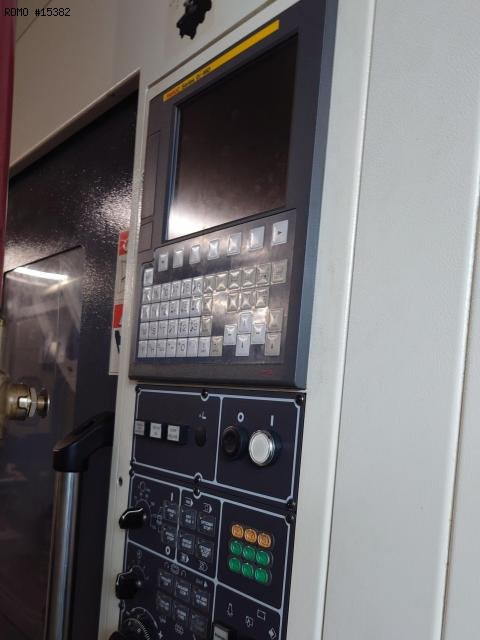

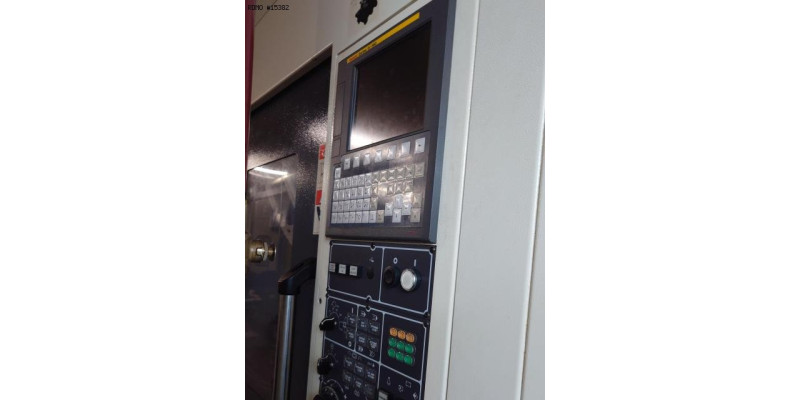

- CNC : Fanuc Oi-MD
- 3 colors status lamp
- Coolant tank

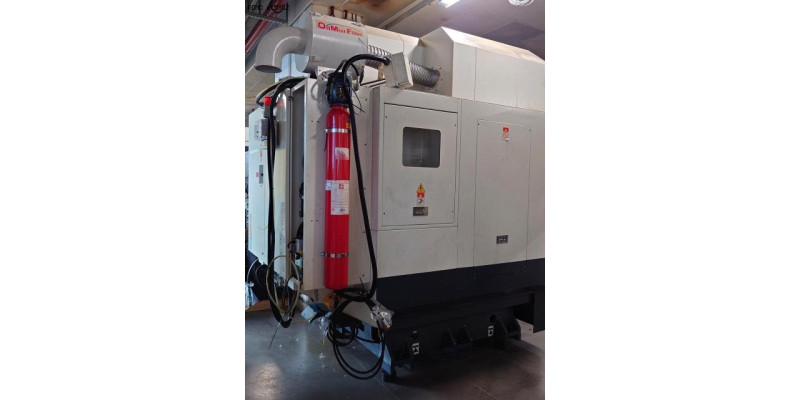

- Oil mist extractor
- Fire extinguisher *
* NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
