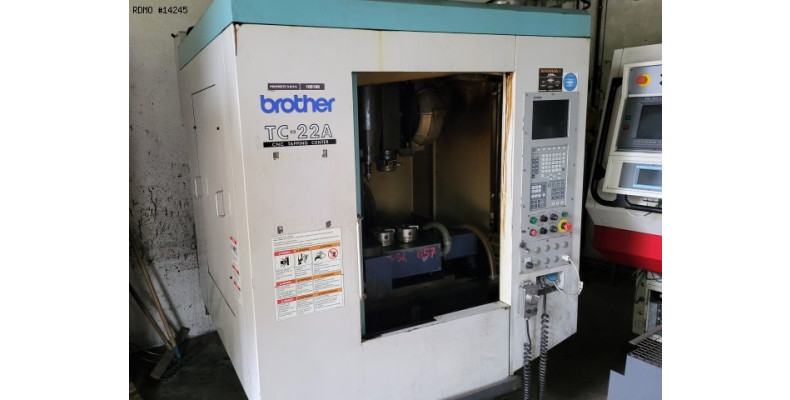

BROTHER TC22A 3 axis

Milling Vertical machining center

PDF datasheet to download:

Brand: BROTHER

Model: TC22A

Year: 1999

Serial: 111447

Ask Price

Caracteristics

- Number of axes : 3
MILLING SPINDLE
- Tool holder type : HSK40
- Spindle speeds : 12.000 [rpm]
- Spindle power : 7,6 [kVA]
LINEAR AXES
- Travels on X/Y/Z axes : 500 / 410 / 610 [mm]
TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur

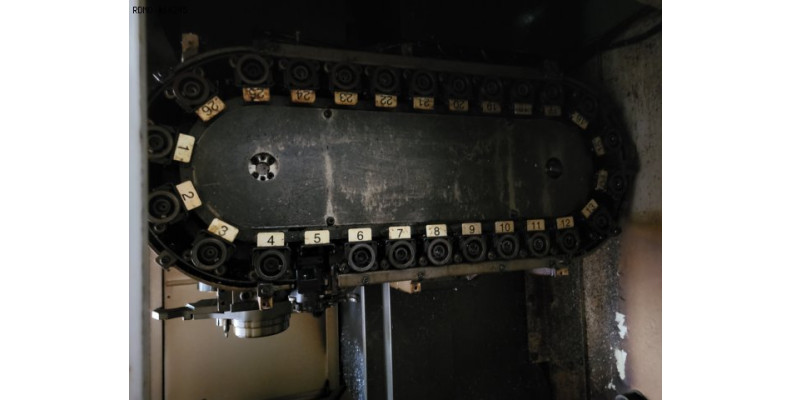

- Tool magazine capacity : 26
- Tool exchange time : 0.7 [sec]
TABLE
- Table dimensions : 650 x 400 [mm]
- Maximum weight upon table : 200 [kg]
POWER SUPPLY
- Supply voltage : 220 [V]
- Total installed power : 25 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 1.640 x 2.100 [mm]
- Machine height : 2.274 [mm]
- Machine weight : 2.250 [kg]
MACHINE HOURS
- Number of working hours : 9070 [h]

Equipment

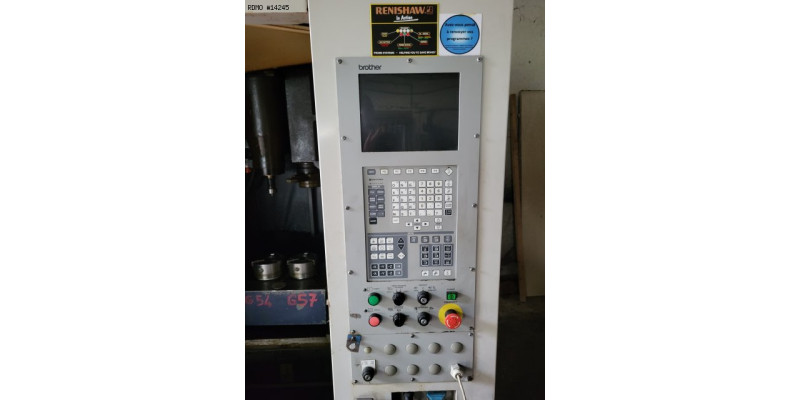

- CNC : BROTHER A00

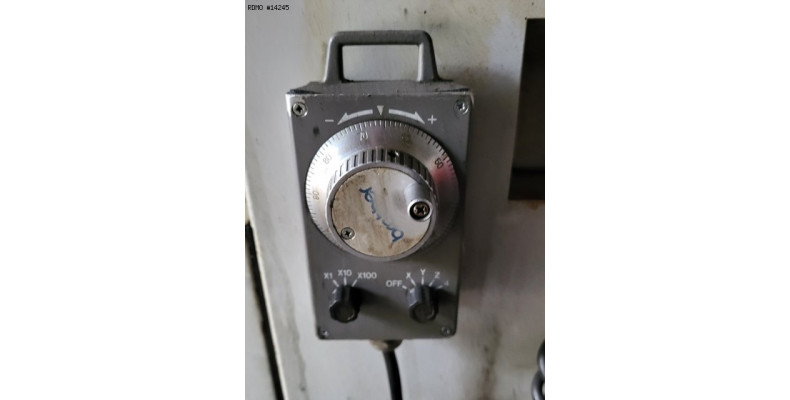

- Electronic handwheel
- Interface : RS232
- Workpiece probe : Renishaw OMP 60
- 4th axis : LEHMANN sans variateur

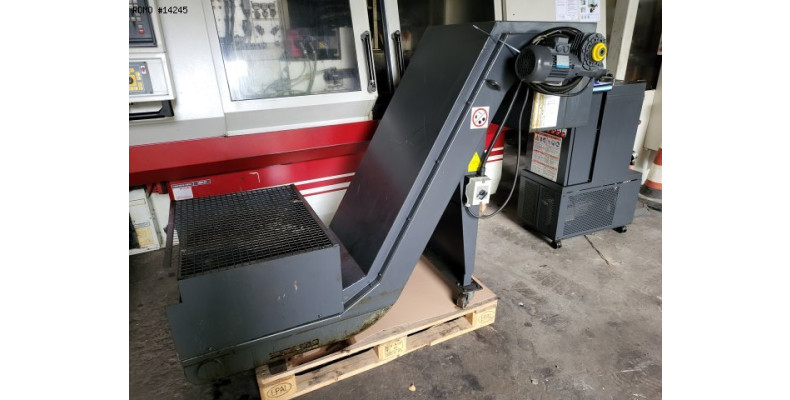

- Chips conveyor
- Coolant tank

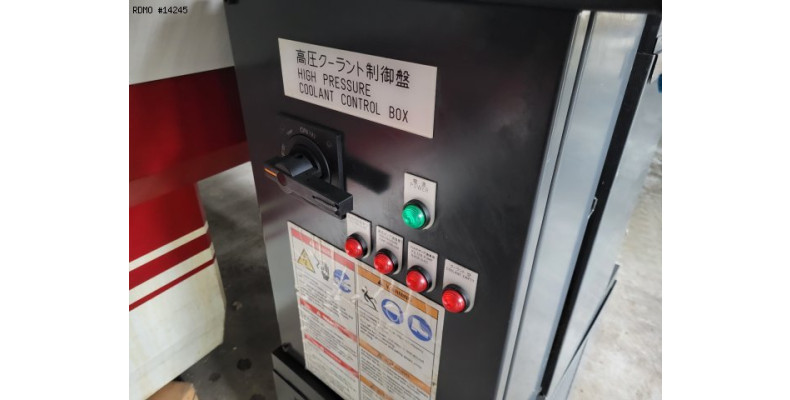

- Coolant through spindle : 70 [bars]
- Oil mist extractor : AAF Astrosta
- Electric transformer
- Tool-holders : 42
