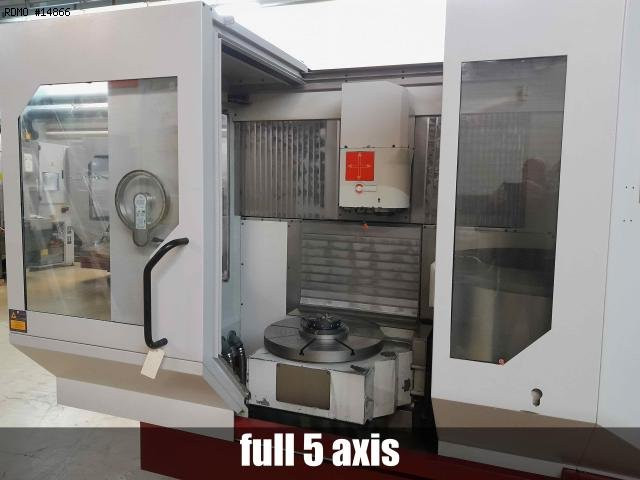

HERMLE U_740 5 axis

Milling Vertical machining center

14866

PDF datasheet to download:

Brand: HERMLE

Model: U_740

Year: 2007

Serial: 18541

14866

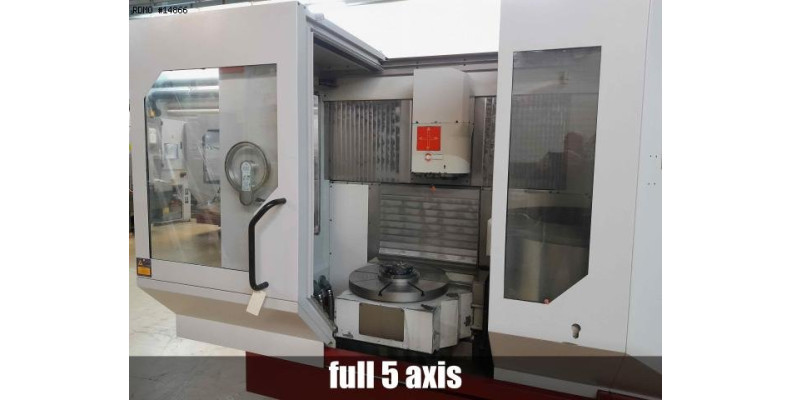

HERMLE U_740 5 axis

Milling Vertical machining center

PDF datasheet to download:

Brand: HERMLE

Model: U_740

Year: 2007

Serial: 18541

Ask Price

Caracteristics

- Number of axes : 5

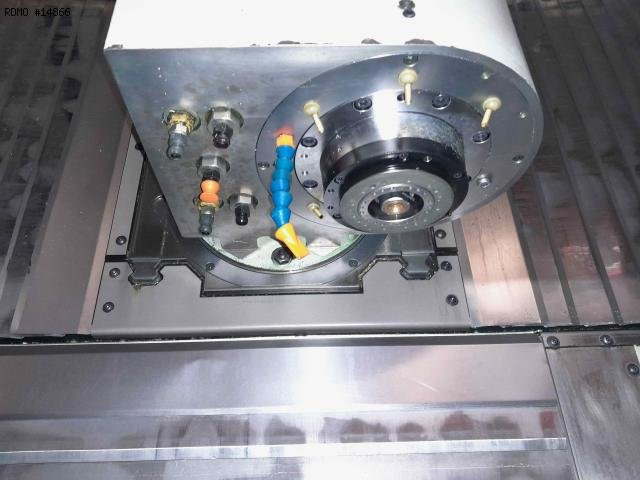

MILLING SPINDLE

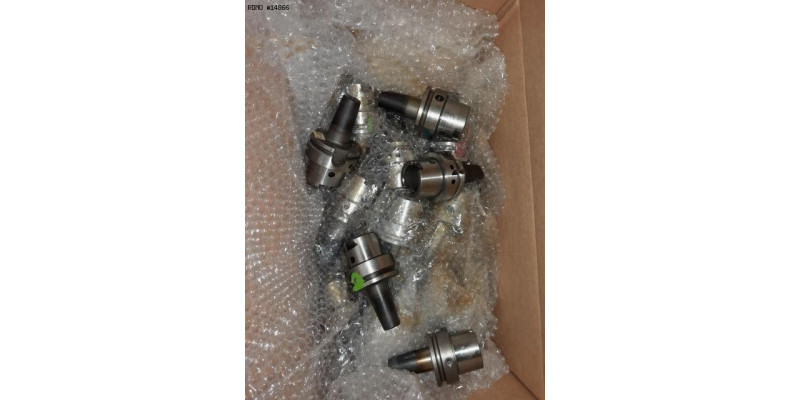

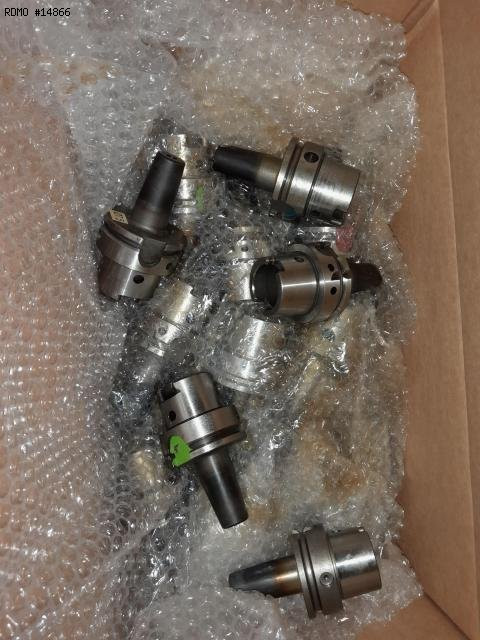

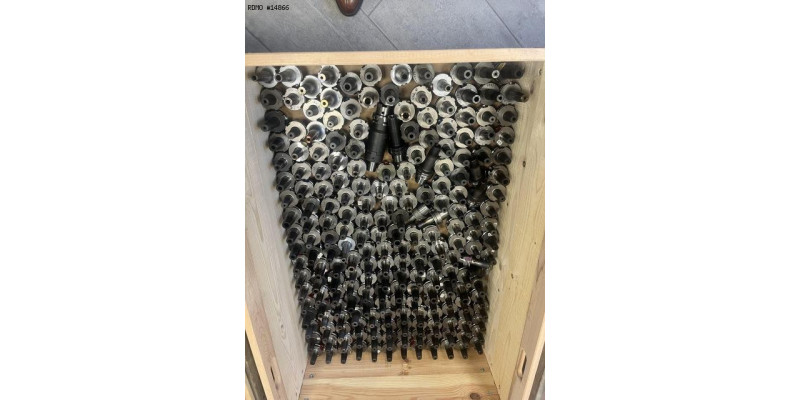

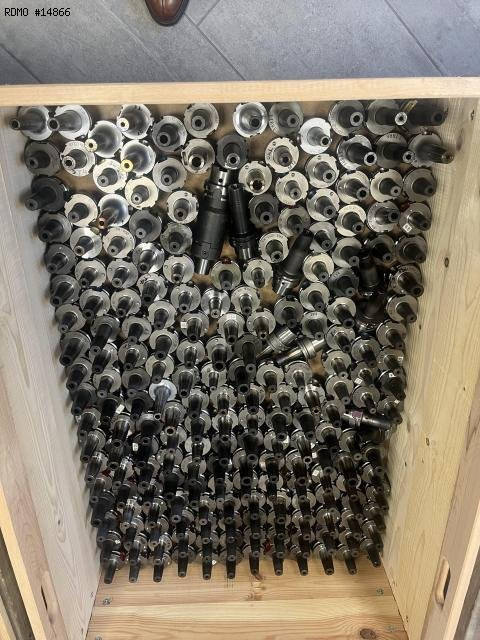

- Tool holder type : HSK63
- Spindle power : 17.5 [kW]
- Spindle speeds : 18.000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 915 / 500 / 500 [mm]
- Rapid traverses rates (X/Y/Z) : 30 / 30 / 20 [m/min]

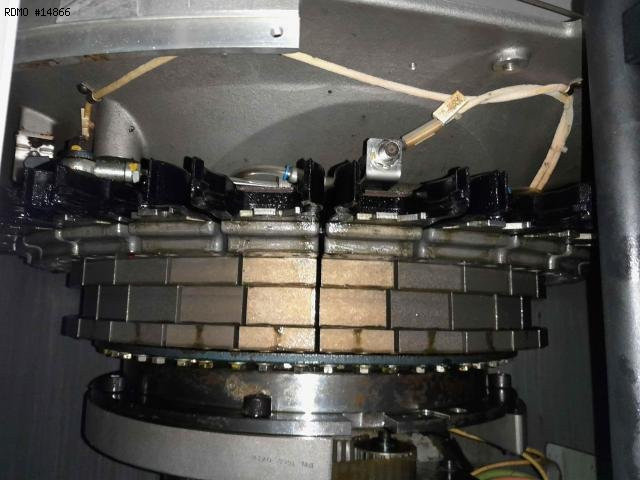

TOOL CHANGER

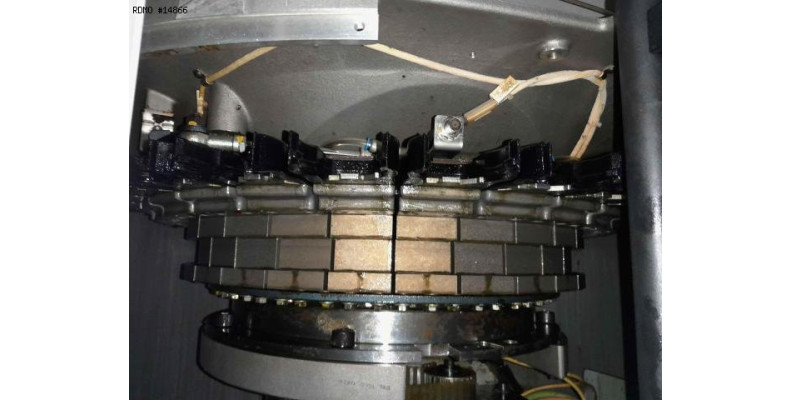

- Tool magazine capacity : 28

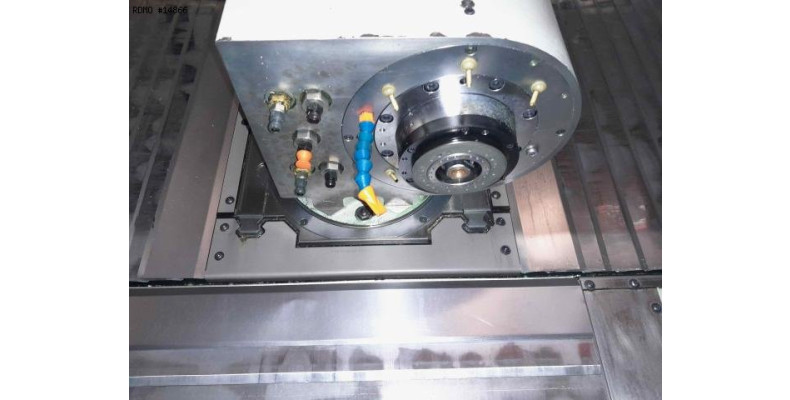

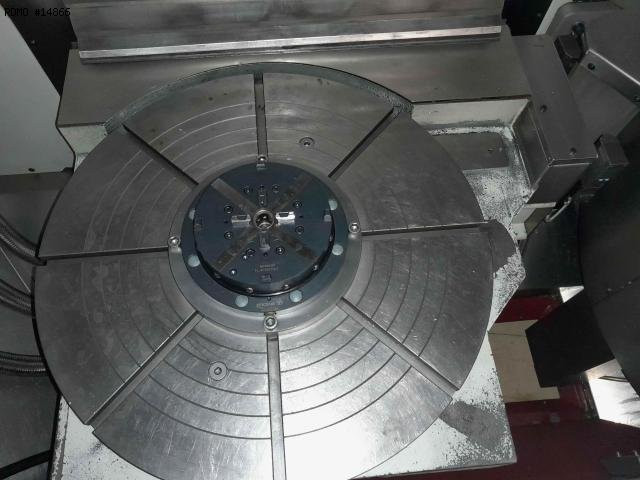

TABLE

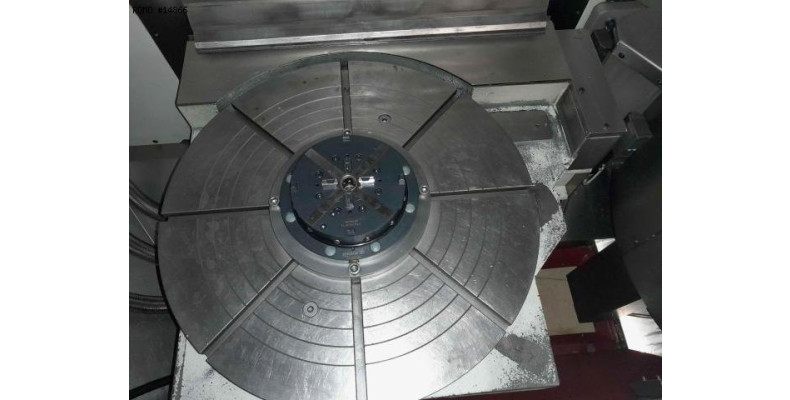

- Table dimensions : Ø 630 [mm]
- Maximum weight upon table : 500 [kg]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 26 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 3620 x 3160 [mm]
- Machine height : 3000 [mm]
- Machine weight : 7300 [kg]
MACHINE HOURS

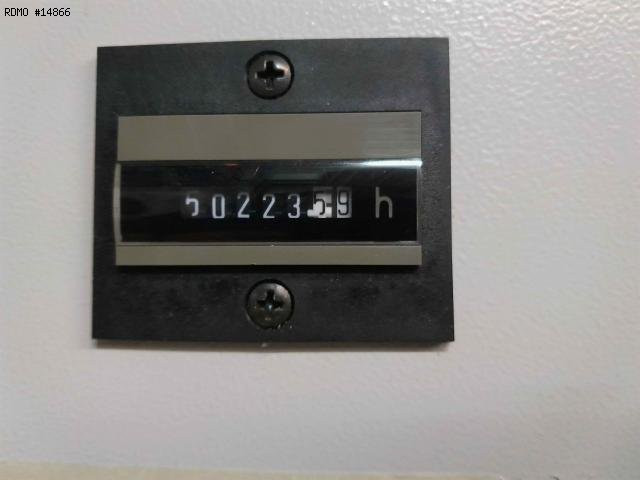

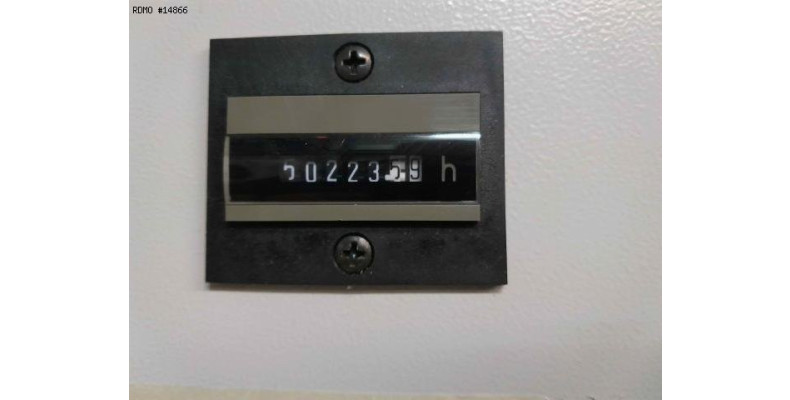

- Number of working hours : 50223 [h]

Equipment

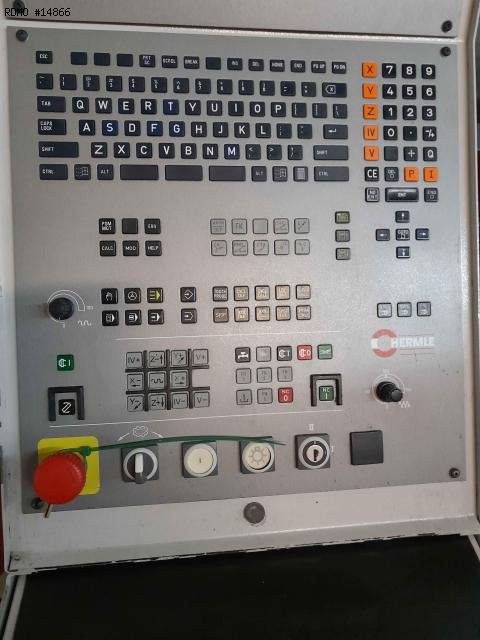

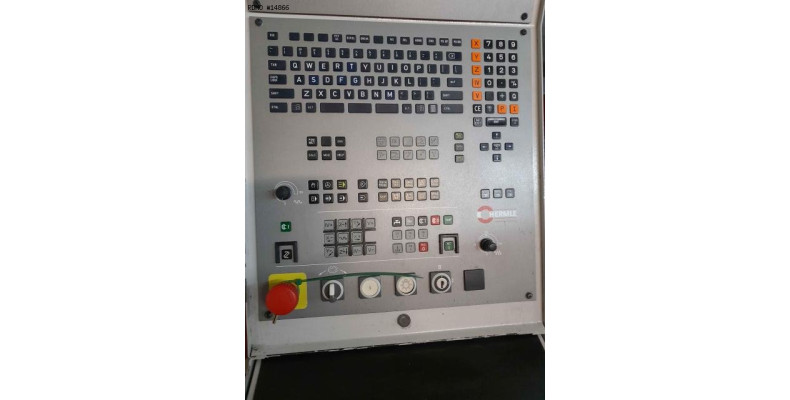

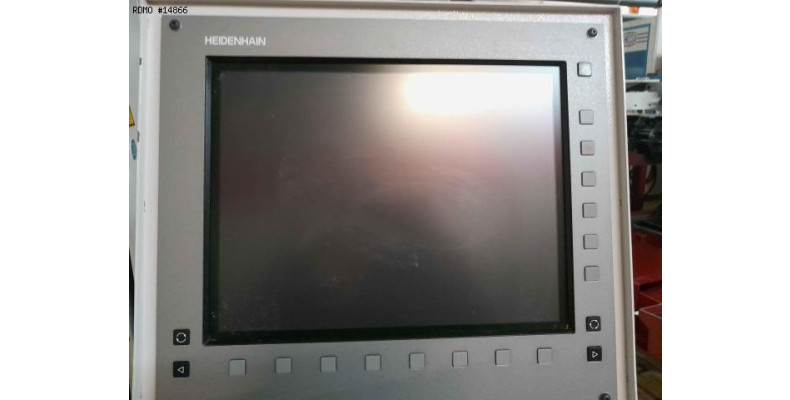

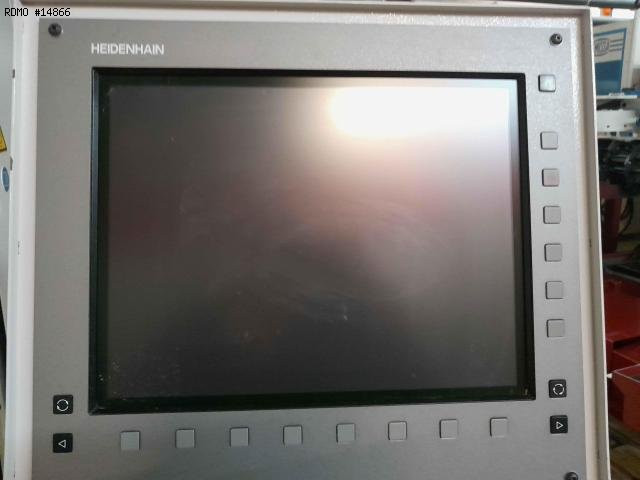

- CNC : Heidenhain iTNC 530
- Coolant tank

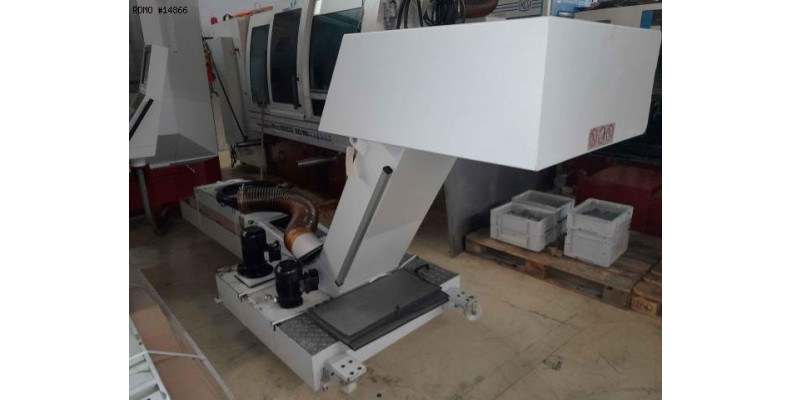

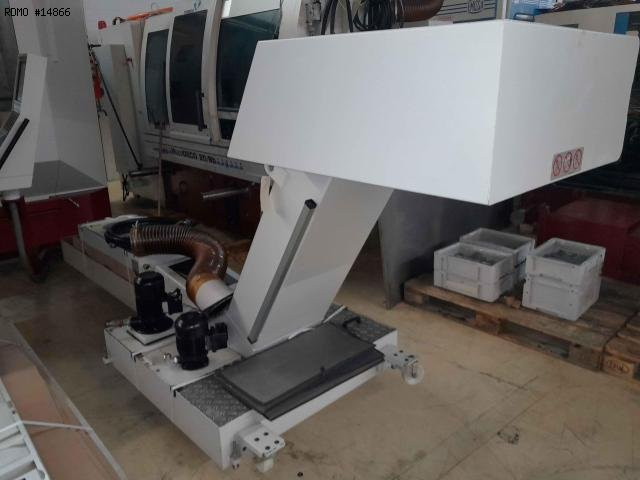

- Chips conveyor
- Oil mist extractor : ELBARON

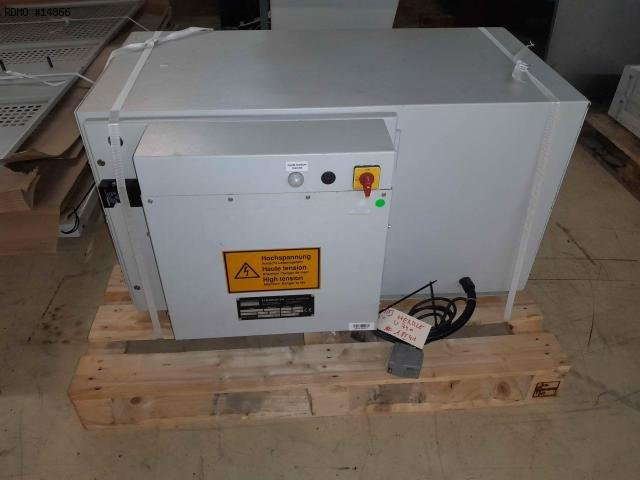

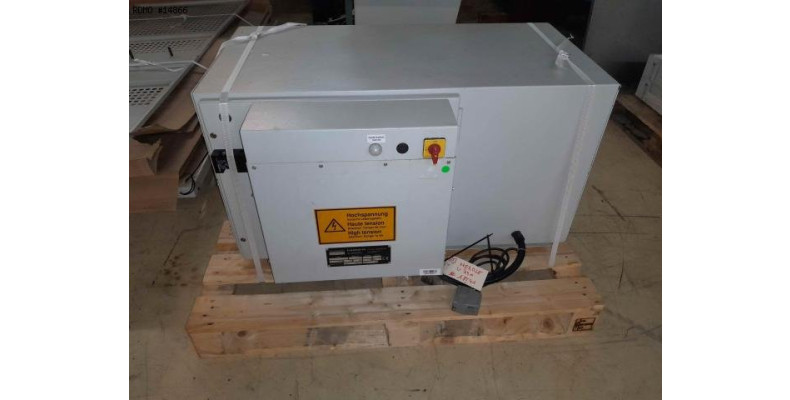

- Cooling unit : HYDRAC COOLING FLKS 170S/2.3W/TP/400-50/1/14

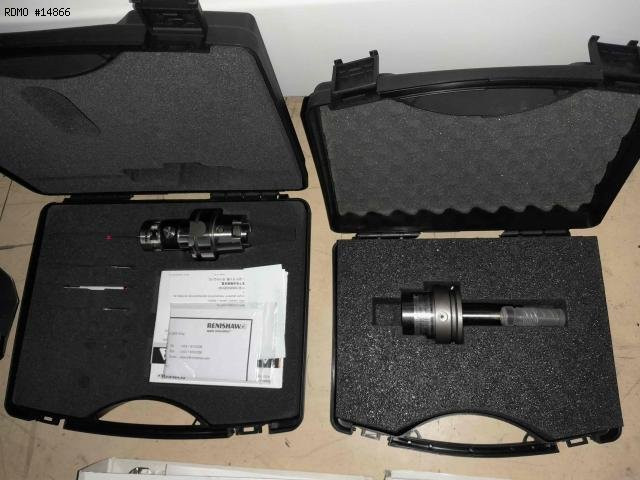

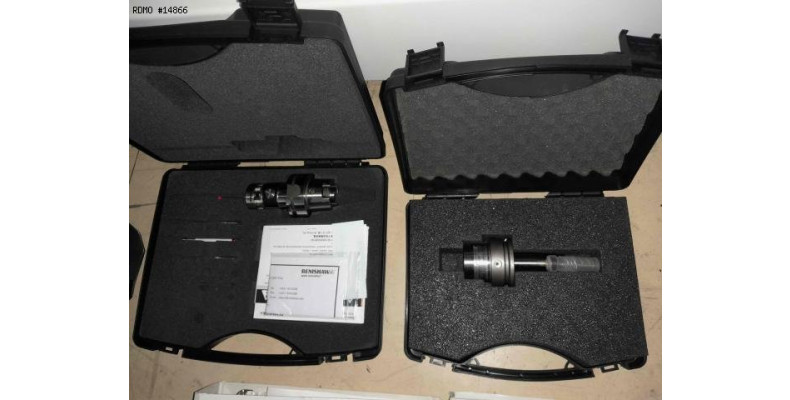

- Workpiece probe : Renishaw

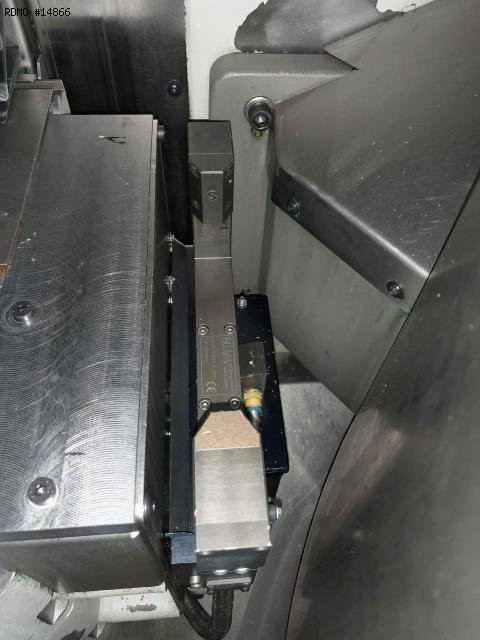

- Tool breakage detection : BLUM
