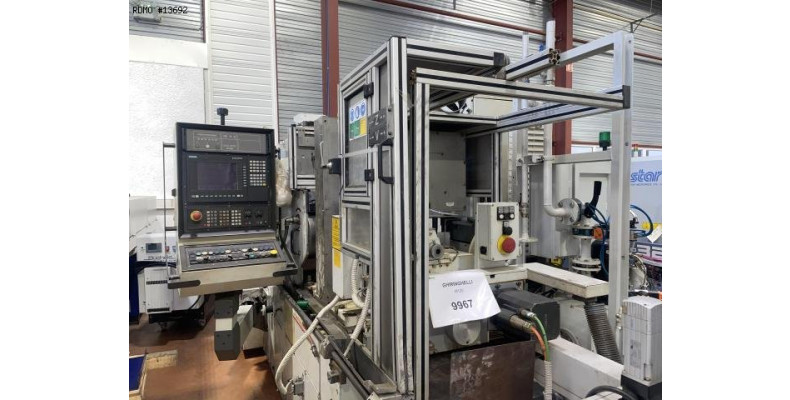

GHIRINGHELLI M120 3 axis

Grinding / sharpening / lapping / deburring / polishing Centerless grinder cnc

13692

PDF datasheet to download:

Brand: GHIRINGHELLI

Model: M120

Year: 2001

Serial: C609.01

13692

GHIRINGHELLI M120 3 axis

Grinding / sharpening / lapping / deburring / polishing Centerless grinder cnc

PDF datasheet to download:

Brand: GHIRINGHELLI

Model: M120

Year: 2001

Serial: C609.01

Ask Price

Caracteristics

- Workpiece diameter : 1 - 80 [mm]
- Max. plunge grinding length : 140 [mm]

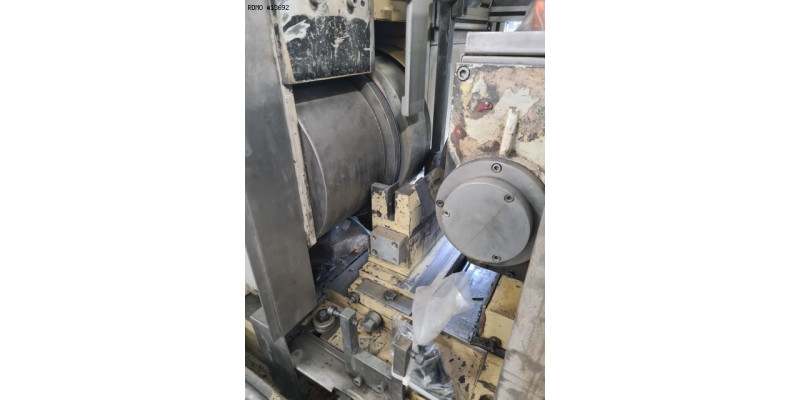

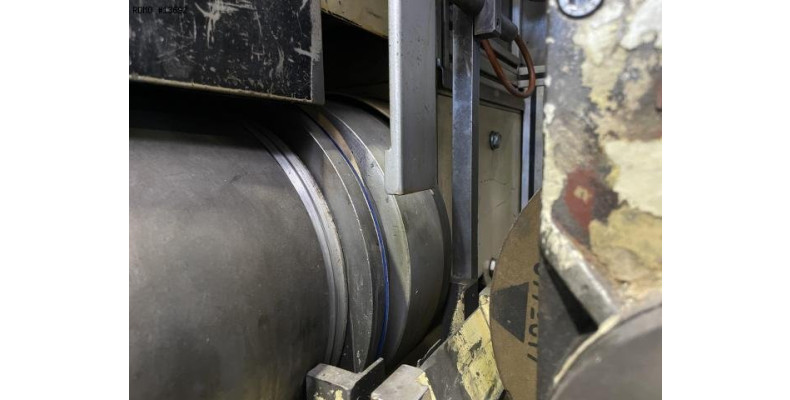

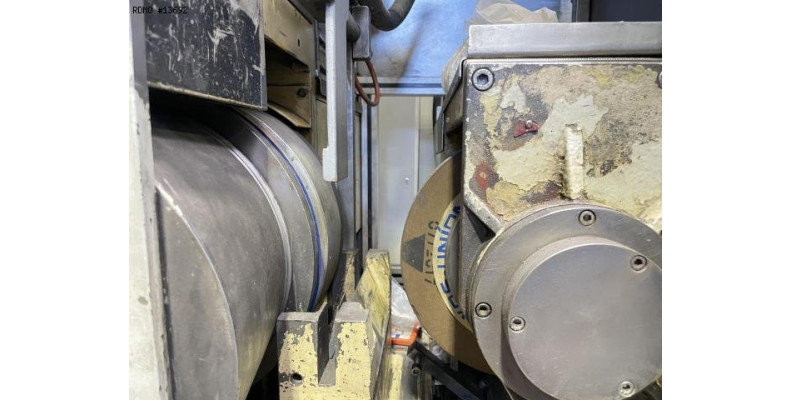

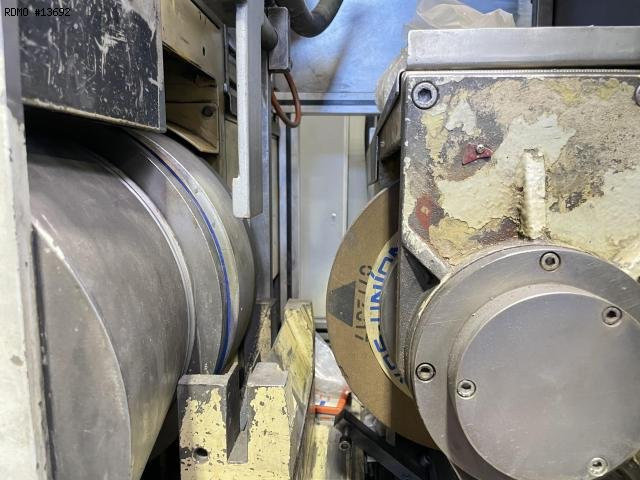

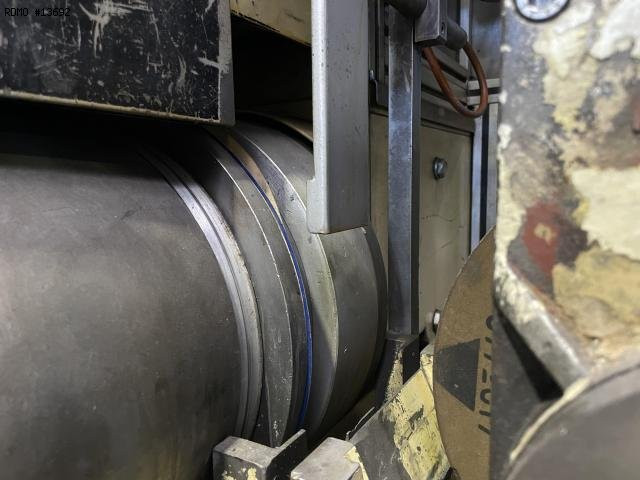

WORKING GRINDING WHEEL
- Minimum wheel diameter : 360 [mm]
- Maximum wheel diameter : 508 [mm]
- Grinding wheel width : 200 [mm]
- Peripheral speed : 45 [m/s]
- Grinding wheel speed : 1900 [rpm]

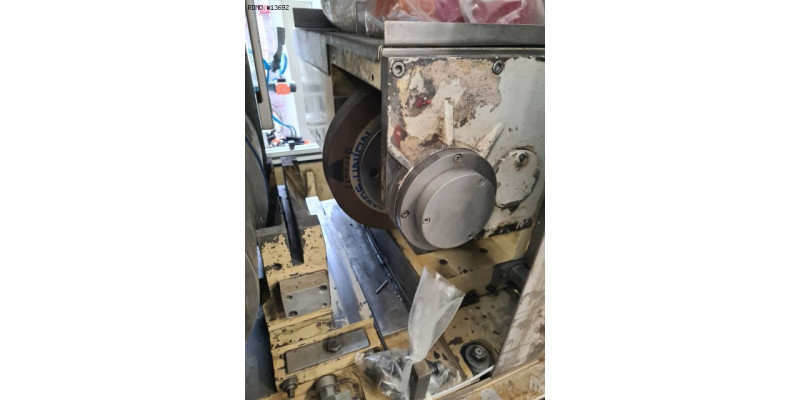

REGULATING WHEEL
- Grinding wheel width : 40 [mm]
- Wheel tilt : +/- 7 [°]
- Minimum diameter of drive wheel : 220 [mm]
- Maximum diameter of drive wheel : 305 [mm]
SUPPLY
- Installed power : 30 [kW]
- Supply : 400V, 50 [Hz]
DIMENSIONS
- Floor dimensions : 6000 x 4200 [mm]
- Machine height : 3000 [mm]
- Machine weight : 3100 [kg]

Equipment

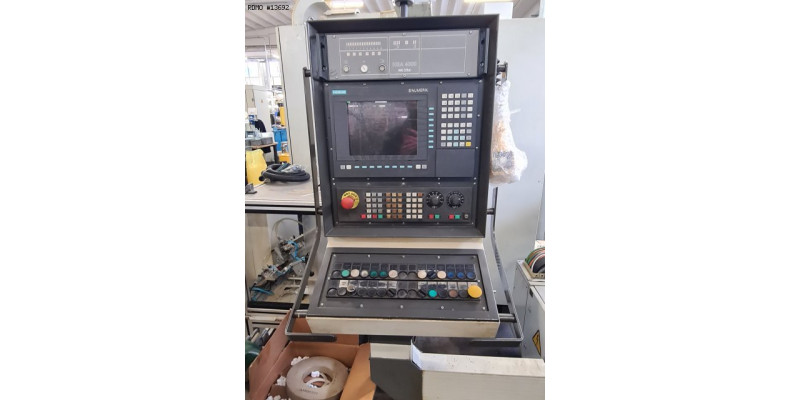

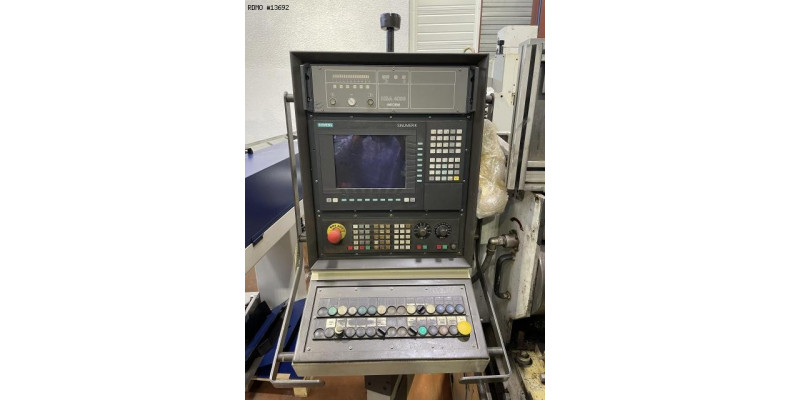

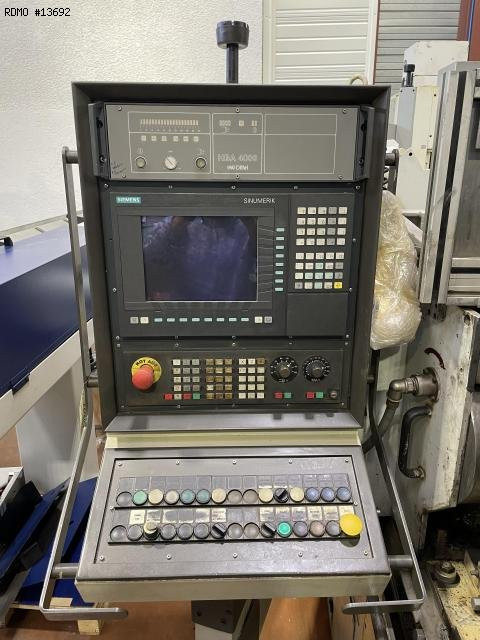

- CNC SIEMENS SINUMERIK 840 D

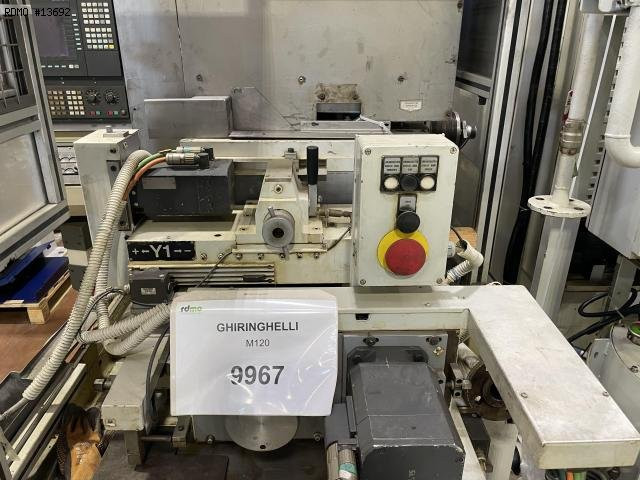

- Double slides for the plunge grinding wheel

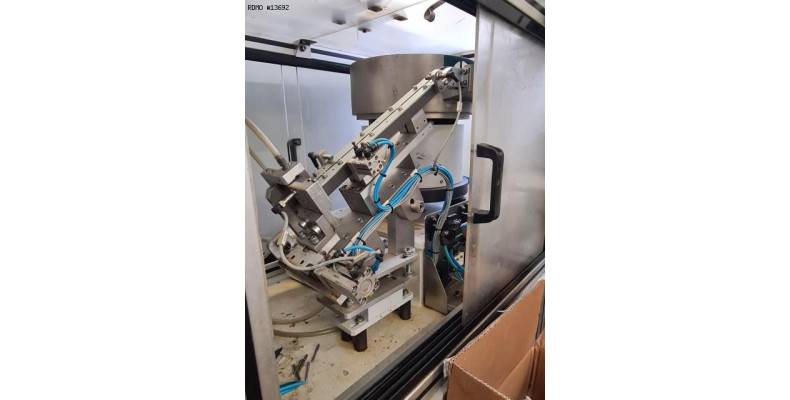

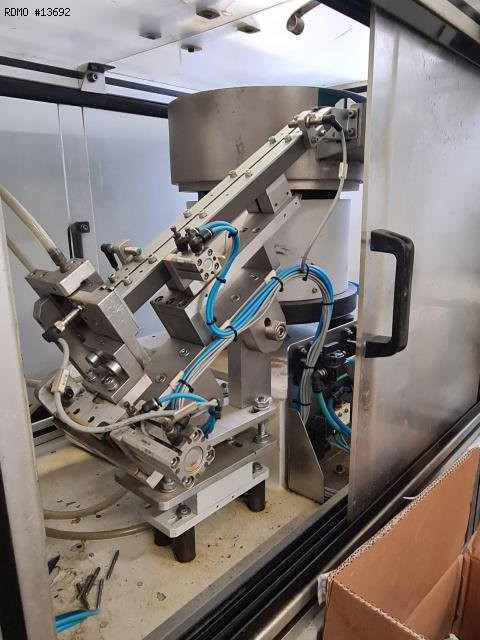

- Automatic loading through vibrating bowl
