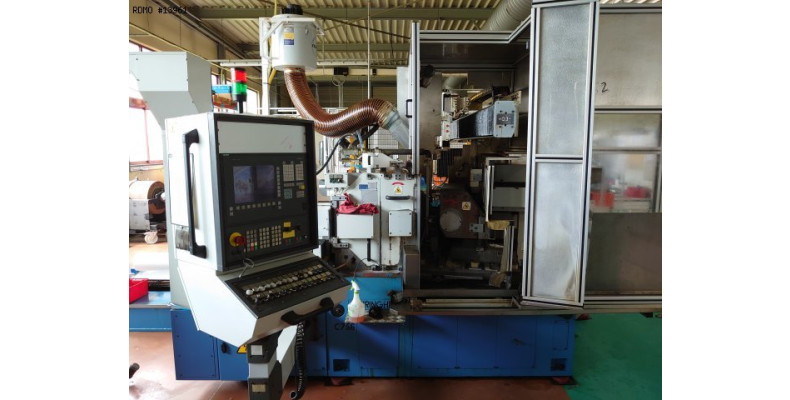

GHIRINGHELLI M150 SP610 5 axis

Grinding / sharpening / lapping / deburring / polishing Centerless grinder cnc

PDF datasheet to download:

Brand: GHIRINGHELLI

Model: M150 SP610

Year: 2007

Serial: C756.07

Ask Price

Caracteristics

- Min/max. grindable diameter: 1 - 100 [mm]
- Max. length of the workpiece when plunging : 140 [mm]
- Min/max work wheel diameter: 440/610 [mm]
- Max. working wheel width: 80 [mm]
- Peripheral grinding wheel speed: 50 [m/s]
- Speed with new work wheel: 1565 [rpm]
- Min./max. drive wheel diameter: 220/305 [mm]
- Max. width of drive wheel: 67 [mm]
- Max. drive wheel inclination: +/- 7 [°]
- Drive wheel speed during machining: 0/140 [rpm]
- Drive wheel speed in dressing: 200 [rpm]
- Total installed power: 41 [kW]
- Dimensions : 5920 x 5071 x 2500 [mm]
- Net weight: 7000 [kg]

Equipment

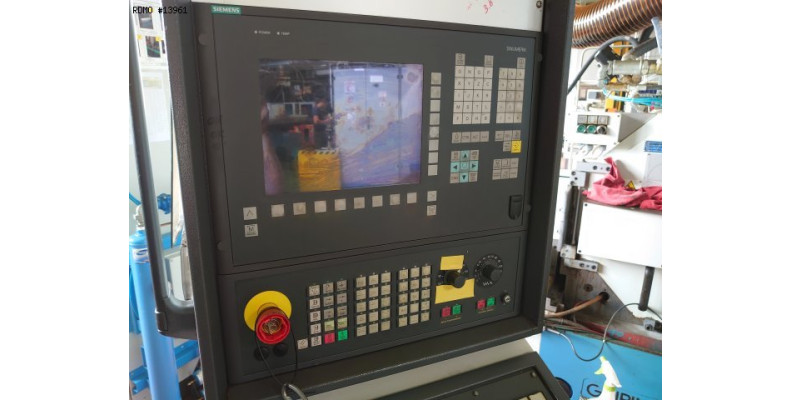

- CNC SIEMENS 840D control
- 5 numerical axis (1 for working grinding wheels facing device, 2 for driving grinding wheels facing device, 1 for upper slide, 1 for lower slide)
- working grinding wheels facing device by diamond knurling wheel
- driving grinding wheels facing device by diamond center
- automatic parts feed bowl

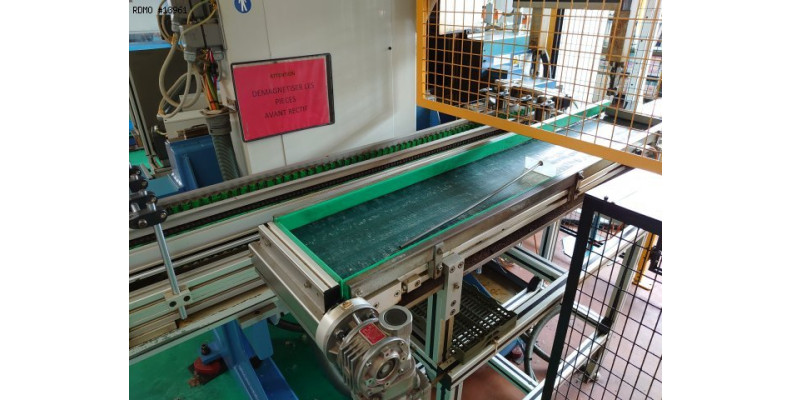

- parts conveying strip
