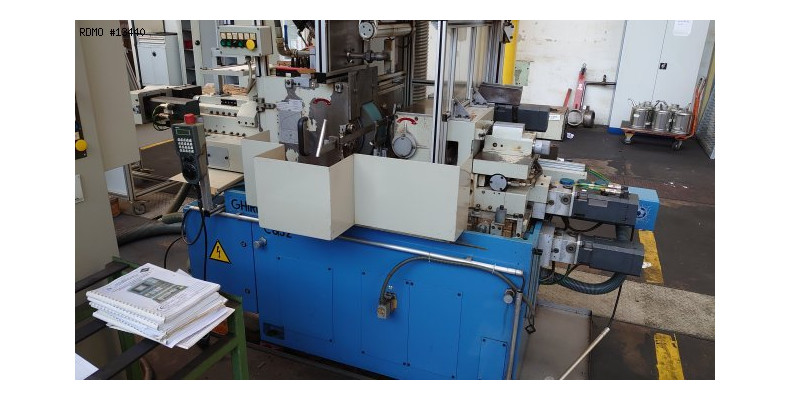

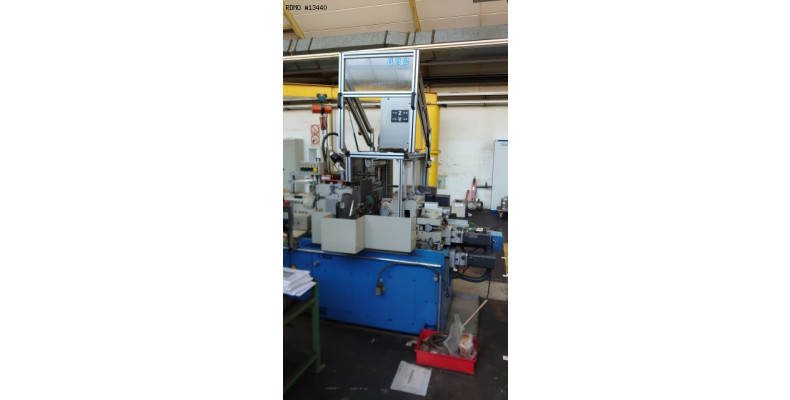

GHIRINGHELLI M100 3 axis

Grinding / sharpening / lapping / deburring / polishing Centerless grinder cnc

13440

PDF datasheet to download:

Brand: GHIRINGHELLI

Model: M100

Year: 2002

Serial: C632.01

13440

GHIRINGHELLI M100 3 axis

Grinding / sharpening / lapping / deburring / polishing Centerless grinder cnc

PDF datasheet to download:

Brand: GHIRINGHELLI

Model: M100

Year: 2002

Serial: C632.01

Ask Price

Caracteristics

- Workpiece diameter : 0.5 - 40 [mm]
- Max. plunge grinding length : 95 [mm]

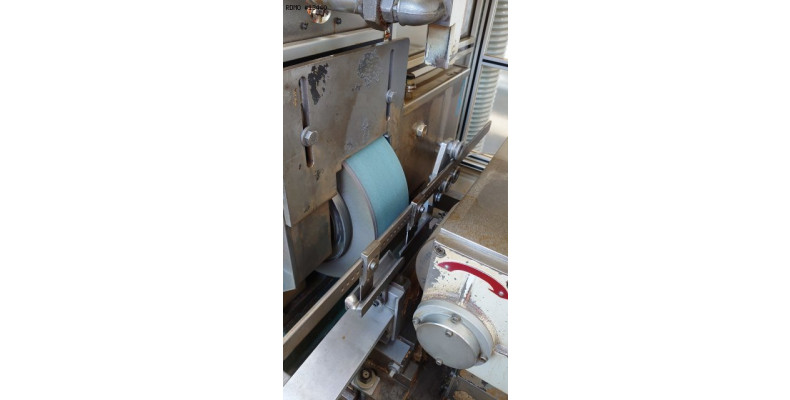

WORKING GRINDING WHEEL
- Grinding wheel diameter : 350 [mm]
- Grinding wheel width : 120 [mm]
- Peripheral speed : 50 [m/s]
- Grinding wheel speed : 2352 [rpm]
- Minimum wheel diameter : 260 [mm]
- Maximum wheel diameter : 406 [mm]
REGULATING WHEEL
- Grinding wheel width : 120 [mm]
- Wheel tilt : +/- 6 [°]
- Min. diameter of drive wheel : 150 [mm]
- Maximum diameter of drive wheel : 205 [mm]
SUPPLY
- Installed power : 21 [kW]
- Supply : 400V, 50 [Hz]
DIMENSIONS
- Floor dimensions : 3965 x 3103 [mm]
- Machine height : 2.100 [mm]
- Machine weight : 2.800 [kg]

Equipment

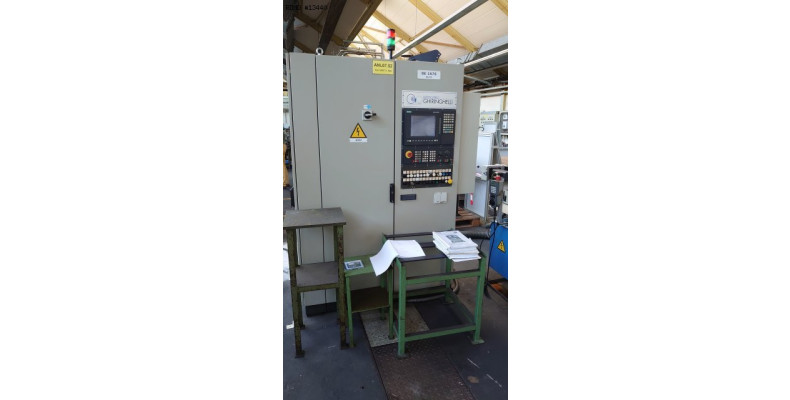

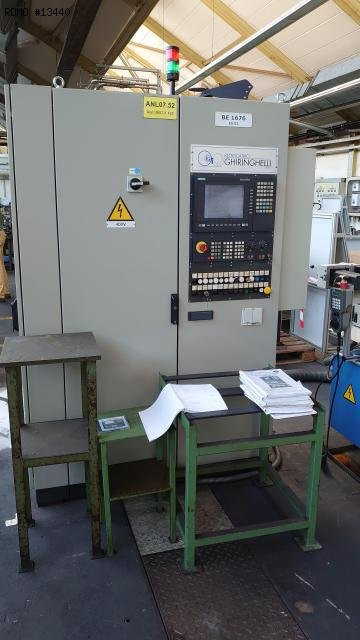

- CNC : SIEMENS SINUMERIK 840 D
