- Number of axes : 5
- Number of spindles : 1
MAIN SPINDLE
- Max. bar diameter : 23 [mm]
- C axis indexing precision : 0.001 [°]

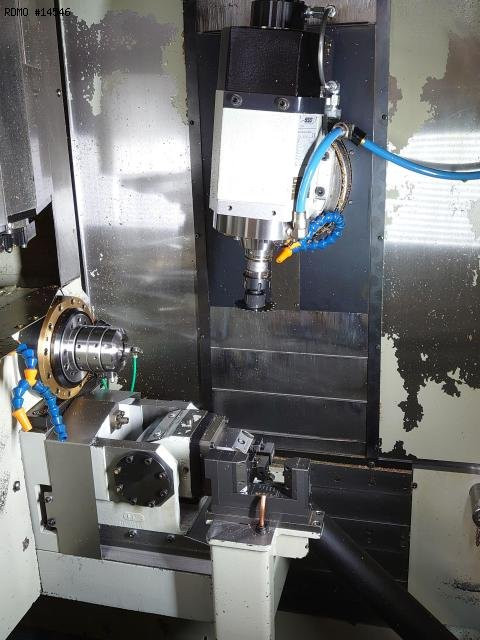

TURNING-MILLING SPINDLE
- X/Z stroke : 250/300 [mm]
- Y stroke : 200 [mm]
- B Axis stroke : -15/+100 [°]
- B axis indexing precision : 0.001 [°]
- Tool type : HSK E40
- Spindle speeds : 30000 [rpm]
- Spindle power : 10 [kW]
TOOL CHANGER
- Auto. Tool Changer type : Parapluie
- Tool magazine capacity : 24
POWER SUPPLY
- Supply voltage : 400 [V]
- Machine weight : 1700 [kg]
- Number of working hours : 26237 [h]
Equipment

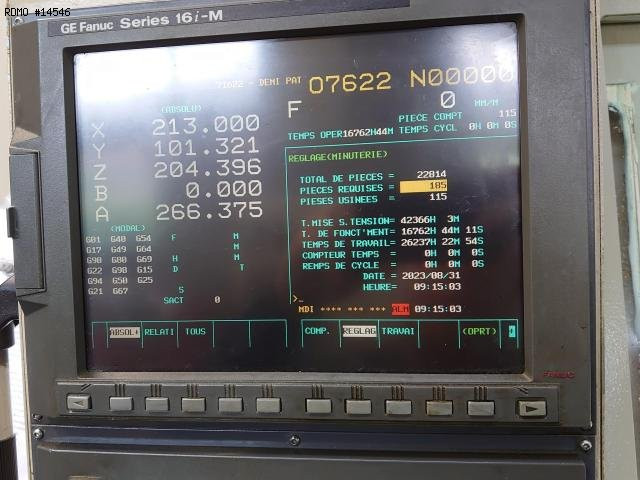

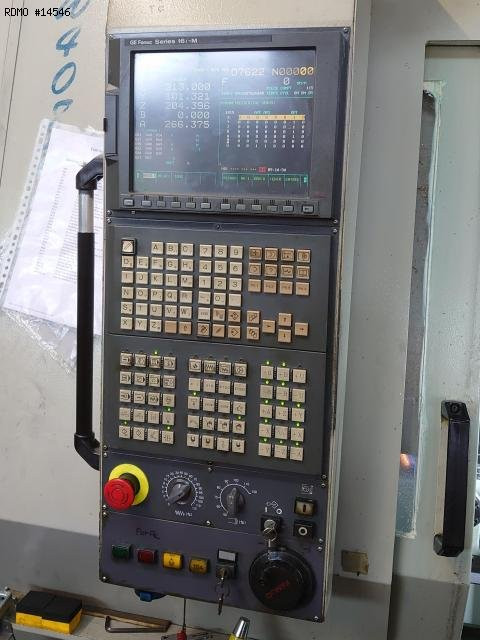

- CNC : Fanuc 16i-M
- Coolant tank
* Coolant through spindle
- Oil mist extractor : Elbaron RON 60 SEC
- Spindle cooling unit
- Unit for 6th face machining
- Bar loader : Willemin
- Collet chuck
