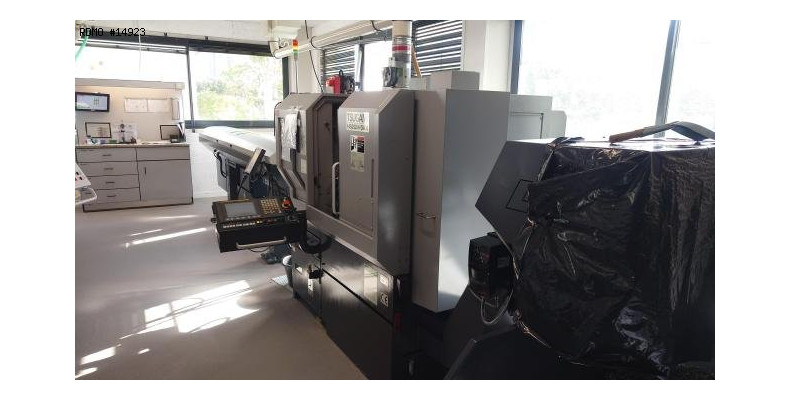

- Number of axes : 5
- Number of spindles : 2
MAIN SPINDLE
- Spindle power : 2.2 / 3.7 [kW]
- Spindle speeds : 200 - 10000 [rpm]
- Max. bar diameter : 20 [mm]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Spindle power : 1.5 / 2.2 [kW]
- Spindle speeds : 200 - 12000 [rpm]
- C axis indexing precision : 0.001 [°]
* X/Z stroke : 488 / 335 [mm]
TURNING-MILLING SPINDLE
- X/Z stroke : 289 / 305 [mm]
- Y stroke : 75 (-15/+60) [mm]
- B Axis stroke : 180 [°]
- B axis indexing precision : 0.001 [°]
- Tool type : 15T
- Spindle speeds : 300 - 30000 [rpm]
- Spindle power : 3.7 / 5.5 [kW]
TOOL CHANGER
- Auto. Tool Changer type : Parapluie
- Tool magazine capacity : 24
WEIGHT & DIMENSIONS
- Machine weight : 2.700 [kg]
MACHINE HOURS
- Number of hours under power : 52500 [h]
- Number of working hours : 11639 [h]
Equipment
- CNC : Fanuc 31i Model B5
- 3 colors status lamp
- Coolant tank : Hydro-Fluid HP3
* with high-pressure pump : 40 - 170 [bars]
- Chips conveyor
- Spindle cooling unit
- Parts catcher
- Parts conveying strip
- Bar loader : LNS EXPRESS 220 S2

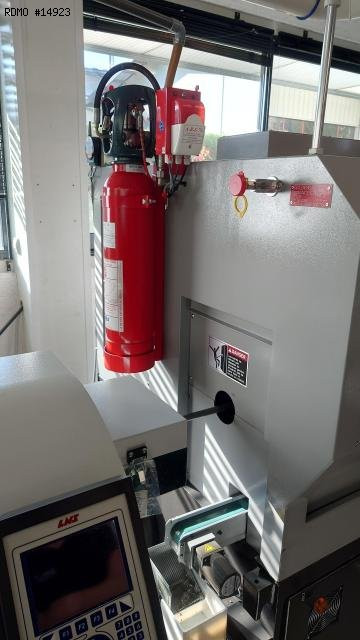

- Fire extinguisher *
* NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
- Electric transformer
