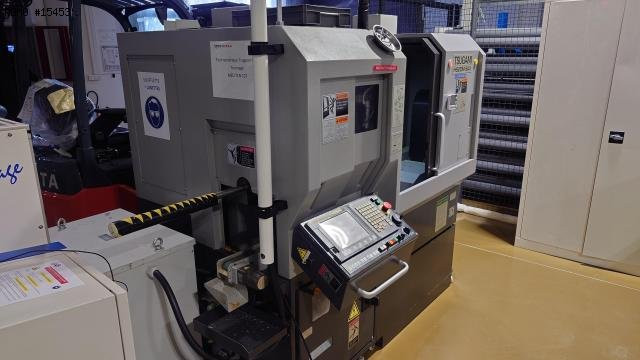

TSUGAMI HS20M-5AX 5 axis

Name: Turn-mill center TSUGAMI HS20M-5AX 5 axes
Brand: TSUGAMI
Availability: InStock

Turning Turn-mill center

15453

PDF datasheet to download:

Brand: TSUGAMI

Model: HS20M-5AX

Year: 2015

Serial: 17014A

15453

TSUGAMI HS20M-5AX 5 axis

Turning Turn-mill center

PDF datasheet to download:

Brand: TSUGAMI

Model: HS20M-5AX

Year: 2015

Serial: 17014A

Ask Price

Caracteristics

- Number of axes : 5
- Number of spindles : 2
MAIN SPINDLE
- Spindle power : 2.2 / 3.7 [kW]
- Spindle speeds : 200 - 10000 [rpm]
- Max. bar diameter : 20 [mm]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Spindle power : 1.5 / 2.2 [kW]
- Spindle speeds : 200 - 12000 [rpm]
- C axis indexing precision : 0.001 [°]
* X/Z stroke : 488 / 335 [mm]
TURNING-MILLING SPINDLE
- X/Z stroke : 289 / 305 [mm]
- Y stroke : 75 (-15/+60) [mm]
- B Axis stroke : 180 [°]
- B axis indexing precision : 0.001 [°]
- Tool type : 15T
- Spindle speeds : 300 - 30000 [rpm]
- Spindle power : 3.7 / 5.5 [kW]
TOOL CHANGER
- Auto. Tool Changer type : Parapluie
- Tool magazine capacity : 24
SECONDARY OPERATION
Number of positions : 4
Number of positions : 3
WEIGHT & DIMENSIONS
- Machine weight : 2.700 [kg]
MACHINE HOURS
- Number of hours under power : 12249 [h]
- Number of working hours : 1816 [h]

Equipment

- CNC : Fanuc 31i Model B5
- 3 colors status lamp
- Coolant tank
- Parts catcher
- Parts conveying strip
- Electric transformer
