Brand: INDEX
Model: G250
Year: 2006
Serial: 540047
Brand: INDEX
Model: G250
Year: 2006
Serial: 540047

Caracteristics & Equipment

Caracteristics
- Number of axes : 9
- Number of spindles : 2
MAIN SPINDLE
- Spindle nose : ISO 7027/1
- Spindle power : 31/ 42.5 [kW]
- Spindle speeds : 3500 [rpm]
- Max. bar diameter : 90 [mm]
- Max. diameter on bench : 560 [mm]
- Max. chuck diameter : 250 [mm]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Spindle nose : ISO 702/1-6
- Spindle power : 31 / 42,5 [kW]
- Spindle speeds : 3500 [rpm]
- Max. bar diameter : 90 [mm]
- C axis indexing precision : 0,001 [°]
- Travel : 1.430 [mm]

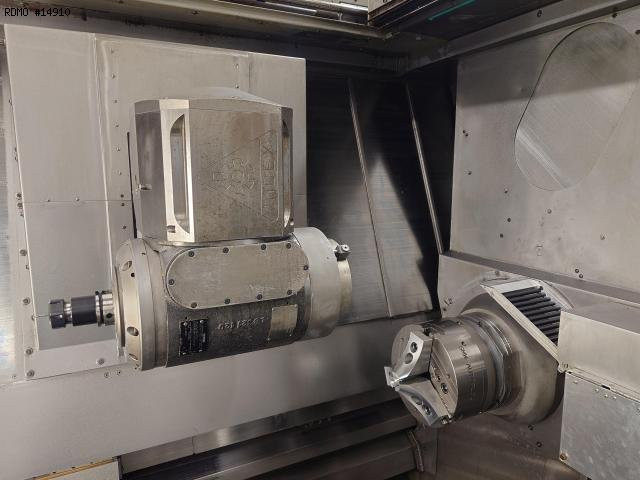

TURNING-MILLING SPINDLE
- X/Z stroke : 300 x 1.400 [mm]
- Y stroke : 285 [mm]
- B Axis stroke : 360 [°]
- Tool type : HSK63
- Spindle speeds : 12.000 [rpm]
- Spindle power : 27,5 [kW]
TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 2 x 40

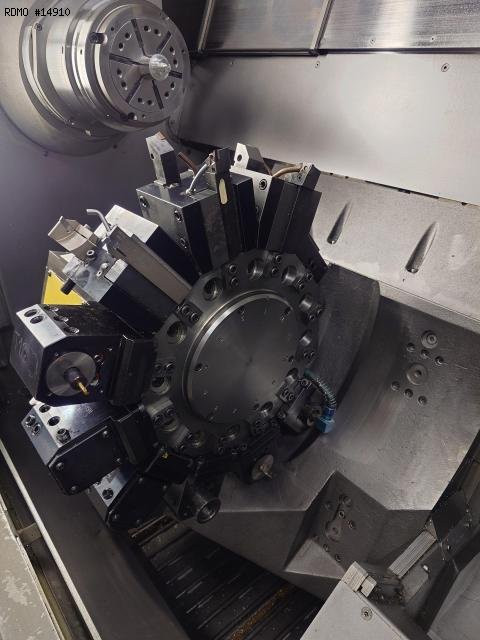

LOWER TURRET
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 140 x 1400 [mm]
- Tool type : VDI 40
- Live tools speed : 6.000 [rpm]
- Live tools power : 9,4 [kW]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 73 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 5.460 x 2.560 [mm]
- Machine height : 2.400 [mm]
- Machine weight : 13.500 [kg]
MACHINE HOURS
- Number of hours under power : 42.100 [h]
Equipment
- CNC : C200-4D (SIEMENS 840D Powerline)
- Linear scales
- Coolant tank : KNOLL
* with high-pressure pump : 80 [bars]
* with vacuum pump filtering unit
- Chips conveyor
- Oil mist extractor
- Spindle cooling unit
- Tool breakage detection
- Visiport windows
- Parts conveying strip
